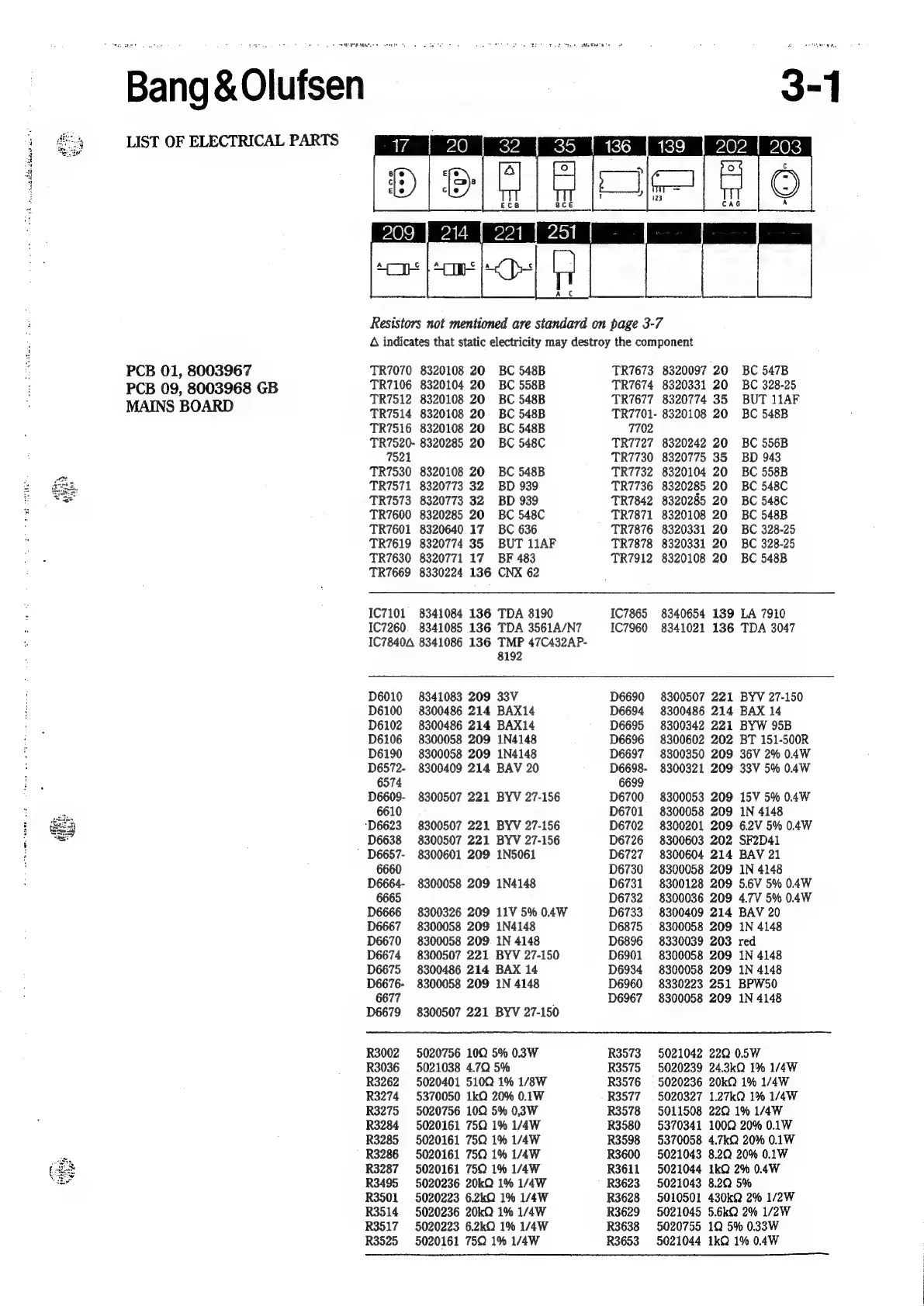

Bang & Olufsen. 3-1
LIST OF ELECTRICAL PARTS
Resistors not mentioned are standard on page 3-7
A indicates that static electricity may destroy the component
PCB 01, 8003967 TR7070 8320108 20 BC 548B TR7673 8320097 20 BC 547B
09, 8003968 GB TR7106 8320104 20 BC 558B TR7674 8320331 20 BC 328-25
ewe BO ARD TR7512 8320108 20 BC 548B TR7677 8320774 35 BUT 11AF
TR7514 8320108 20 BC 548B TR7701- 8320108 20 BC 548B
TR7516 8320108 20 BC 548B 7702
TR7520- 8320285 20 BC 548C TR7727 8320242 20 BC 556B
7521 TR7730 8320775 35 BD 943
TR7530 8320108 20 BC 548B TR7732 8320104 20 BC 558B
TR7571 8320773 32 BD 939 TR7736 8320285 20 BC 548C
TR7573 8320773 32 BD 939 TR7842 8320285 20 BC 548C
TR7600 8320285 20 BC 548C TR7871 8320108 20 BC 548B
TR7601 8320640 17 BC 636 TR7876 8320331 20 BC 328-25
TR7619 8320774 35 BUT 11AF TR7878 8320331 20 BC 328-25
TR7630 8320771 17 BF 483 TR7912 8320108 20 BC 548B
TR7669 8330224 136 CNX 62
IC7101 8341084 136 TDA 8190 IC7865 8340654 139 LA 7910
1C7260. 8341085 136 TDA 3561A/N7 1C7960 8341021 136 TDA 3047
1C7840A 8341086 136 TMP 47C432AP-
8192
D6010 8341083 209 33V D6690 8300507 221 BYV 27-150
D6100 8300486 214 BAX14 D6694 8300486 214 BAX 14
D6102 8300486 214 BAX14 D6695 8300342 221 BYW 95B
D6106 8300058 209 1N4148 D6696 8300602 202 BT 151-500R
D6190 8300058 209 1N4148 D6697 8300350 209 36V 2% 0.4W
D6572- 8300409 214 BAV 20 D6698- 8300321 209 33V 5% 0.4W
6574 6699
D6609- 8300507 221 BYV 27-156 D6700 8300053 209 15V 5% 0.4W
6610 D6701 8300058 209 1N 4148
‘D6623 8300507 221 BYV 27-156 D6702 8300201 209 6.2V 5% 0.4W
D6638 8300507 221 BYV 27-156 D6726 8300603 202 SF2D41
D6657- 8300601 209 1NS5061 D6727 8300604 214 BAV 21
6660 D6730 8300058 209 1N 4148
D6664- 8300058 209 1N4148 D6731 8300128 209 5.6V 5% 0.4W
6665 D6732 8300036 209 4.7V 5% 0.4W
D6666 8300326 209 11V 5% 0.4W D6733 8300409 214 BAV 20
D6667 8300058 209 1N4148 D6875 8300058 209 1N 4148
D6670 8300058 209 1N 4148 D6896 8330039 203 red
D6674 8300507 221 BYV 27-150 D6901 8300058 209 IN 4148
D6675 8300486 214 BAX 14 D6934 8300058 209 1N 4148
D6676- 8300058 209 1N 4148 D6960 8330223 251 BPWS0
6677 D6967 8300058 209 1N 4148
D6679 8300507 221 BYV 27-150
R3002 5020756 10Q 5% 0.3W R3573 5021042 220 0.5W
R3036 5021038 4.70 5% R3575 5020239 24.3kO 1% 1/4W
R3262 5020401 510Q 1% 1/8W R3576 = 5020236 20kQ 1% 1/4W
R3274 5370050 1kQ 20% 0.1W R3577 = 5020327 127kQ 1% 1/4W
R3275 5020756 10Q 5% 0,3W R3578 5011508 22Q 1% 1/4W
R3284 5020161 752 1% 1/4W R3580 5370341 1002 20% 0.1W
R3285 5020161 75Q 1% 1/4W R3598 5370058 4.7kQ 20% 0.1W
R3286 5020161 75Q 1% 1/4W R3600 5021043 8.2Q 20% 0.1W
R3287 5020161 752 1% 1/4W R3611 5021044 1kQ 2% 0.4W
R3495 5020236 20kQ 1% 1/4W R3623 5021043 8.2Q 5%
R3501 5020223 6.2kQ 1% 1/4W R3628 5010501 430kQ 2% 1/2W
R3514. 5020236 20kQ 1% 1/4W R3629 5021045 5.6kQ 2% 1/2W
R3517 5020223 6.2kQ 1% 1/4W R3638 5020755 12 5% 0.33W
R3525 5020161 75Q 1% 1/4W R3653 55021044 1kQ 1% 0.4W
