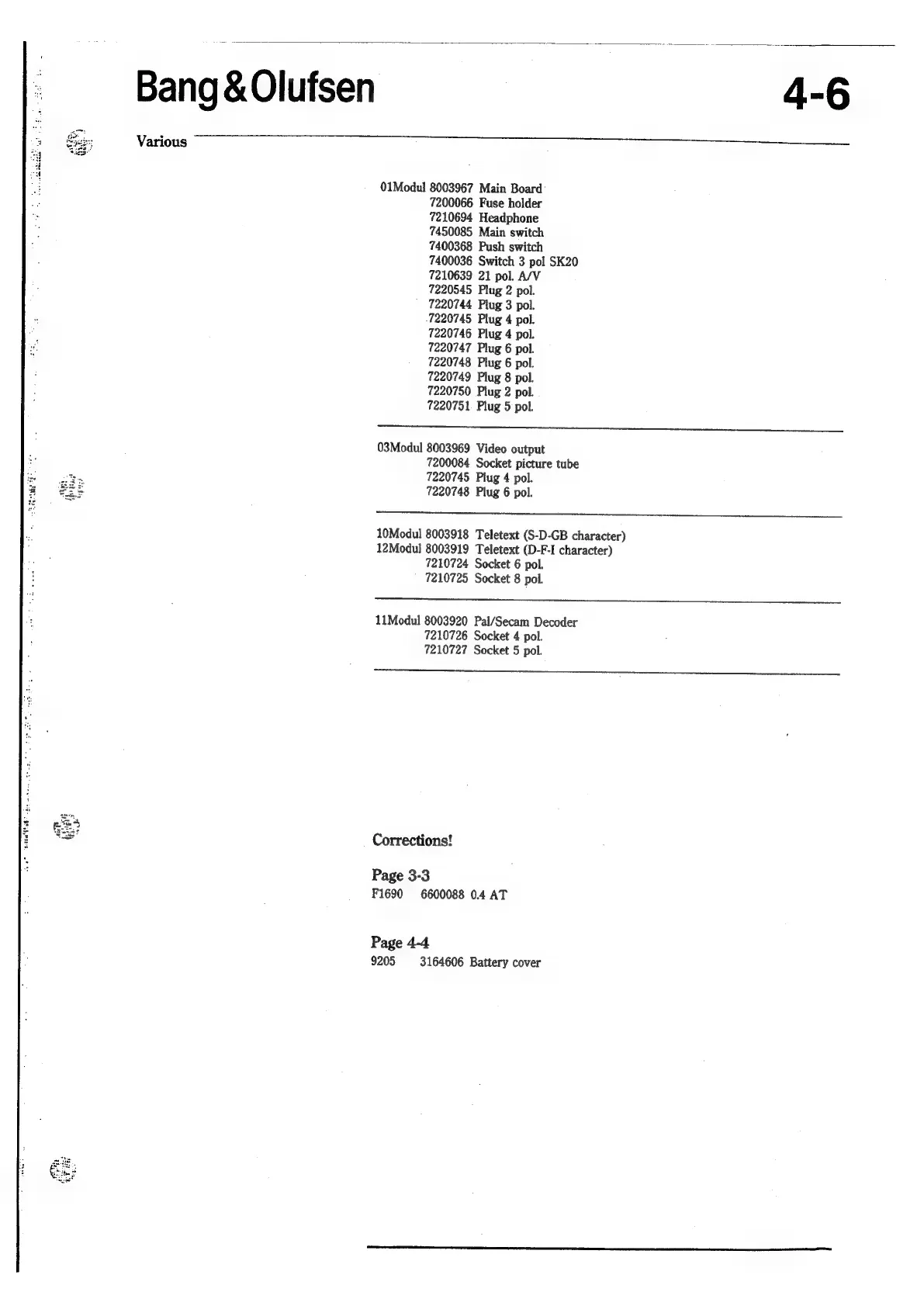

Bang & Olufsen Beolink 1000 - Page 38

Bang & Olufsen 4-6
Various
01Modul 8003967 Main Board
7200066 Fuse holder
7210694 Headphone
7450085 Main switch
7400368 Push switch
7400036 Switch 3 pol SK20
7210639 21 pol. A/V
7220545 Plug 2 pol.
7220744 Plug 3 pol.
7220745 Plug 4 pol.
7220746 Plug 4 pol.
7220747 Plug 6 pol.
7220748 Plug 6 pol.
7220749 Plug 8 pol.
7220750 Plug 2 pol.
7220751 Plug 5 pol.
—_———__—————————————
03Modul 8003969 Video output
7200084 Socket picture tube
7220745 Plug 4 pol.
7220748 Plug 6 pol.
a
re
ne
sy
ee
10Modul 8003918 Teletext (S-D-GB character)
12Modul 8003919 Teletext (D-F-I character)
7210724 Socket 6 pol.
7210725 Socket 8 pol.
—_—_—---Oo-
ne
11Modul 8003920 Pal/Secam Decoder
7210726 Socket 4 pol.
7210727 Socket 5 pol.
rr
rrr
ree
Corrections!
Page 3-3
F1690 6600088 0.4 AT
Page 4-4
9205 3164606 Battery cover
