Bannon 57937 - Mounting Bracket Installation

Page 9 of 21
MOUNTING BRACKET INSTALLATION

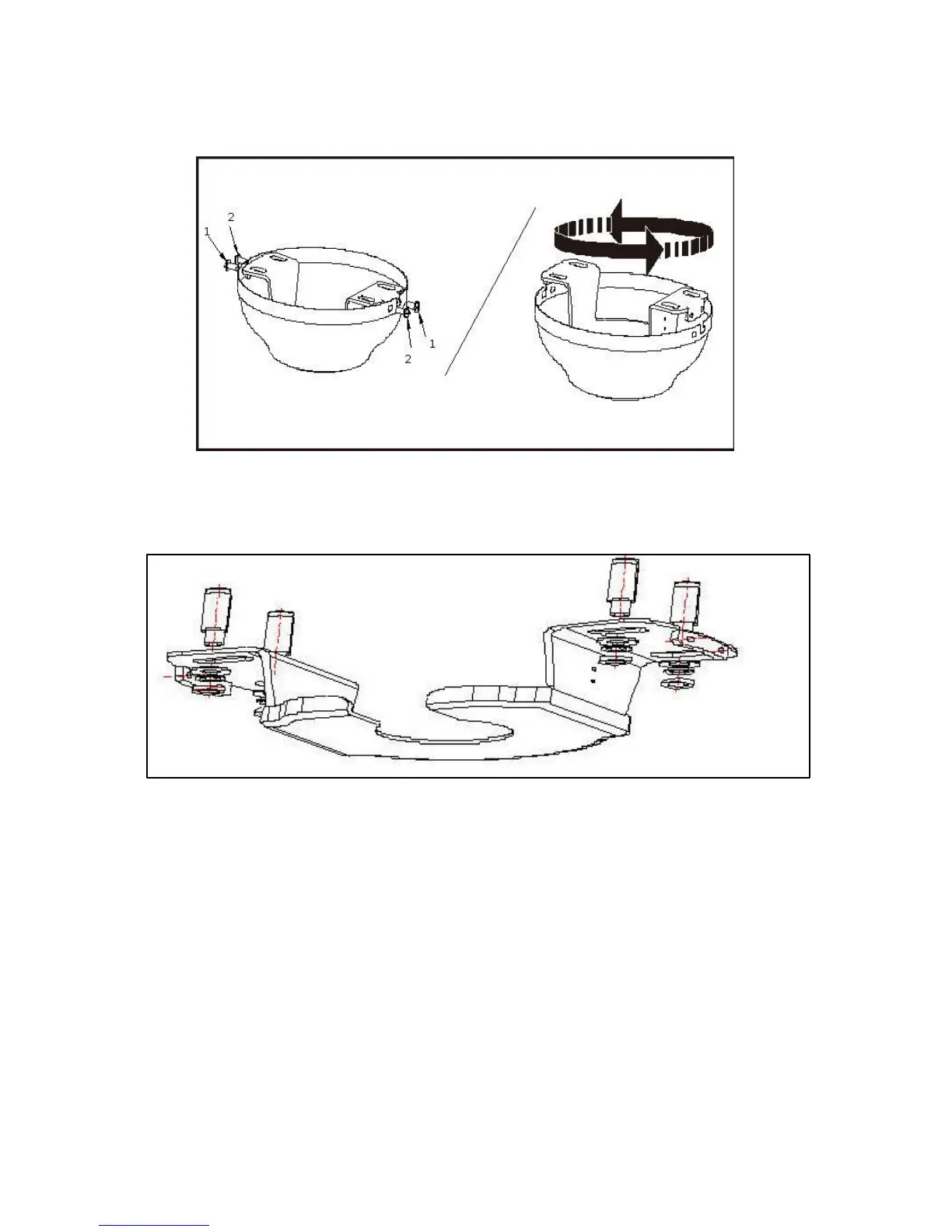

 Remove the screws from the two matching holes (1) on canopy. Loosen (do not remove) the
screws in the matching slots (2) on the canopy. Rotate the mounting bracket and remove from the
canopy.
 Install mounting bracket to the outlet box in the ceiling using the screws and the washers provided
with your outlet box.
