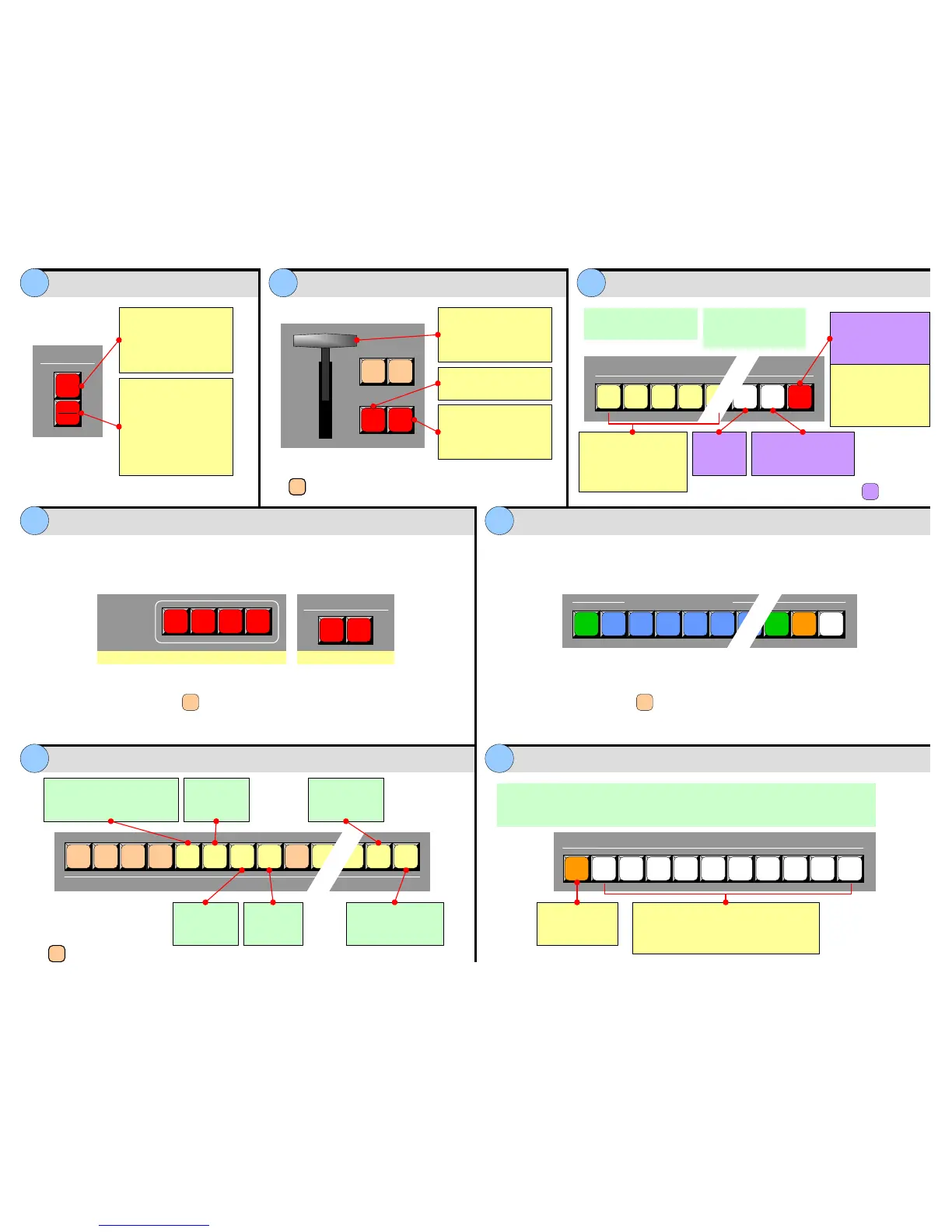

Barco Encore - Page 5

BG DSK
1
A
1
B
2
A
2
B
3
A
3
B
AUX ALL
LAYER / AUX CONTROL
TRANSITION FUNCTIONS
Mix
User
Trans
1
User
Trans
2
User
Trans
3
Mix
Source
Swap Toggle Move Shuffle
Ext
Trigger
Black
Preview
Live Switch Section Group Control Section
Program Preset Section Layer/Aux Control Section
Transition Functions Section User Key Section (Controller LC only)
14
15 16
17 18
Transition Section
12 13
Source
LIVE SWITCH
Program
Preview
Shift + Source activates
Live Switch Source mode,
which turns both rows of
the Source Selection Bus
into a live Program bus.
Shift + Program/Preview
activates Live Switch
Program/Preview mode,
which turns both rows of
the Source Selection Bus
into a live Program/Preview
bus. Top row = Program,
bottom row = Preview.
GO / + GO / -
CUT
AUTO
TRANS
T-Bar
Manually transition sources
to/from Program, based on
current transition type.
Instantly cut layers from
Preview to Program
Transition automatically
from Preview to Program.
Use Effects Menu to set all
transition parameters.
Not
Implemented
Controller
LC only
1
Group
1
Group
2
Group
3
Group
4
GROUPS
Clear
All
Learn
Controller SC: 4 Groups
Controller LC: 8 Groups
Program Group buttons
to represent one or
more destinations
Press one (or more)
group buttons to enable
the assigned
destination(s) and toggle
all other groups off.
Activates
all assigned
groups
Hold and press Group #
to clear one Group.
Clear + All to clear all.
Activate desired
destination(s), then hold
and press Group # to
learn.
Program
Preset
1
PROGRAM
PRESETS
Program
Preset
2
Program
Preset
3
Presets
To
Program
Controller LC Controller SC
Program
Preset
1
PROGRAM PRESETS
Presets
To
Program
All buttons in the Program Preset
Section are not implemented
All buttons in the Layer / Aux Control
Section are not implemented
Not
Implemented
Co-locates both PIPs (Split is
Off). If lit and PIP (in Preview) is
not co-located, press to co-locate
Toggle
sources with
each transition
Pend “Move”
on the
active layer
Independently
locate PIPs
(Split is Off)
Re-start timeline
on Barco Events
Manager
1
1 2 3 4 5 6
USER KEYS
8
7
9 10
1
Page
Hold and press
User Key # to
select page
• 100 User Keys provided (10 pages of 10 User Keys each)
• Each button stores all (or a portion) of PIP or Key attributes, including the PIP or Key selection
• Use the User Key Copy Setup Menu to select attributes
• Press and hold User Copy, then press
User Key # to store active layer’s attributes
•PressUser Key # to apply stored attributes
to active layer
Alternate “learn”
method (both
Controllers): Hold
Group #, toggle desired
Destination #s
Transitions final output
to black. Layers are
not affected
