Barco Encore - Page 8

• Stack system, up to 12 layers
• Controller LC only
• 2 x 3 M/E Video Processors
• 1 x SDI Router
• 1 x RGBHV Router
• 1 destination:
1) Projector
Program
Link
Source
Link
Program
Link
Source
Link
PCs (DVI)
Triple Head
Graphics Cards

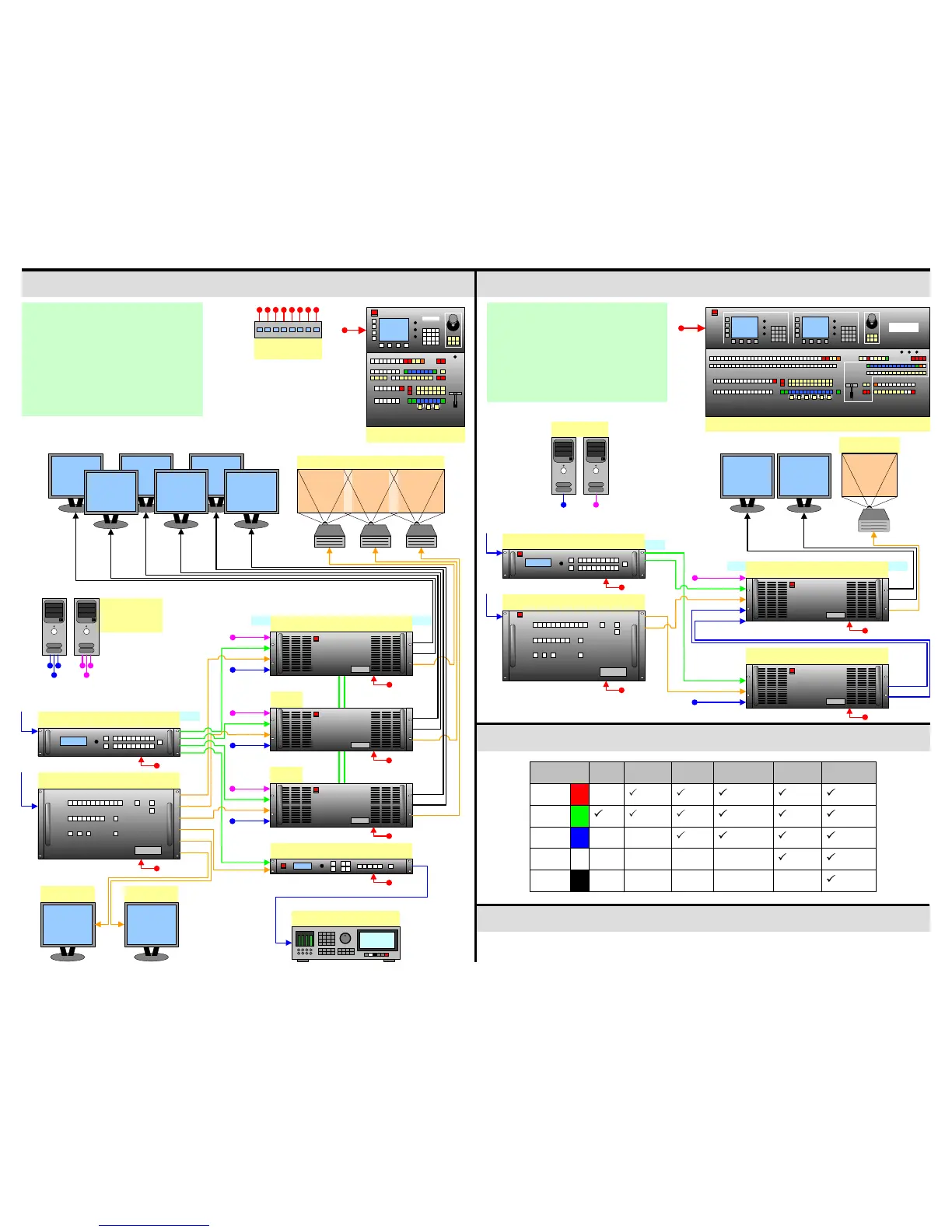

Sample System — Wide Screen Configuration
Controller LC Only
Encore Presentation System User’s Guide
Sample System — Single Screen “Stack” Configuration
Breakout Cables for Analog Inputs
Breakout Cable
Wire Color
Comp
Video
S-Video
(Y/C)
YUV
(YPbPr)
RGB
Sync on Green
RGB
Comp Sync
RGB
Separate H V
R
G
B
H Sync
V Sync
(Chrom) (Pr)
(Lum) (Lum)
(Pb)
For complete details on all installation, setup, configuration and operations procedures, please refer to
the Encore Presentation System User’s Guide.
