BG
1
-
9
2
-
10
3
-
11
4
-
12
5
-
13
6
-
14
7
-
15
8
-
16
CUT
All
Trans
Freeze
PVW
Freeze
PGM
Match
PGM
Arm
Page
1
Page
1
Destination
Layer
Assign
Layer
Trans
Layer
Cut
Event Master Series Controller Operation
P/N 60600356 Rev 00
Barco Technical Support:
USA:
EMEA:
China:
APAC:
Support:

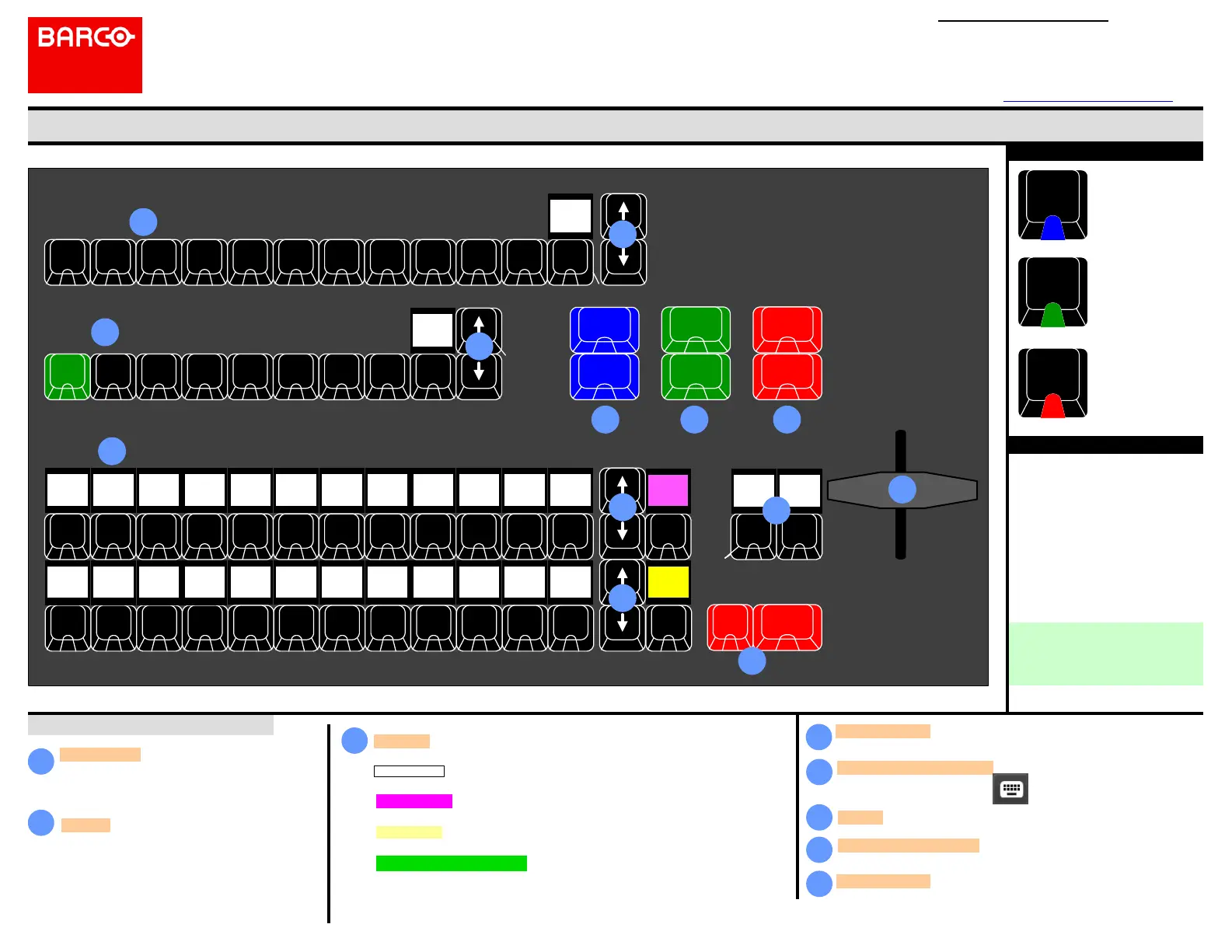

Event Master Series EC-30
Quick Start Guide – Setup
+1 (866) 374-7878
+32 (56) 36 8019
40088 22726
+603-78803362
www.barco.com/en/support
For detailed installation instructions,
refer to the Event Master Devices
User’s Guide (R5905948).
LEDs
Operation overview
7
Layers — These buttons give direct selection of the
Layers in the selected Destinations. In normal mode
the button selects and/or adds a layer in the Preview
of the selected Destination. A green LED indicates
selected.
In LIVE mode (unlocked Program) the Layer is
selected in the Program of the selected Destination.
Destinations — These buttons give direct selection
of the assigned Destination configurations. Buttons
toggle on and off the selection. A blue LED indicates
selected.
Assign — These buttons give direct selection of the assigned resources. There are
several that can be mapped.
PRESETS — The Presets created in EMTS can be mapped onto a bus that is
selected to PRESETS.
USER KEYS — The User Keys created in EMTS can be mapped onto a bus that is
selected to USER KEYS, like the top row in the picture.
SOURCES — The Source Files, (not the Inputs) created in EMTS can be mapped
onto a bus that is selected to SOURCES, like the bottom row in the picture.
BACKGROUND SOURCES — The Backgrounds created in EMTS can be mapped
onto a bus that is selected to BackGround Source, this is not shown in the picture.
Once a Button is assigned with a resource, the backlight of the display will turn to the
corresponding color.
Arrow buttons — These buttons choose the next page of its button bus.
Contextual Display Buttons — These provide mapping of a variety of
functions from the EMTS.
Mapping of them is done in the menu.
8
9
10
11
13
14
Layer Function Buttons — These buttons provide indicated function to
selected Layer(s).
Cut & All Trans — These buttons execute the transition setup in the GUI.
12
T-Bar — Manually transitions Preview to Program.
Blue indicate
selected or active in
all its buttons
Green indicate
selected in Preview
Red indicate
selected in Program
or
Transitioning
Backlight
Once a Button is assigned with a
resource, the backlight of the
display will turn to the
corresponding color.
- White for Presets
- Magenta for User Keys
- Yellow for Source Files
- Green for Background Sources
10
11
12
14
13 13 13
7
8
9
Source
1
User
Key
1
10
10
10
