Barco Sedomat 5000 User Manual

Sedomat 5000
For all kinds of textile finishing machines
Concept:
• 27 hours/day:
By simultaneously executing two
batches and several functions,
the next batch can be prepared,
while the current batch is still
active. This increases the machine
efficiency.
• Windows user interface for a
simple and intuitive operation.
• Entry and management of
processes.
• Animated VGA mimic of the
machine improves the process
overview without providing a
machine diagram on the panel.
• PCMCIA memory card for data
transfer and backup.
• Interface to SEDOMASTER central
system:
- Entry of processes
- Scheduling of batches on the
machines
- Graphic visualization of the
process values
- Flexible report generator, ...
• Several languages and character
sets (e.g. Chinese) are supported.
• Allows logging of all process data,
a must for ISO9000 certification
• Storage and graphic evaluation
of process data and events (e.g.
operator calls, consumption,
alarms, fabric length, stops, ...).
• Barcode interface for lot tracking
purposes.
Applications:
• Control of machines and functions
of all types is guaranteed by the
modular and free programmable
PLC concept.
• Link with a fully automatic dye
kitchen for the preparation of
dyestuff and chemicals.
Batch processes
• The SEDOMAT 5000 controls all
batch dyeing machines such as
Yarn, Jet, Jigger, Winch.
• Control of temperature, time,
speed, flow, differential pressure,
pH, circulation control, dosing and
Remazol®,...
• Coupled operation (Master/Slave)
Continuous processes
• The SEDOMAT 5000 controls all
continuous machines such as
singeing machines, bleaching
ranges, mercerizing machines,
washing machines, dryers, con-
tinuous dyeing machines, sten-
ters, shrinking machines, decating
machines, calenders, raising and
emery machines, etc. .
• Control of speed, residual mois-
ture, exhaust air humidity, fabric
temperature, dwell time, shrink-
ing and stretching, pH, fabric
width, etc...

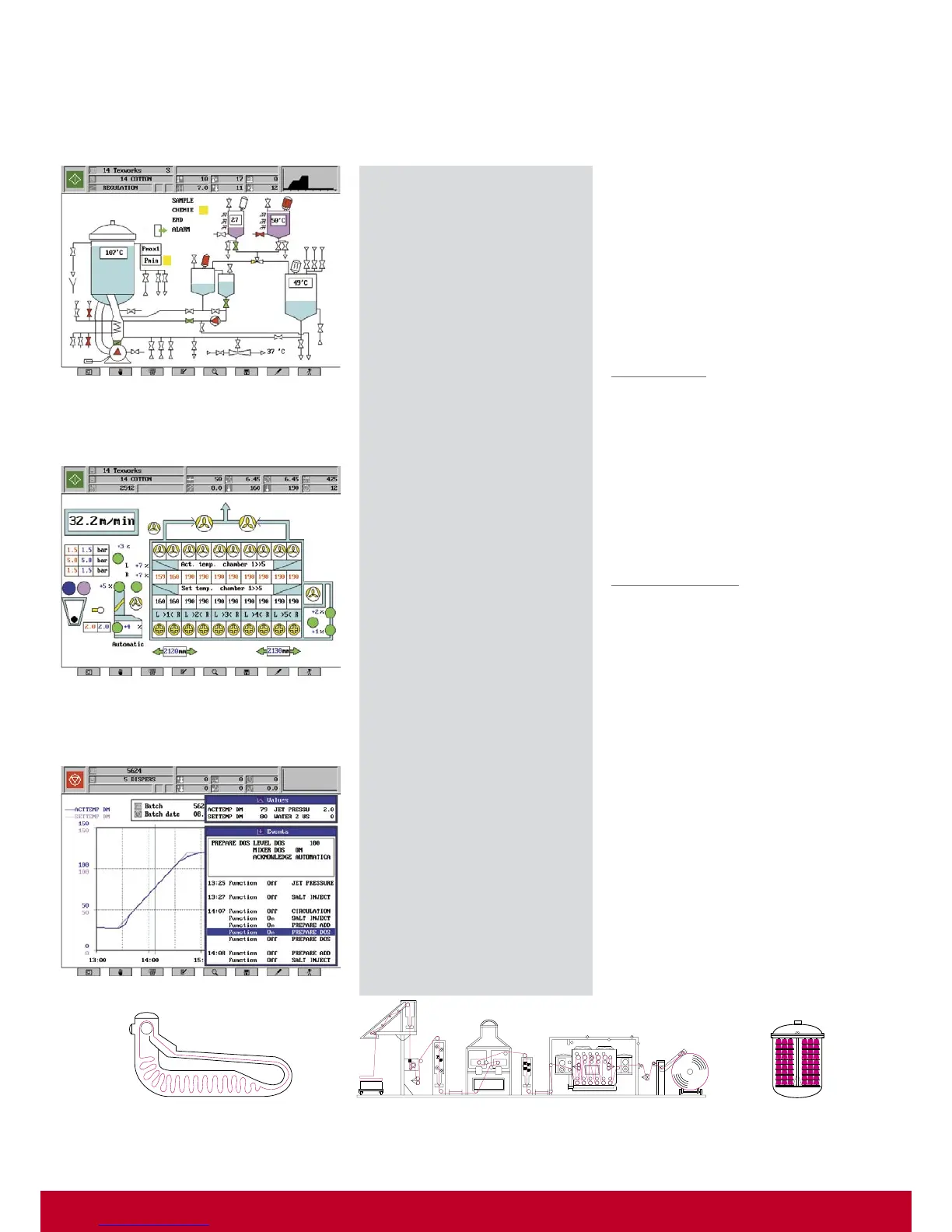

Process visualization yarn dyeing machine
Process visualisation stenter frame
History logging of process data

Barco Sedomat 5000 Specifications

General

Brand	Barco
Model	Sedomat 5000
Category	Controller
Language	English
