Bard WA423 - Figure 5 Wall Mounting Instructions; Figure 6 Wall Mounting Instructions

Manual 2100-398
Page 10

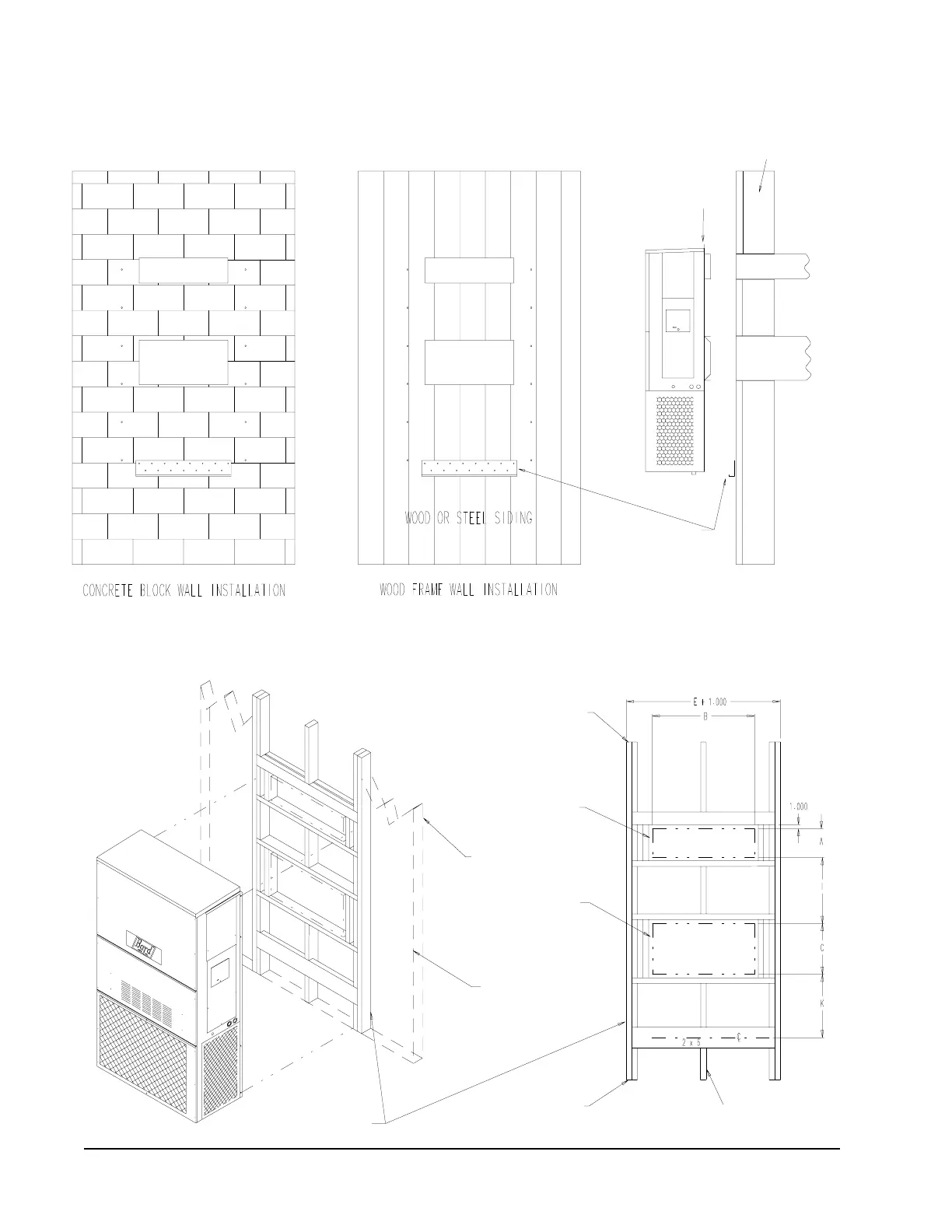

FIGURE 5
WALL MOUNTING INSTRUCTIONS
FIGURE 6
WALL MOUNTING INSTRUCTIONS
MIS-548
MIS-549
SEE FIGURE 3 – MOUNTING INSTRUCTIONS
SUPPLY AIR
OPENING
RETURN AIR
OPENING
RETURN AIR
OPENING
SUPPLY AIR
OPENING
BOTTOM MOUNTING
BRACKET. MOUNT ON
WALL BEFORE
INSTALLING UNIT.
RETURN AIR
OPENING
SUPPLY AIR
OPENING
WALL STRUCTURE
FACTORY SUPPLIED RAIN
FLASHING. MOUNT ON UNIT
BEFORE INSTALLATION
SEE UNIT DIMENSIONS, FIGURE
1, FOR ACTUAL DIMENSIONS
ATTACH TO TOP
PLATE OF WALL
1.000” CLEARANCE
ALL AROUND
INTERIOR FINISHED WALL
OVER FRAME
1.000” CLEARANCE
ALL AROUND
EXTERIOR FINISHED
WALL OVER FRAME
ATTACH TO BOTTOM
PLATE OF WALL
FRAMING MATERIAL
2 X 4’S, 2 X 6’S AND/OR
STRUCTURAL STEEL
THIS STRUCTURAL MEMBER LOCATED TO MATCH
STUD SPACING FOR REST OF WALL. A SECOND
MEMBER MAY BE REQUIRED FOR SOME WALLS.
RETURN DUCT
OPENING
SUPPLY DUCT
OPENING
