Bareknuckle Welterweight - Airless Paint Sprayer OPERATING INSTRUCTIONS & SAFETY MANUAL Bareknuckle Welterweight - Airless Paint Sprayer OPERATING INSTRUCTIONS & SAFETY MANUAL | 22 | 23
No. Description Qty. No. Description Qty. No. Description Qty.
1 Hex Bolt M6*20 2 45 Paint Input adaptor 1 89 Hex bolt M4*10 2
2 Pump cover 1 46 Pressure relief plug 1 90 Hex bolt M6*25 2
3 Output Gear bushing 2 47 Power switch 1 91 PCB supporter 1
4 Rolling bearing 1 48 Hex bolt M5* 14 3 92 Bolt M4*10 1
5 Output pole 1 49 Housing 1 93 Wire connector 1
6 Gear 1 50 Power plug 1 94 Nylon Cable tie 1
7 Gear bushing 2 51 Locking ring 1 95 Safety cover 1
8 Gear washer 1 52 Exhaust tube 1 96 PCB Assembly 1
9 Output gear 1 53 Wire Fastening seat 1 97 Tapping screw 2
10 Screw 1 54 Screw 3.5*10 3 98 Power cord fixer 1
11 Paint outlet 1 55 Bolt M4*10 1 99 Bolt M4*20 2
12 O-ring 10*8 1 56 Motor assembly 1 100 Shield 1
13 Output spring 1 57 Pin 3*12 2 101 O-ring 2.4*1.8 1
14 Mandrel 1 58 Hex bolt M5*14 4 102 Stopper 1
15 Steel ball 6.4 1 59 Spring washer 5 4 103 Copper gasket 1
16 Seal seat 1 60 Joint stopper 2 104 Touch control spring 1
17 Output washer 1 61 O-ring 1 105 Touch control pole 1
18 Pump 1 62 O-ring 22.5*1.8 1 106 O-ring 10*1.5 1
19 Plastic washer 1 63 Stopper sleeve 1 107 Touch control seat 1
20 Screw seat insert 1 64 Position washer 1 108 Touch control stem 1
21 Pressure relief valve seat 1 65 Copper washer 1 109 Flat washer 4 1
22 O-ring 5*1.8 1 66 Felt 1 110 Spring washer 4 1
23 Ring 1 67 Connector seat 1 111 Pole stopper 1
24 Pressure relief valve pole 1 68 Copper guide bushing 1 112 Pump frame assembly 1
25 Spring 1 69 Connector 1 130 Bush 1
26 Spring seat 1 70 Pin 5*12 2 131 Filter 1
27 Pin 3*8 1 71 Lock sleeve 1 132 Rubber stopper 1
28 Switch seat 1 72 White seal 1 133 Airless paint sprayer 1
29 Switch knob 1 73 Sealing washer 1 134 Paint hose 7.6m 1
30 Pin 2.5*25 1 74 Pressure control pin 1 135 Socket 22mm 1
31 Filtrate seat assembly 1 75 O-ring 8.8*1.9 1 136 Manual 1
32 Inlet pipe lock ring 1 76 O-ring 27*2.4 1 137 Wrench 1
33 Suction tube 1 77 Hex bolt M3*10 2 138 Hex wrench 4mm 1
34 Priming tube 1 78 Pressure seal cover 1 139 Hex wrench 5mm 1
35 Clip 1 79 Micro switch 1 140 Bush 1
36 Large clamp 1 80 Micro switch cover 1
37 Small clamp 1 81 Pressure control switch 1
38 Nylon cable tie 1 82 Switch cover 1
39 Inlet spring holder 1 83 Pressure adjusting spring 1
40 Input spring 1 84 Spring pusher 1
41 Steel ball 12.7 1 85 Pressure knob 1
42 Input seal 1 86 Pressure control bolt 1
43 Input washer 1 87 Up handle 1
44 O-ring 17*1.8 1 88 Below handle 1
PARTS LIST

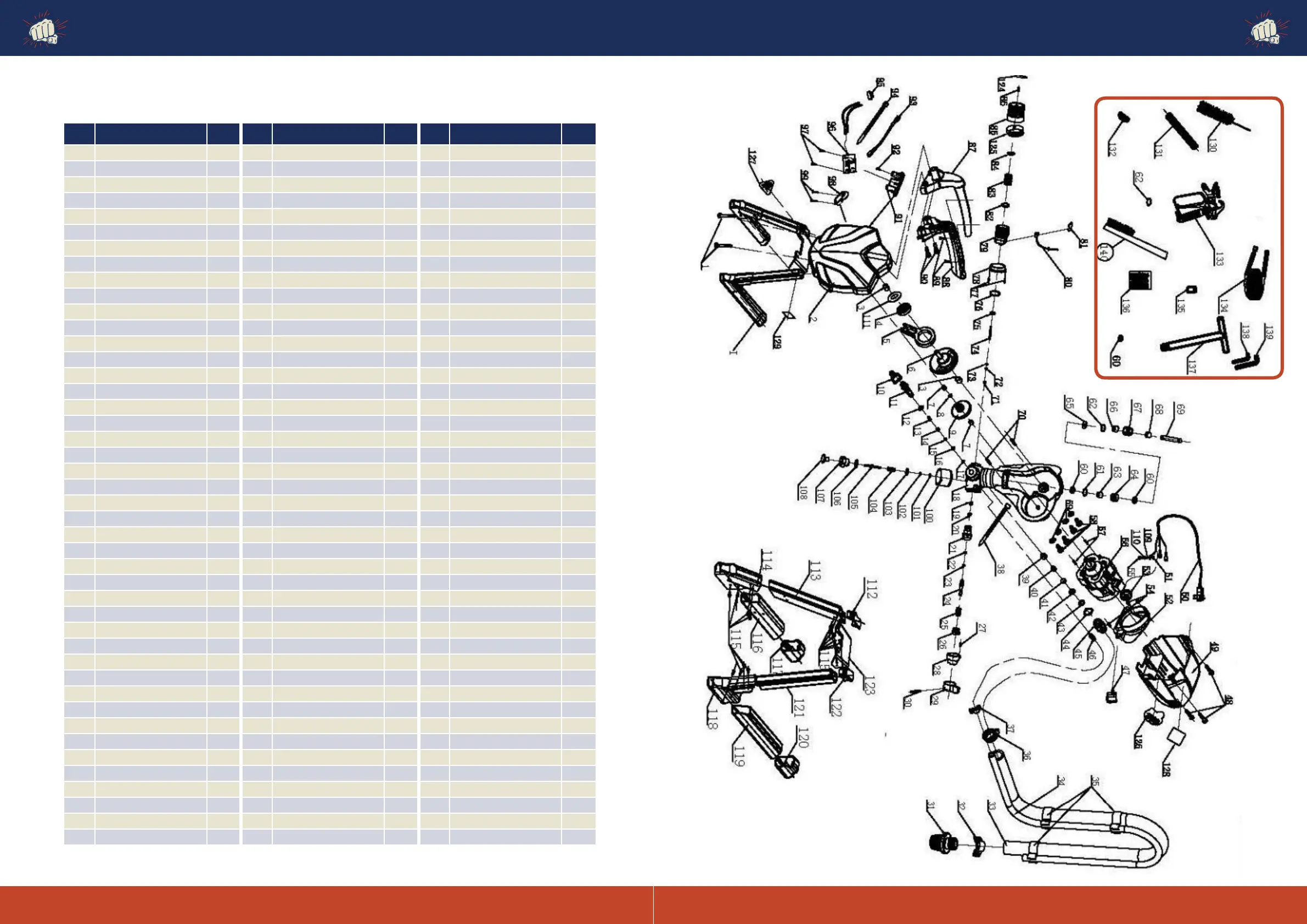

Explode view for RP8623NL
BAREKNUCKLE WELTERWEIGHT
