Technical datasheet HFX and HFXE_LED_26
Indicator
LED
(green) no
self-test
Indicator
LED
(red/green)
self-test
System
status
Action
Continuous
green
Continuous
green
System
ok
Battery charging ok and no faults apparent.
No light
Continuous
blinking
red
Battery
capacity
problem
24 h charge period after last discharge not completed, or faulty
battery. Retest system after 24h charging period, or replace
battery
No light
Continuous
red
Charging
error
Battery defective or missing. Connect or replace battery.
No light
No light
No
function
Connect to mains supply voltage within specified limits.

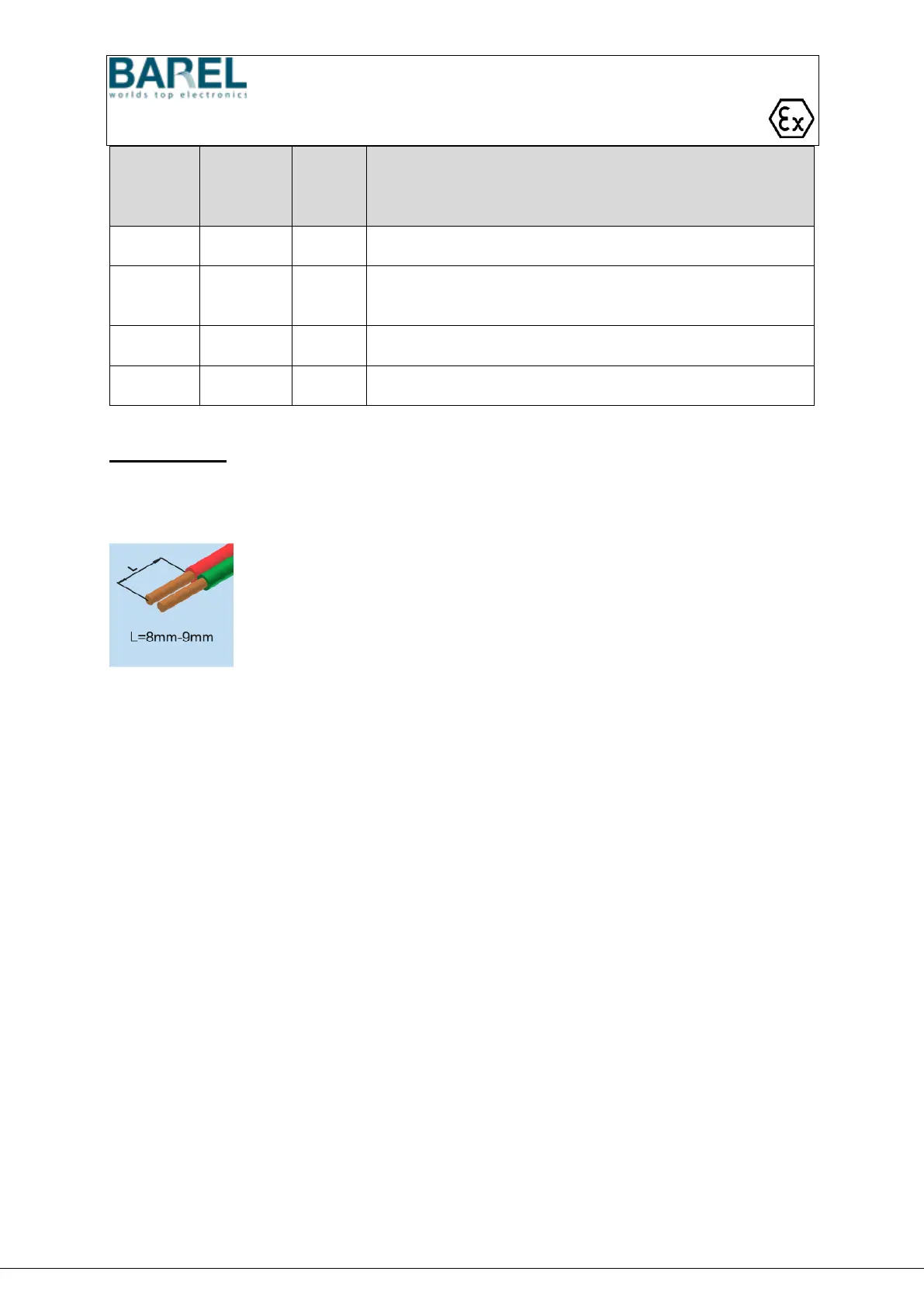

4.5 Cable
Cable cross sectional area: 1 – 2,5 mm2 (solid or multi wire).
Terminal torque: 0,9Nm.
Terminal screw/tool: 0,6x3,5mm Slotted bit of high quality is recommended.
Suitable ferrule should be used to secure the connection of stranded wires.
For Aluminum cables; a bi metallic connector should be used to provide a copper connection.
