1824TK - 2324TK OPERATOR’S MANUAL 1/24/12 Page 8 of 20

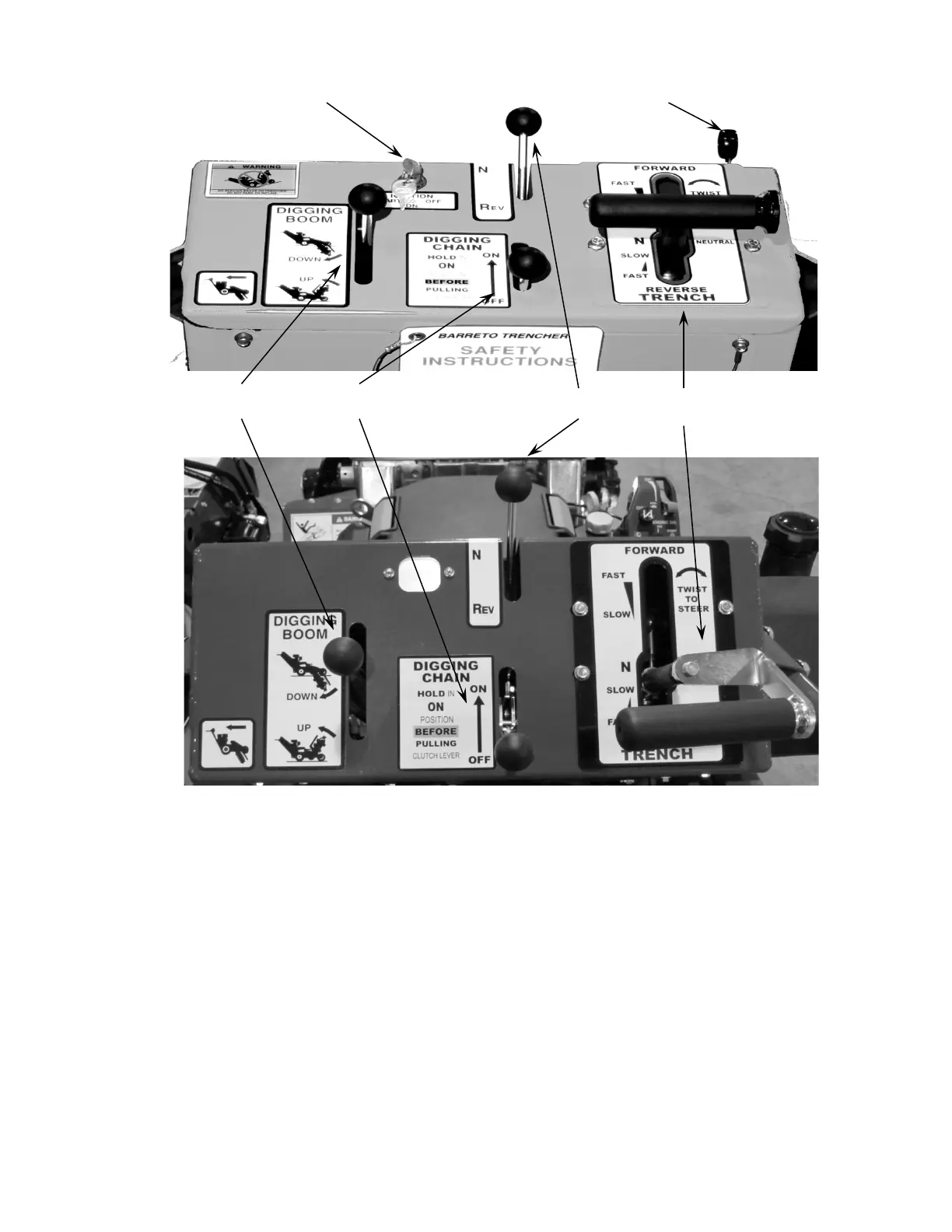

KEYED IGNITION SWITCH ENGINE THROTTLE
(KOHLER ENGINE ONLY) (KOHLER ENGINE ONLY)
DIGGING BOOM DIGGING CHAIN CHAIN FWD/N/REV T-HANDLE CONTROL
ENGINE CONTROLS
FUEL SHUTOFF VALVE: Must be in OPEN position for engine to run.
CHOKE: Use to aid starting the engine when it is cold.
KEYED IGNITION SWITCH (Kohler Only): This remote switch is located with the other trencher
controls for your convenience. Use it to start and stop the engine equipped with an electric starter.
Refer to the ENGINE START UP PROCEDURE.
ENGINE: This is the throttle lever (Kohler only). It controls the engine speed. Operate trencher at full
throttle (all the way forward).
