Barska 900114 - Installing Telescope Body and Finder Scope

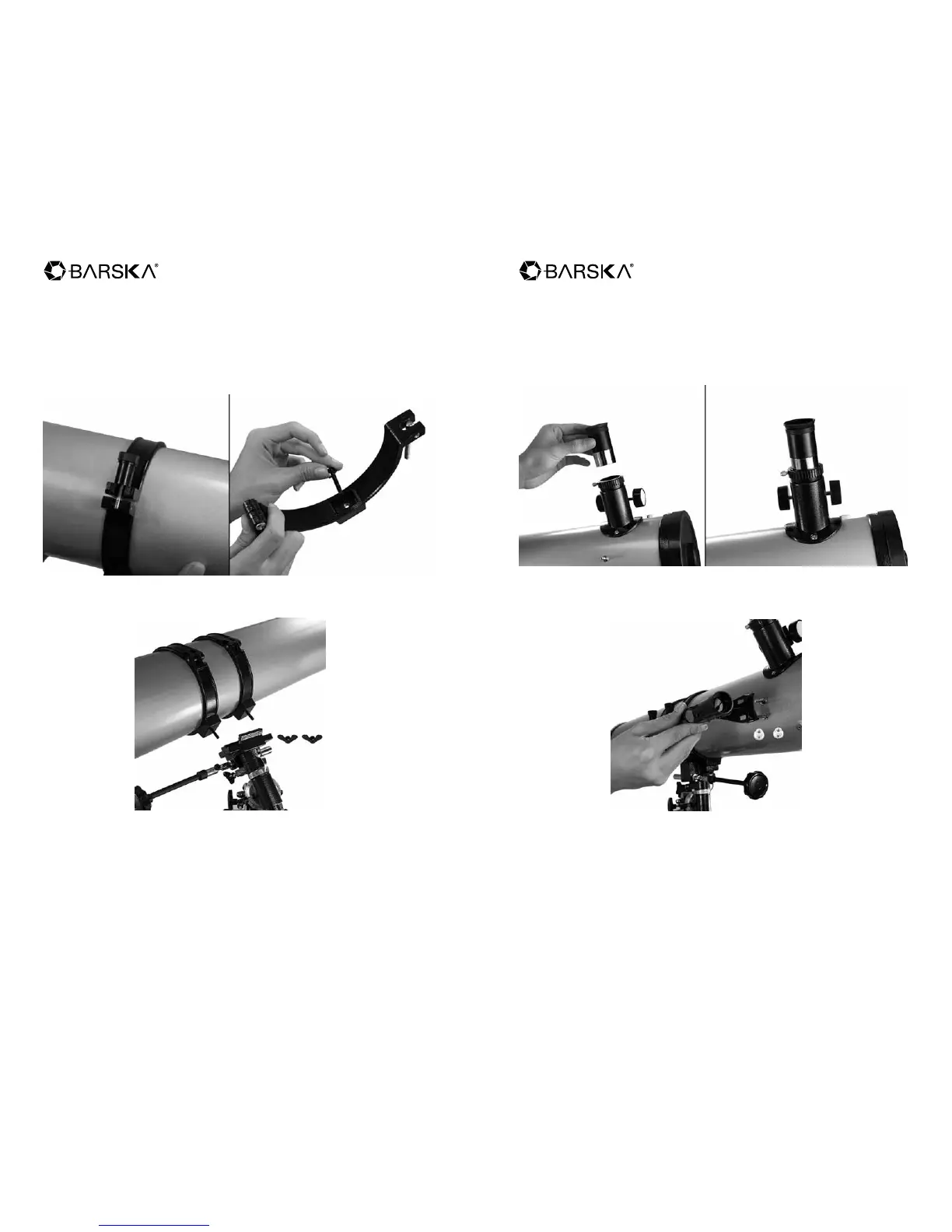

6. Insert Screw x 2 into Telescope Ring Mounts x 2 and attach the Telescope
Ring Mounts to the Telescope Main Body, make sure that the spacing between
hthe rings t into the Equatorial Mount.
7. Attach the Telescope Main Body to the Equatorial Mount as shown below.
8. Attach Eyepiece onto the Telescope Main Body as shown on the left. Should
look like picture on the right when nished. Can attach Barlow Lens instead.
9. Attach Finder Scope to the Telescope Main Body with the silver screws shown
in the picture as shown below.
675 Power, 900114 Starwatcher Telescope 675 Power, 900114 Starwatcher Telescope
6 7
