Operational Instruction EN (Translation) 2 05-0003-6D0003/D-02/2022-STVT-301744
Note on instructions
When working in hazardous areas, the safety of personnel
and equipment depends on compliance with the relevant
safety regulations. The people in charge of installation and
maintenance bear a special responsibility. It is essential that
they have an exact knowledge of the applicable rules and
regulations.
The instructions provide a summary of the most important
safety measures and must be read by everyone working with the
product so that they will be familiar with the correct handling of
the product.
The instructions have to be kept for future reference and must
be available throughout the expected life of the product.

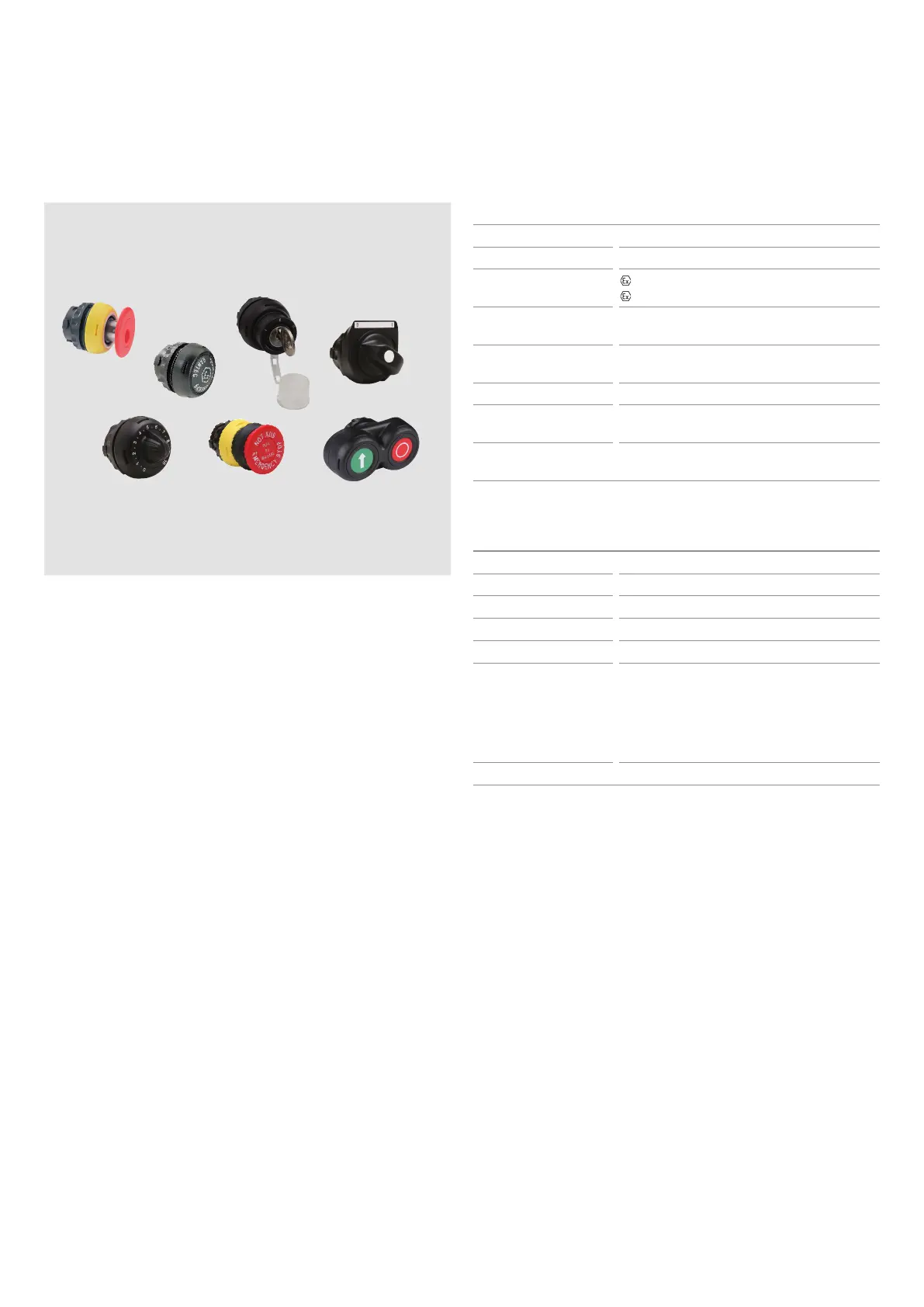

Description
A large number of variants and versions of actuating elements
are available for the ComEx control and indicator units.
To complete the actuating elements, there are useful
accessories such as e.g. label holders, marking tags, metal
shroud or nut wrench.
Explosion protection
Notified Body No. 0044
Approved Body No. 2503
ATEX/UKEX
Ex protection type
II 2G Ex eb IIC Gb
II 2D Ex tb IIIC Db
Certification CML 13 ATEX 3010 U
CML 21 UKEX 3713 U
IECEx
Ex type of protection
Ex eb IIC Gb
Ex tb IIIC Db
Certification IECEx IECEx CML 14.0005U
Service temperature -40 °C to +70 °C
-55 °C to +70 °C*
Storage and transport
temperature
-55 °C to +70 °C
* related to explosion protection according to EN IEC 60079-0
Technical data
Protection class IP 65, IP 66, IP 67
Protection class See table
Impact resistance 7 Nm (Lamp actuators 4 Nm)
Material Enclosure: Thermoplastic/injection moulding
Mass See selection chart
Fastening – Installation in enclosures with wall thickness
of 1mm to 6 mm (0.04 in to 0.24 in),
threading M30 x 1.5
– Suitable for through-holes 30.3 mm
(1.19 in)
– Torque fixing nut 2.8 to 3.4 Nm.
Dimensions See page 4 et seq.
Actuating Elements
Type 05-0003-00../....
