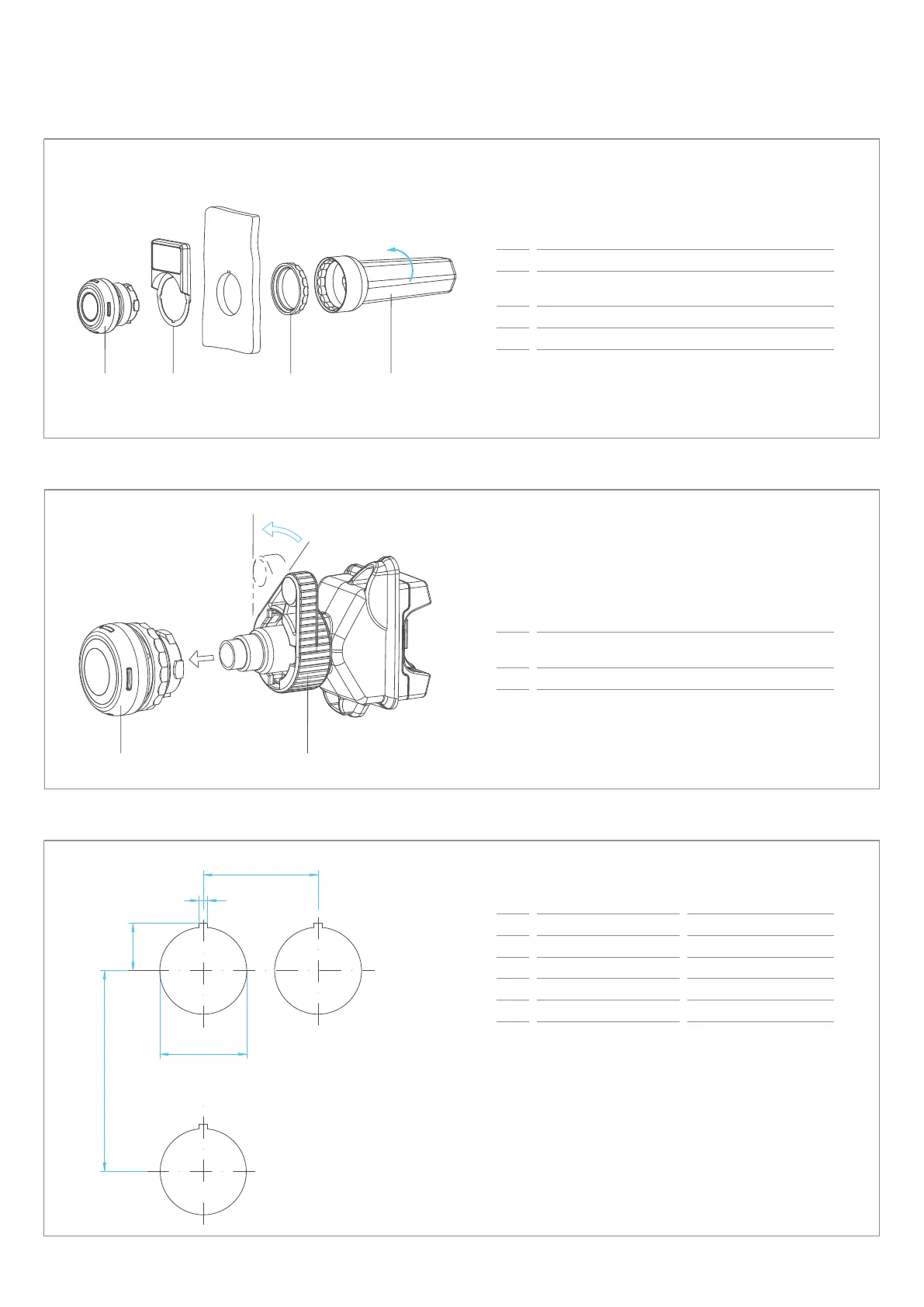

Operational Instruction EN (Translation) 05-0003-6D0003/D-02/2022-STVT-301744 5
Assembling Actuating Elements
Assembly of Functional Modules with Bayonet Fixing
Installation Dimensions
1 Example of an actuating element
2 Optional accessories (e.g. label holders, article number
05-0044-0001 for an additional inscription)
3 Fixing nut, article number 05-1138-0009
4 Nut wrench, article number 05-1191-0001
In this example:
1 Illuminated button actuator, article number 05-0003-
006500, - 006600, -006700, -006800 or -006900
2 Illuminated button, article number 07-3363-4…
mm in
A* 70 2.8
B 16.5 0.65
C Ø 30.3
+0.3
Ø 1.9
+0.01
D 3 0.15
E* 40 1.6
Mounting hole for size dia. 30.3 mm (1.9 in) with cut-out for
anti-twist protection, typical position: top (12 oclock position).
Minimum spacing for the mounting boreholes:
horizontal 40 mm (1.6 in)
vertical 70 mm (2.8 in)
* Recommended spacing for mushroom push-button, slam button, and:
position selector switches with protective shroud: 100 mm (3.9 in).
1
1
2
2 3 4
A
B
C
D
E
1
1
2
2 3 4
A
B
C
D
E
1
1
2
2 3 4
A
B
C
D
E
