ASSEMBLY
1. Take the device out of the packaging and remove any lms and stickers that may be present. Check the
device for any transport damage. If you nd any damage, do not operate the grill.
2. Set up all parts on a dry, at, solid surface.

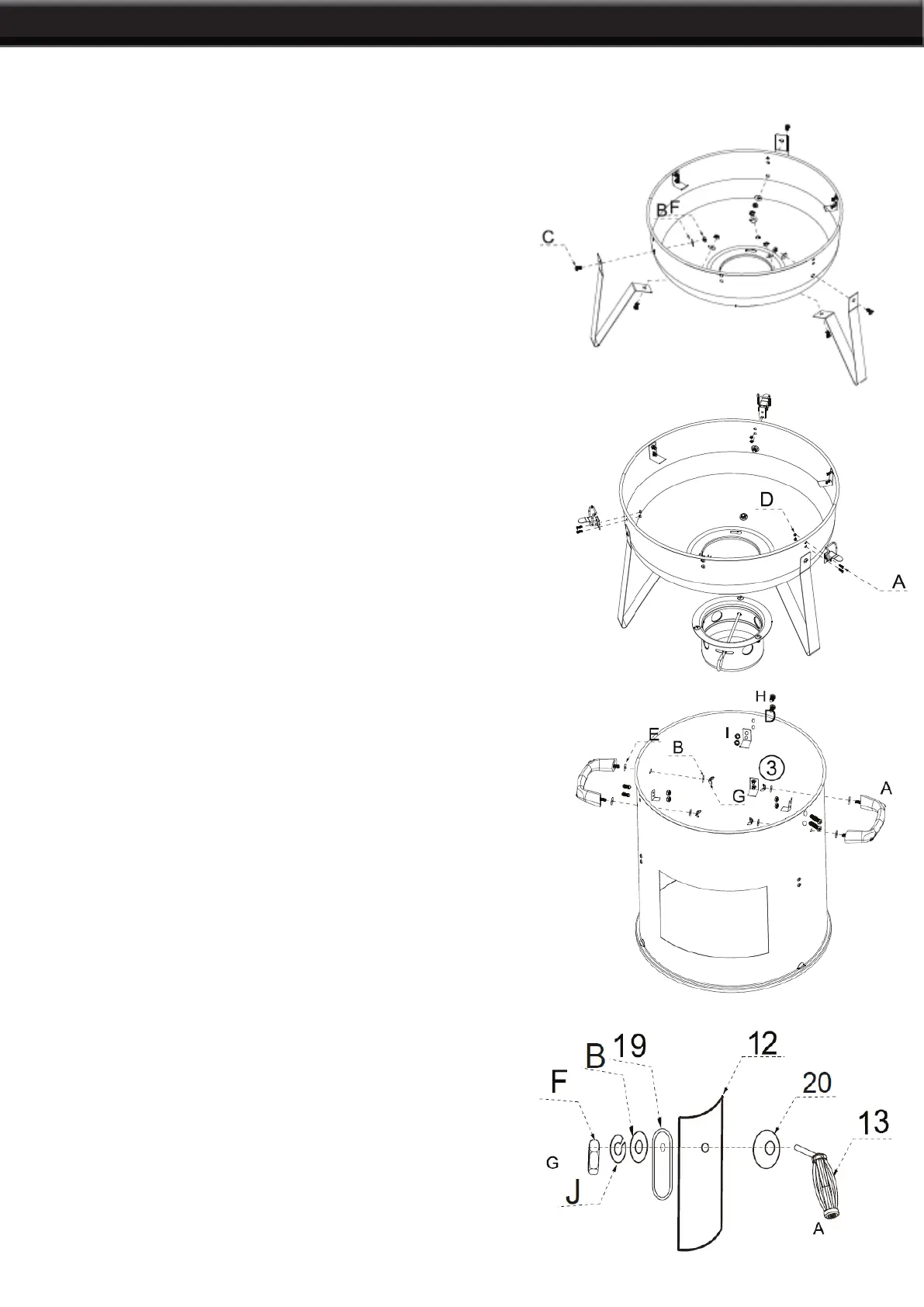

3. Secure the legs (5) to the base (17). Place one leg on
the outside on the pre-punched holes and secure it with
a screw (C) from the outside and a washer (B) and nut
(F) from the inside, proceed in the same manner for the
remaining legs.
4. Attach the bottom vents and screw in the base latches
using a screw (A) on the outside and a nut (D) on the
inside.
5. Attach the two side handles (1) and three brackets
(18) to the middle barrel using screws (H) on the outside
and nuts (I), washers (E) and Wing nuts (G) in the inside.
Brackets do not require wing nuts.
6. Assemble the door handle in the order in the gure
shown. Handle (13), Knob (20), Door plate (12), Latch
(19), Washer (B), Retaining clip (J), Nut (F)
