ASSEMBLY
4

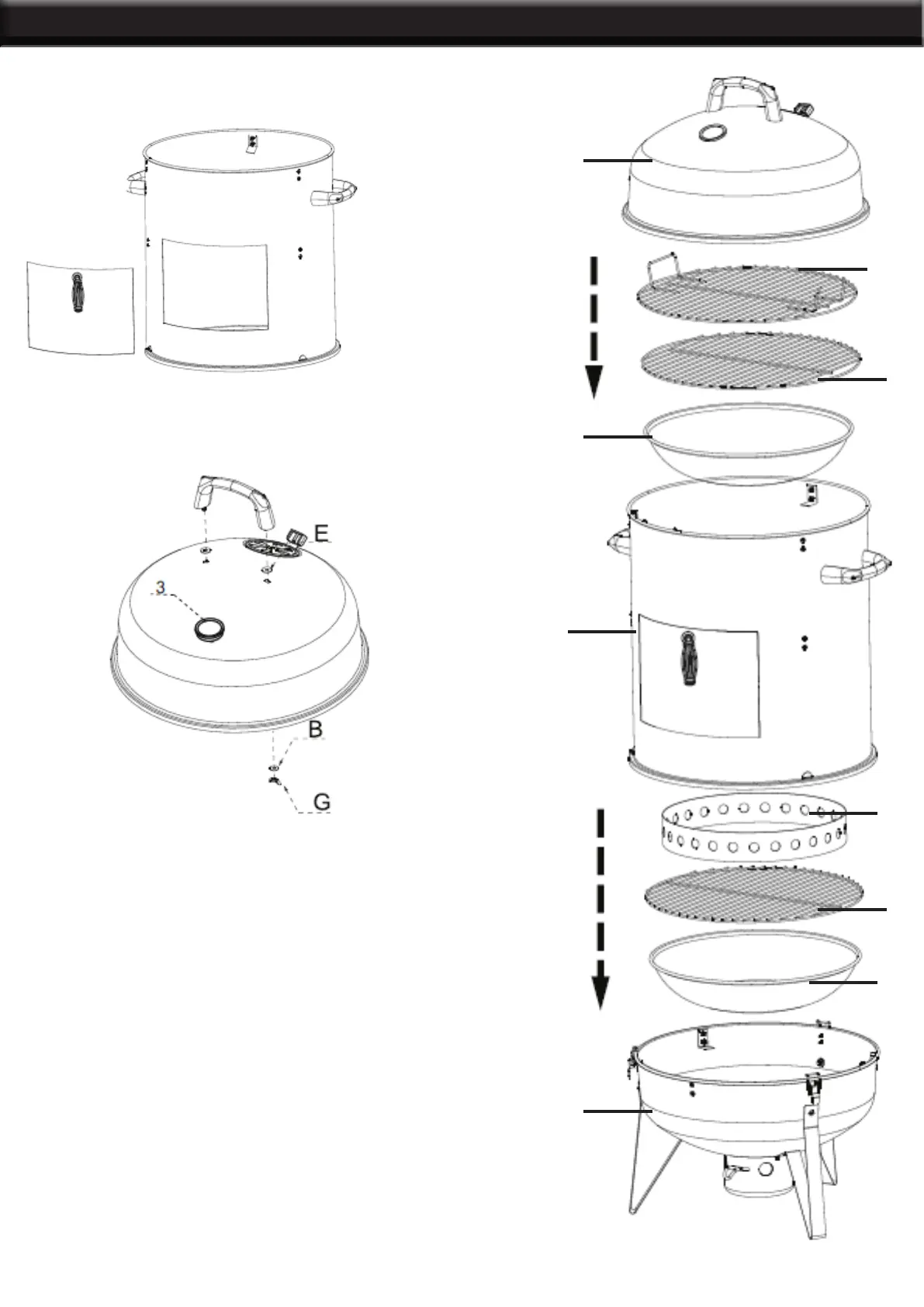

7. Attach the door.
8. Attach the thermometer vent (3) and handle (1) to the
lid using screws (A), washers (B) and wing nuts (G.
9. Assemble the smoker bottom to top according to the
diagram shown.
1. Legs & Heat Shield
2. Bowl Assembly
3. Charcoal Grate
4. Charcoal Chamber
5. Center Section
6. Water Pan
7. Grate Support
8. Upper Cooking Grate
9. Lid
9
8
6
7
5
4
3
2
1
