Technical Data
14 / 22 A150670
EN
A150671 / A150672 / A150673

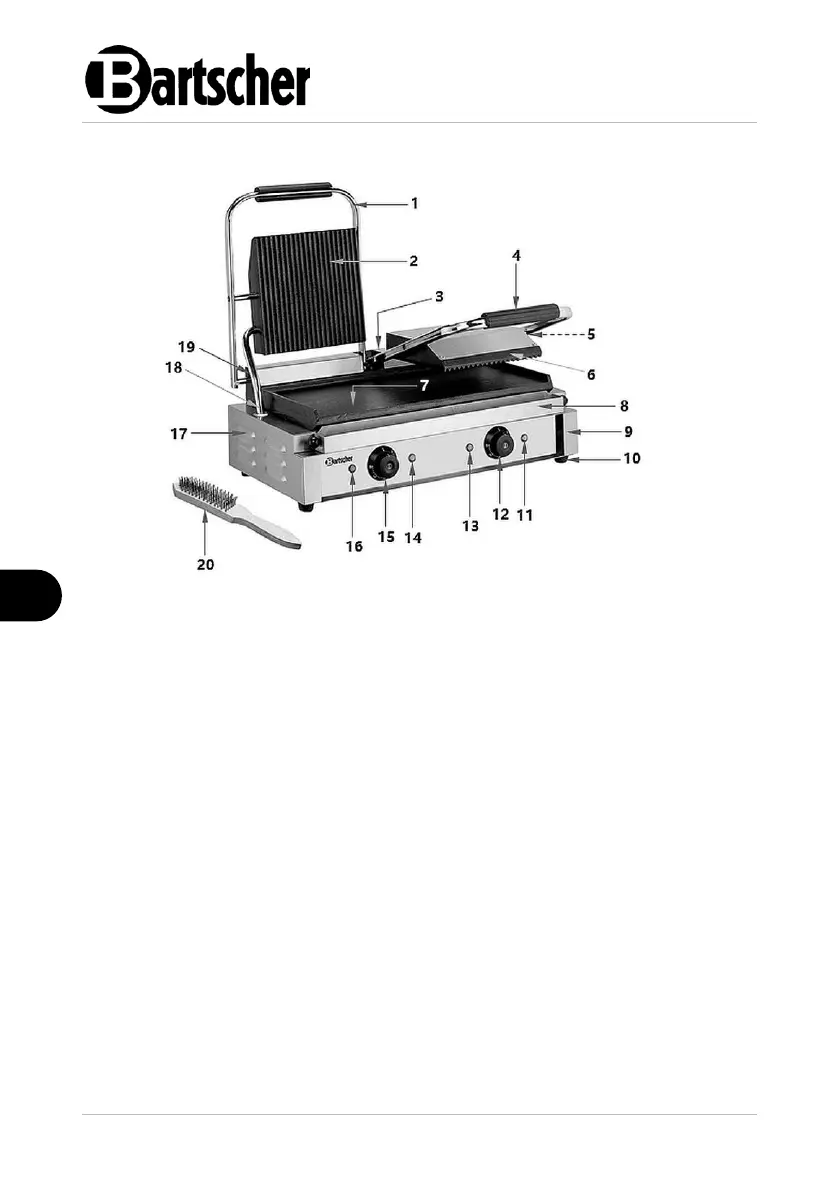

Fig. 2
1. Handle top left grill plate
2. Top left grill plate
3. Handle guard top right grill plate
4. Handle top right grill plate
5. Cable connection right heating zone
6. Top right grill plate
7. Bottom grill plate with 2 heating
zones
8. Grease collection tray
9. Housing
10. Feet (4x)
11. Heating indicator light (orange), right
heating zone
12. Temperature control knob of the
right heating zone
13. Operation indicator light (green),
right heating zone
14. Heating indicator light (orange), left
heating zone
15. Temperature control knob of the left
heating zone
16. Operation indicator light (green),
left heating zone
17. Ventilation openings
18. Cable connection left heating zone
19. Handle guard top left grill plate
20. Cleaning brush
