Bascom XD10 - Page 14

English
11

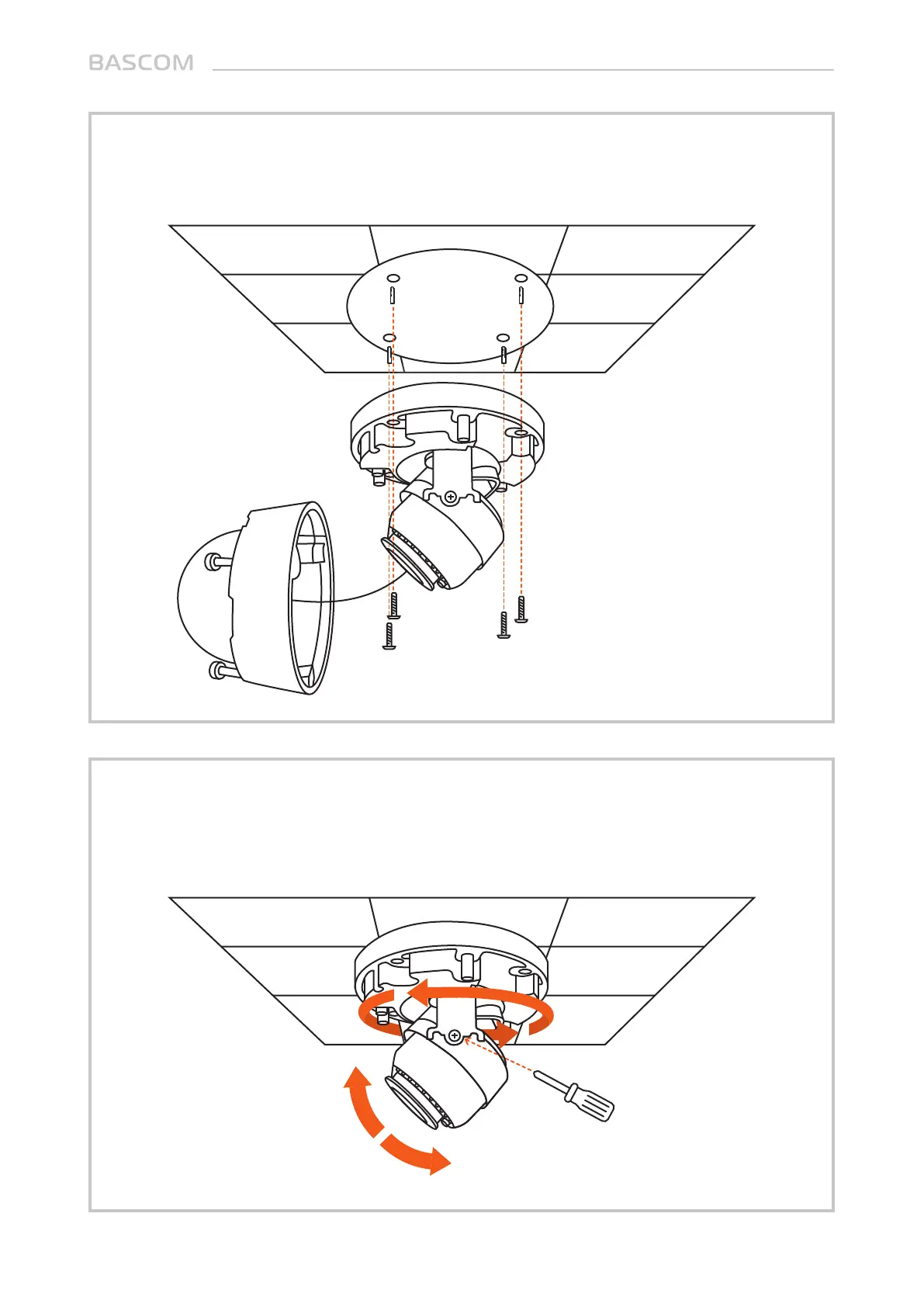

4. Drill the holes and mount the camera. Use expansion bolts and locking screws.
(6mm drill is needed for the locking holes and 20mm drill for the cable connection).
5. Turn the camera left or right. Loosen the screws at the side to move the camera
up or down.
