Basic American Matrix 4000 Series - Electrical Cabling Diagrams

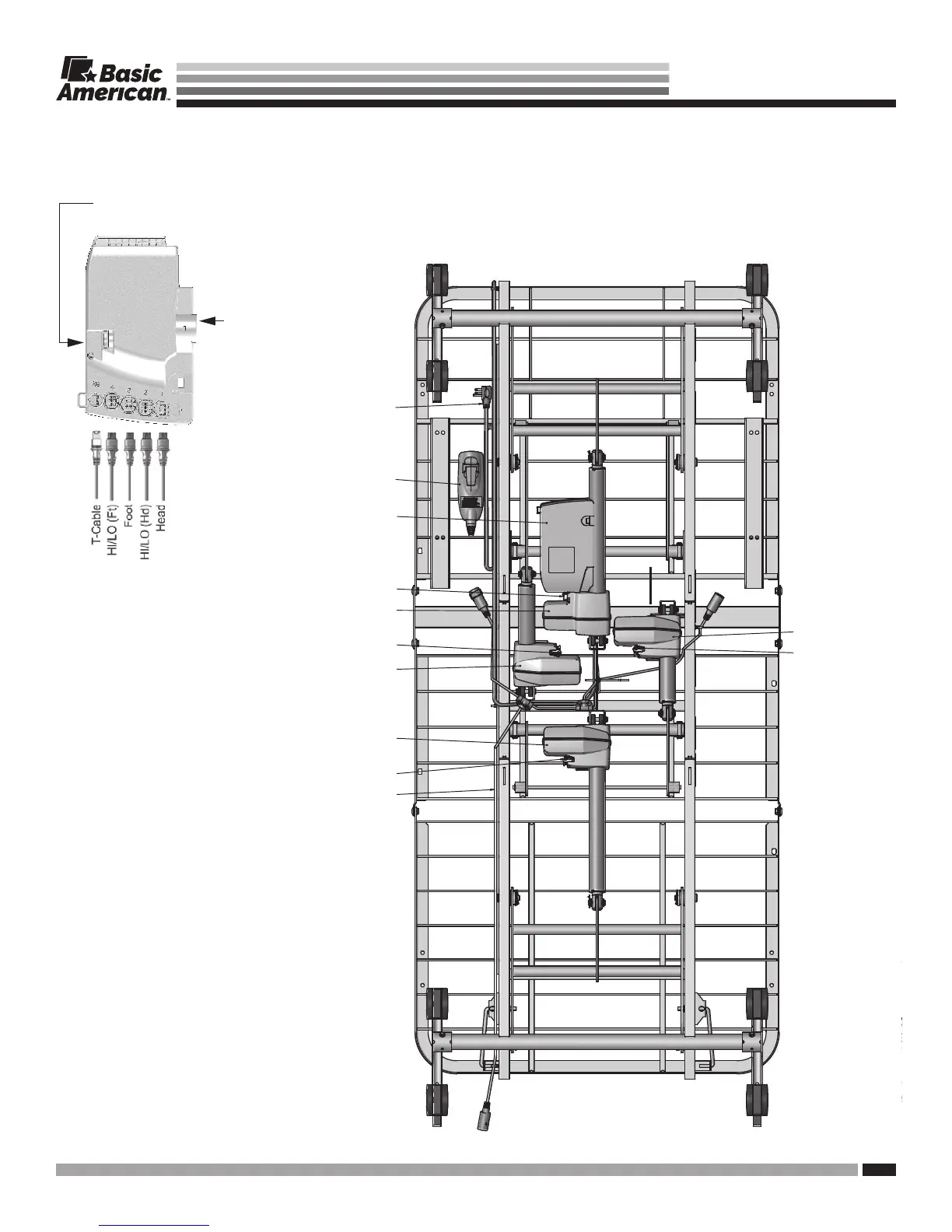

MATRIX 4000 SERIES ELECTRICAL CABLING
31
Foot Actuator
Actuator Cable
Power Cord
Hand Control Pendant
Control Box
Actuator Cable
Actuator Cable
Actuator Cable
HI/LO Actuator
(Head End)
HI/LO Actuator
(Foot End)
Head Actuator
Control Cable
Power Cord
Connector
CONTROL
BOX
Optional Battery
Cable Connector
HEAD END
FOOT END
GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A
