Zenith SeRieS
5
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190B MARCH 2013

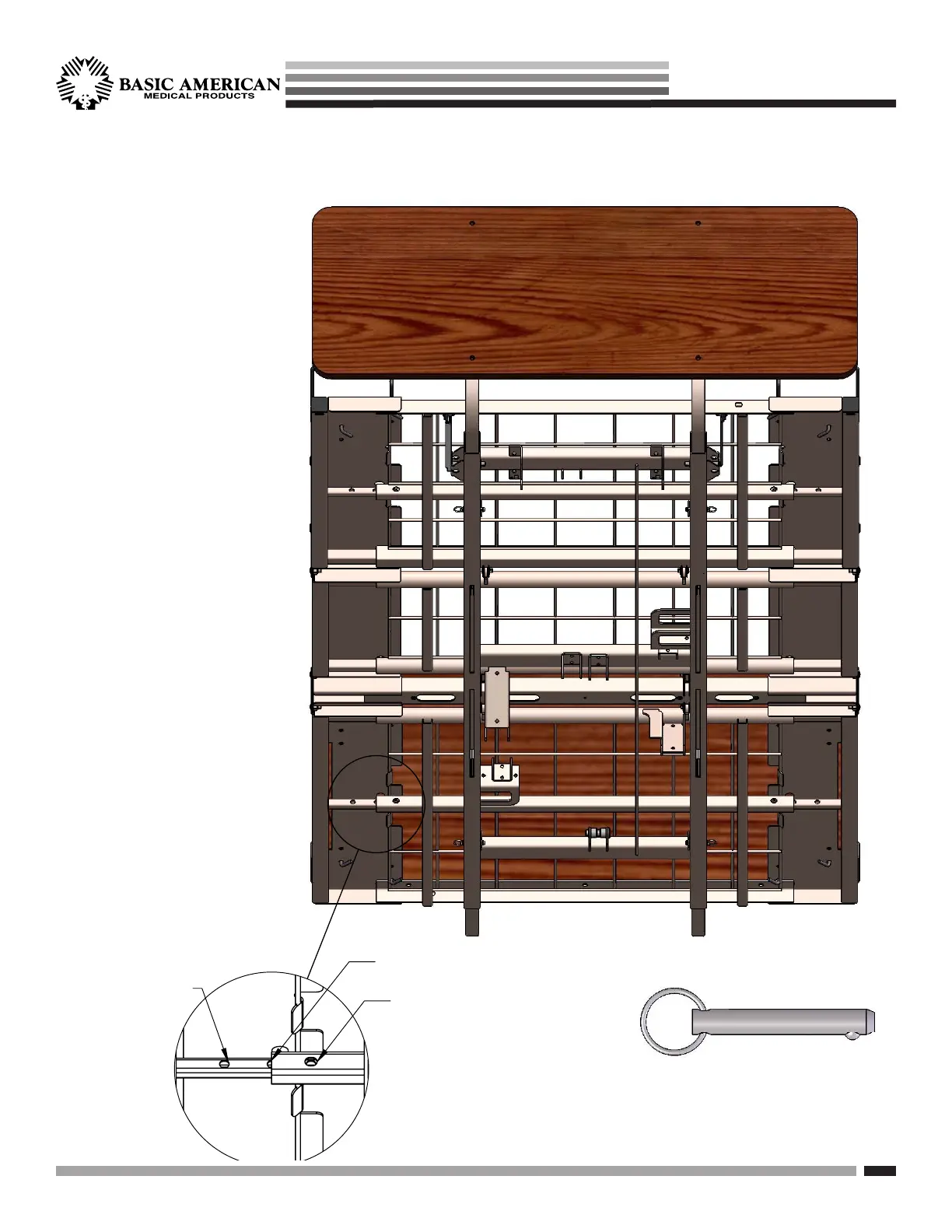

SLEEP DECK POSITIONING - 3 HOLE VARIATIONS
1. Your Expandable/Retractable
Sleep Deck can be set into
three positions:
a. Fully retracted = 35.00”
b. Expanded partly = 39.00”
c. Fully expanded = 42.00”
2. To adjust the deck positions,
first remove the quick-release
“detent” pins from underneath
the sleep deck.
3. The outside hole in the deck’s
mounting tubes is for a 35”
bed (decks fully retracted).
Push the decks fully inward
on both sides of the bed and
re-insert all the detent pins
through the holes at all four
corners shown (1, 2, 3, & 4).
4. The inside hole in the deck’s
mounting tubes is for a 42”
bed (decks fully expanded).
Remove the detent pins and
pull the decks fully outward
on both sides of the bed. Now
re-insert all the detent pins
through the holes at all four
corners shown.
5. The center hole in the deck’s
mounting tubes is for a 39”
bed (decks partly expanded).
Remove the detent pins and
pull the decks outward until
the center hole aligns with the
main frame holes. Re-insert
all the detent pins.
-
USE QUICK-RELEASE
“DETENT” PIN FOR
FAST REPOSITIONING
(PART 100-7925-009)
