ASSEMBLY
UNPACKING
Unpack the Basic-Fit Cycle where you will be using it. Place the carton
on a level flat surface. It is recommended that you place a protective
covering on your floor. Never open the box when it is on its side.
IMPORTANT NOTES
During each assembly step, ensure that ALL nuts and bolts are in
place and partially threaded.
Several parts have been pre-lubricated to aid in assembly and usage.
Please do not wipe this off. If you have difficulty, a light application of
lithium grease is recommended.
WARNING!
There are several areas during the assembly process that special
attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened.
If the assembly instructions are not followed correctly, the Basic-Fit
Cycle could have parts that are not tightened and will seem loose and
may cause irritating noises.
To prevent damage to the Basic-Fit Cycle, the assembly instructions
must be reviewed and corrective actions should be taken.
TOOLS REQUIRED:
F 2.5 mm Allen Wrench
F 5 mm Allen Wrench/Screwdriver
F 6 mm Allen Wrench
F Flat Wrench (17mm)
PARTS INCLUDED:
F 1 Main Frame
F 1 Front Stabilizer Tube
F 1 Rear Stabilizer Tube
F 1 Handlebar Set
F 1 Bicycle Saddle
F 2 Pedals
F 2 Levelers
F 1 Hardware Kit
SERIAL NUMBER
MODEL: ICR-BF
* Use the information above when calling for service.
ENGLISH
ENGLISH

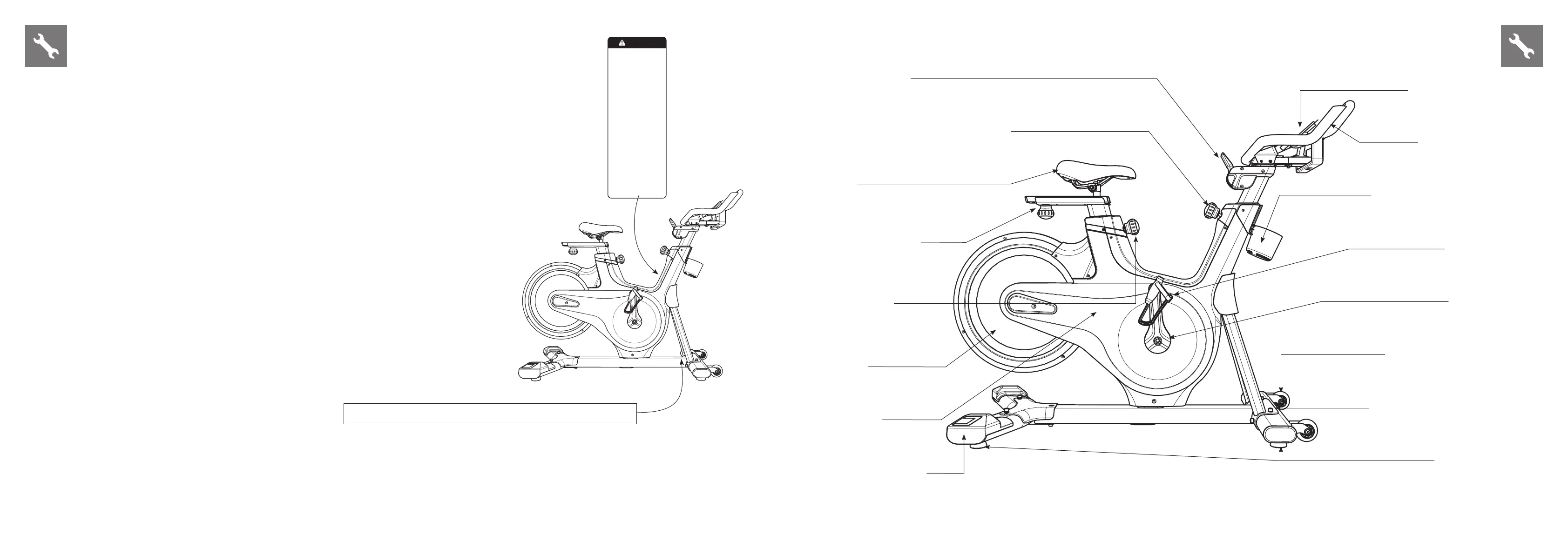

RESISTANCE LEVER
HANDLEBAR HEIGHT ADJUSTMENT KNOB
SADDLE
HORIZONTAL SADDLE
ADJUSTMENT KNOB
SADDLE HEIGHT
ADJUSTMENT KNOB
FLYWHEEL
MAIN FRAME
REAR STABILIZER TUBE
DEVICE HOLDER
HANDLEBARS
WATER BOTTLE HOLDER
PEDALS
CRANK
TRANSPORT WHEELS
FRONT STABILIZER TUBE
LEVELERS
SPINNING PEDALS CAN CAUSE
INJURY. THIS BASIC-FIT CYCLE DOES
NOT HAVE A FREEWHEEL, SO PEDAL
MOTION IS DIRECTLY TIED TO
MOTION OF FLYWHEEL. USE BRAKE
TO STOP MOTION OF PEDALS AND
FLYWHEEL.
MAX USER WEIGHT - 136 KG/300 LBS.
1
2
3
4
5
6
7
WARNING
KEEP CHILDREN UNDER THE AGE OF 14
AWAY FROM EXERCISE EQUIPMENT
APPLY MAXIMUM BRAKE RESISTANCE
TO BIKE WHEN NOT IN USE TO
PREVENT INJURIES CAUSED BY
MOVING CRANK ASSEMBLY AND
FLYWHEEL.
ALL WARNINGS AND INSTRUCTIONS
SHOULD BE READ AND PROPER
INSTRUCTION OBTAINED PRIOR TO
USE. USE THE BASIC-FIT CYCLE FOR
ITS INTENDED PURPOSE ONLY.
CONSULT A PHYSICIAN BEFORE USING
THE BASIC-FIT CYCLE.
SET UP AND OPERATE THE BASIC-
FIT CYCLE ON A SOLID LEVEL
SURFACE. CARE SHOULD BE TAKEN
IN MOUNTING AND DISMOUNTING
THE BASIC-FIT CYCLE. BEFORE
DISMOUNTING, BRING THE PEDALS
TO A COMPLETE STOP.
WARNING — LOCK THE BASIC-FIT
CYCLE WHEN NOT IN USE BY
SETTING BRAKE TO MAXIMUM
RESISTANCE.
