INSTALLATION GUIDE
*For assemblies including ange nuts (intergrated washer nuts), you will not have at washers in your kit.
9

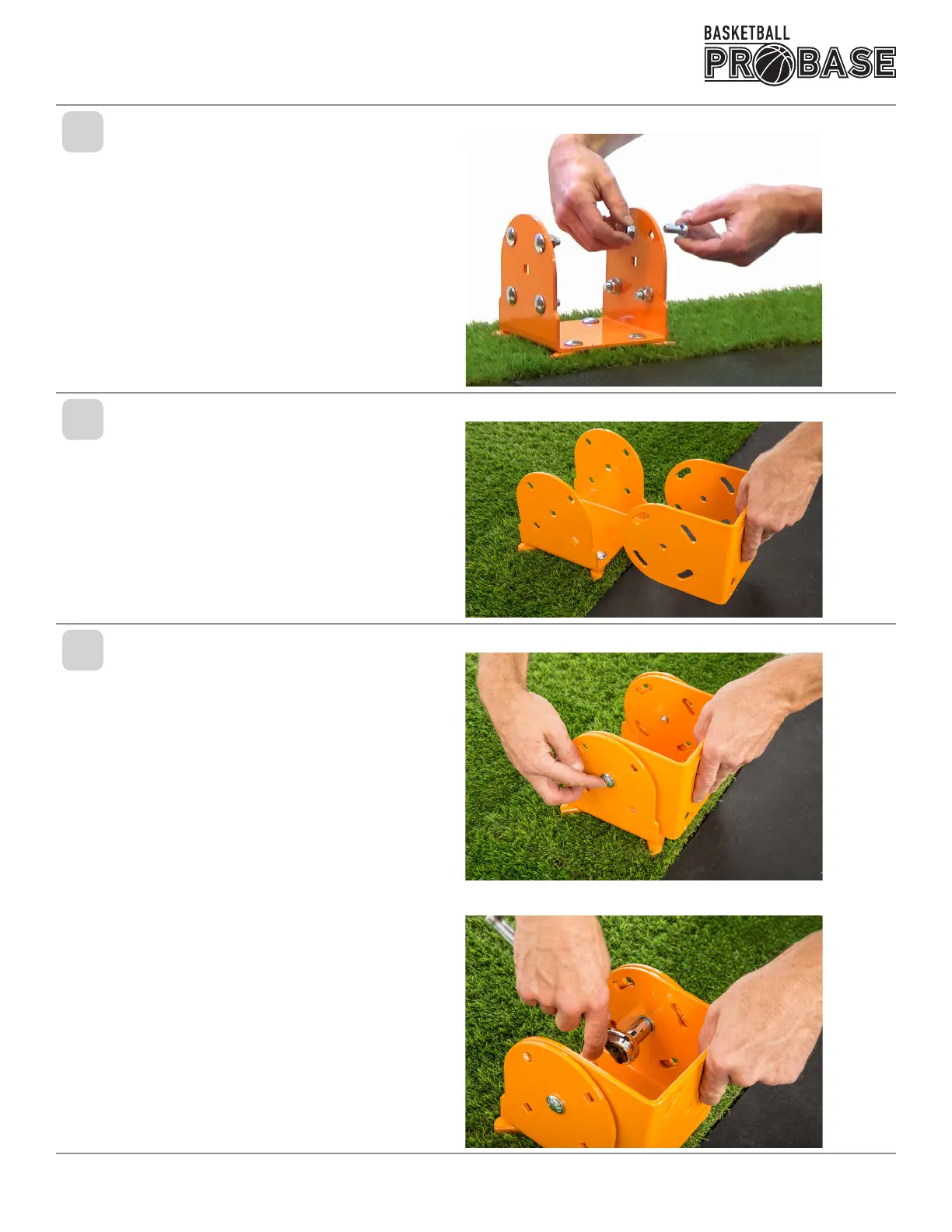

REMOVE TAPPING BLOCK,
TAPPING BLOCK HOLDER
AND HARDWARE
Once the stake is rmly inserted
into the ground, remove the tapping
block (G), the tapping block
holder (H) the 8 bolts (J), the 8 at
washers*, the 8 nuts and set aside.
9.1
10
INSERT THE PIVOT
Insert the pivot (C) into the pivot
base (D).
10.1
11
SECURE THE TWO PIVOT
PARTS TOGETHER
Align the middle holes of the two
pivot parts and secure with 2 bolts (J),
2 at washers* (L) and 2 nuts (K).
11.1
Tighten rmly.
11. 2
