1.5 Mechanical Specifications
The camera housing conforms to protection class IP30 assuming that the lens mount is covered by
a lens or by the protective plastic cap that is shipped with the camera.
1.5.1 Camera Dimensions and Mounting Points

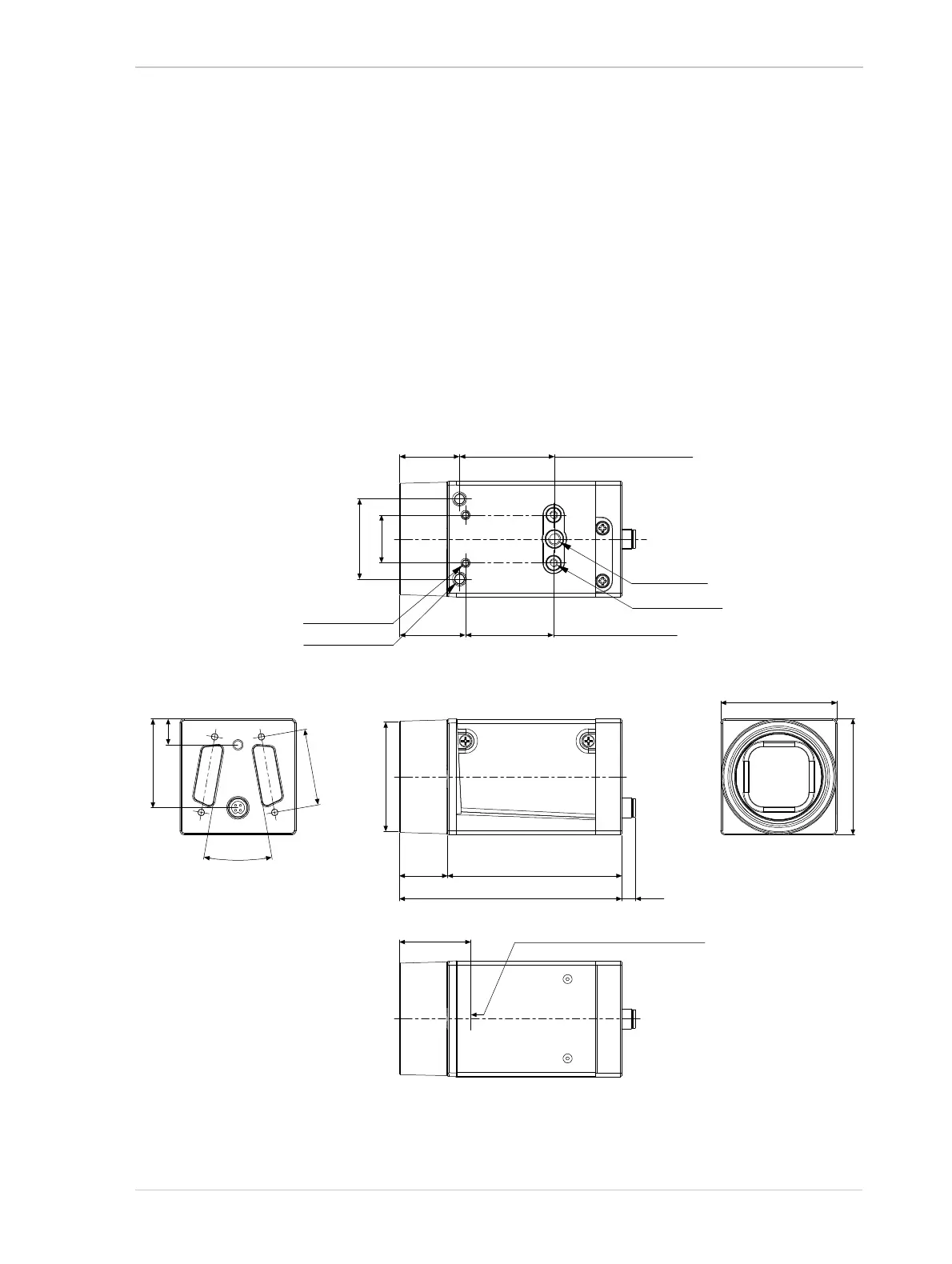

The camera dimensions in millimeters are as shown in Figure 5.
Camera housings are equipped with mounting holes on the bottom as shown in the drawings.
15
23.7 (dimension for M3)
20
12
2x M2; 3 deep
2x M3; 3 deep
2x M2; 3 deep
22 (dimension for M2)
M3; 3 deep
16.5
Bottom
Ø 27.46
12
43.5
55.5
29
3.4
17.526
Top
Photosensitive surface of the sensor
20°
1
9
.
2
22.25
6.5
29
Fig. 5: Mechanical Dimensions (in mm)
