BE1-50/51B
5

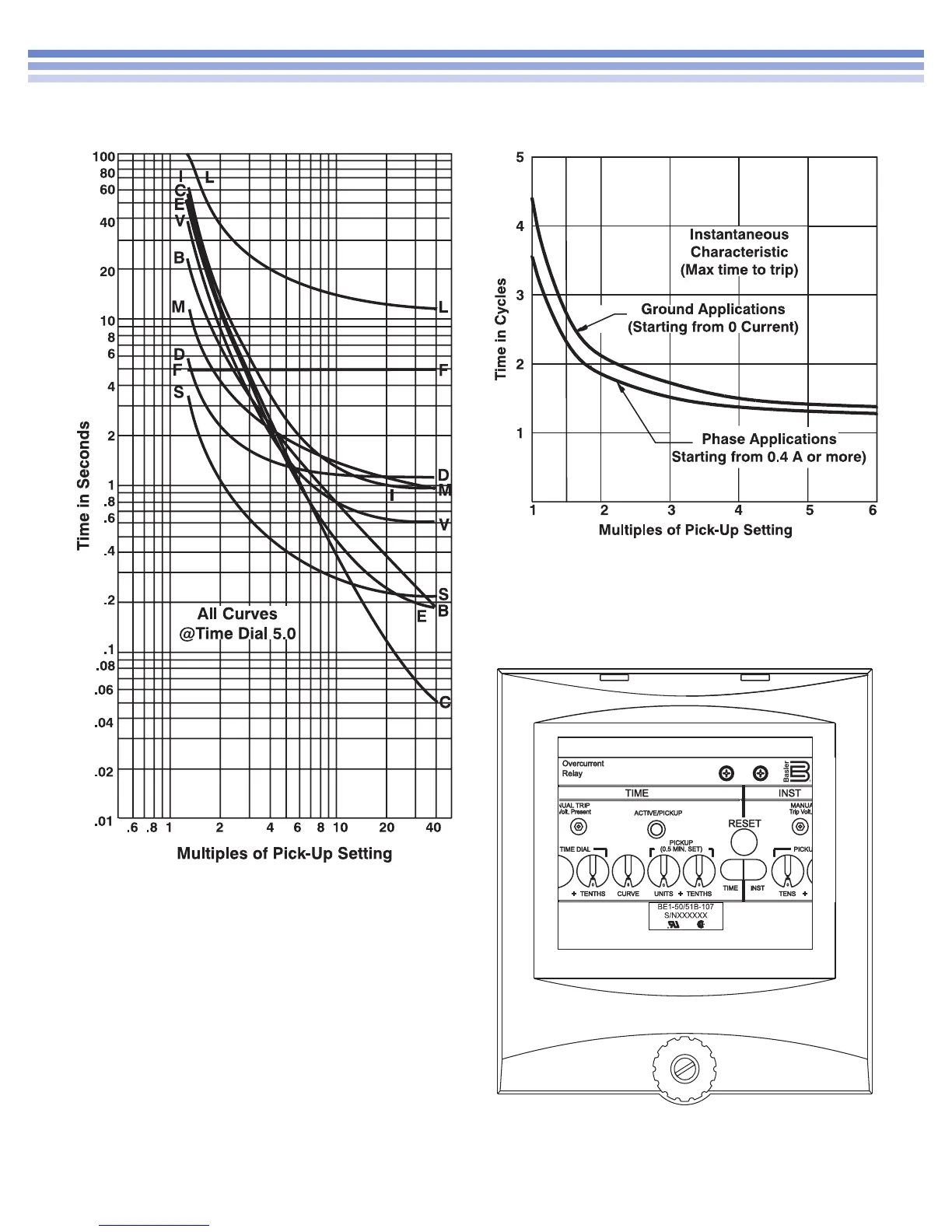

Figure 3 - Instantaneous Characteristics
CO and BS142 curves in 100 and 200 series models:
S=Short Inverse M=Moderately Inverse B=BS142 Very Inverse
L=Long Inverse I=Inverse C=BS142 Extremely Inverse
D=Definite Time V=Very Inverse F=Fixed Time
E=Extremely Inverse
Figure 2 - Time-Current Characteristics
IAC curves in 200 series models only:
• Short Inverse
• Inverse
• Very Inverse
• Extremely Inverse
• Long Inverse
FUNCTIONAL DESCRIPTION, continued
Figure 4 - Front Panel, S1 Case
