9137200997 Rev D BE1-51 Installation 4-3

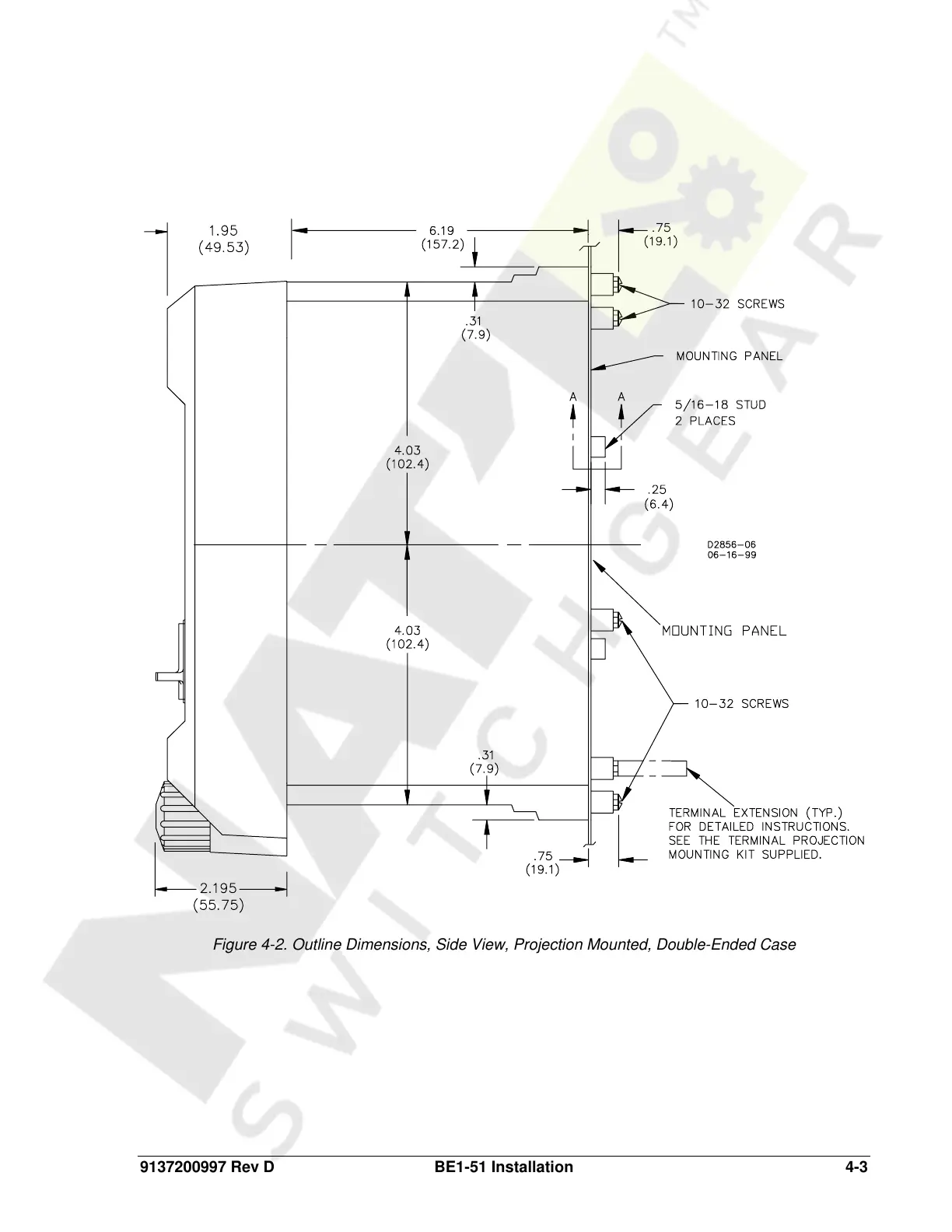

Figure 4-2. Outline Dimensions, Side View, Projection Mounted, Double-Ended Case
Courtesy of NationalSwitchgear.com
