Basler BE1-51 - Page 71

9137200997 Rev D BE1-51 Time Overcurrent Characteristic Curves A-9
P0049-14

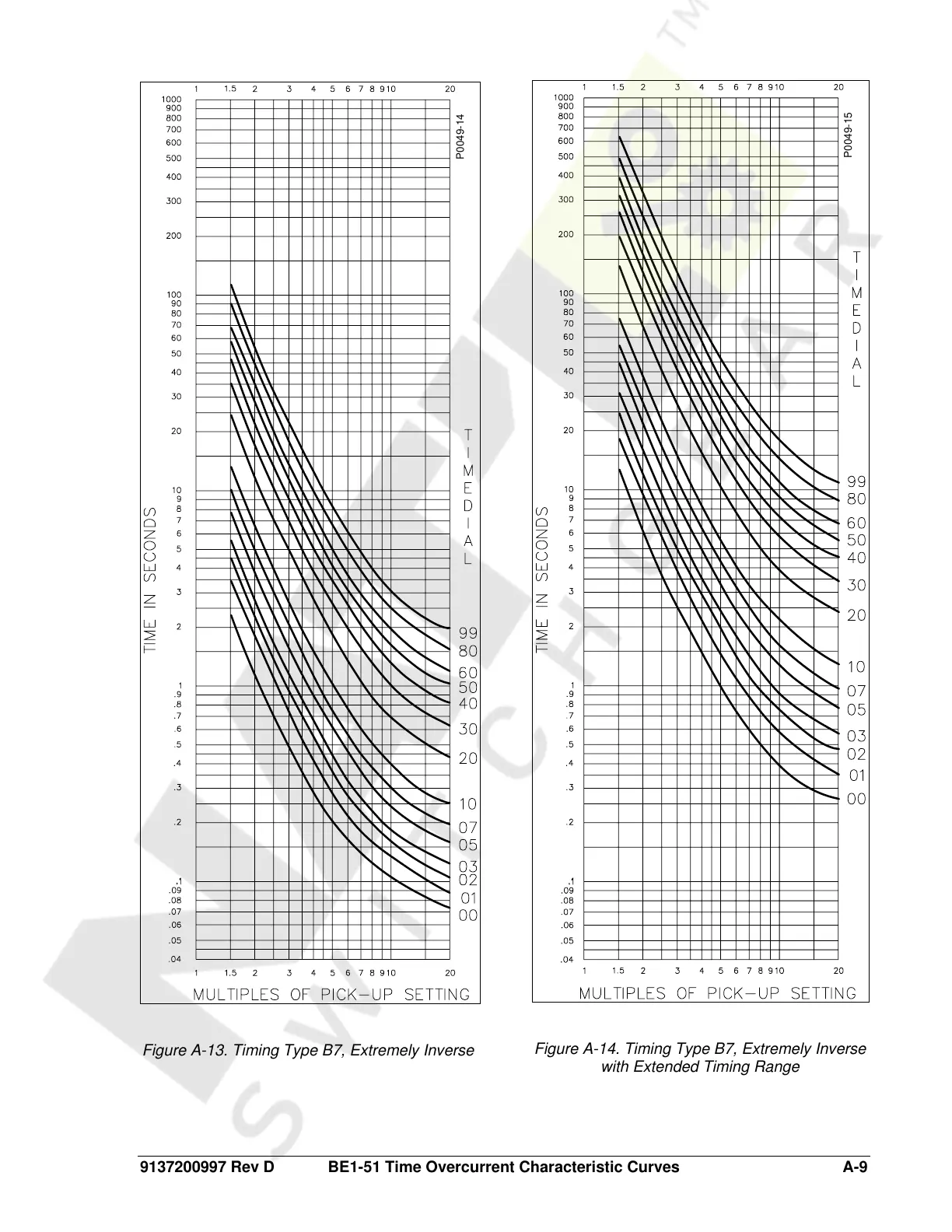

Figure A-13. Timing Type B7, Extremely Inverse
P0049-15
Figure A-14. Timing Type B7, Extremely Inverse
with Extended Timing Range
