A-18 BE1-51 Time Overcurrent Characteristic Curves 9137200997 Rev D
P0049-32

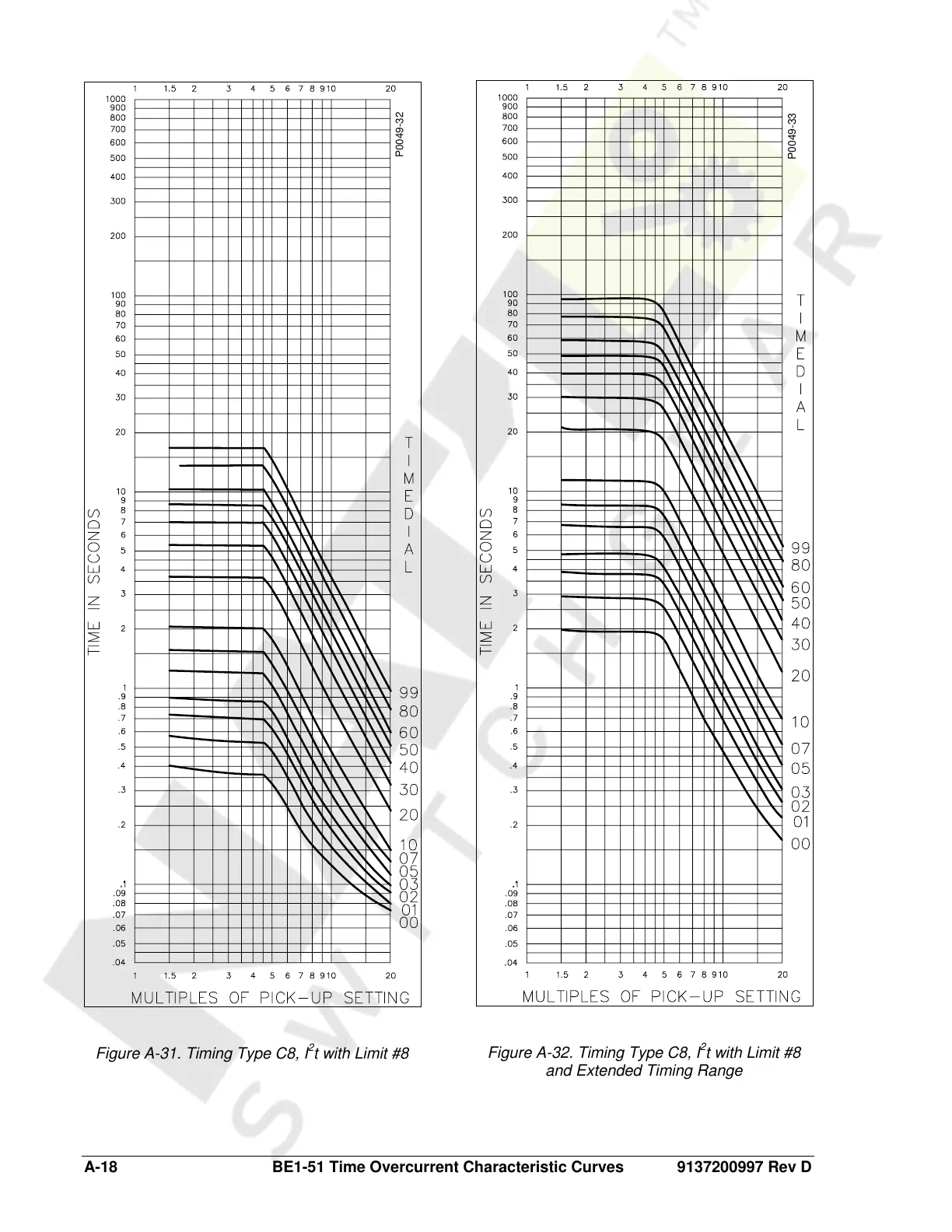

Figure A-31. Timing Type C8, I
2
t with Limit #8
P0049-33
Figure A-32. Timing Type C8, I
2
t with Limit #8
and Extended Timing Range
