Batca Fusion 2 - Page 14

Batca Fitness Systems 14 Fusion 2 Owner's Manual

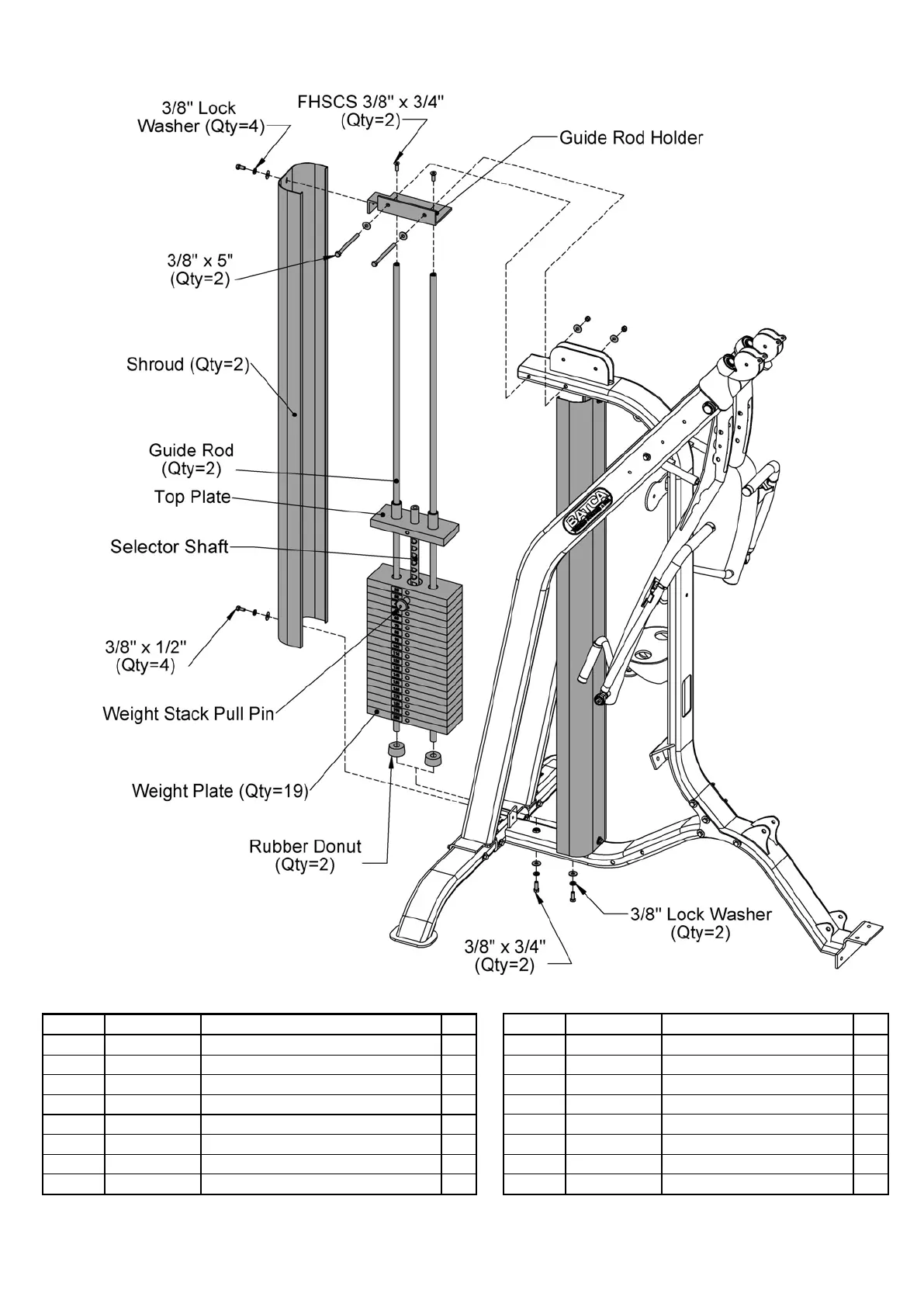

Figure 4
Step 4:
Item # Part # Description Qty
107 BFM-10299 Top Plate 1
108 BFM-50258 Selector Shaft 1
111 BFH-50192 Weight Stack Decals 2
116 BFH-50254 HCS 3/8”-16 X 3/4” P5 2
118 BFH-50279 HCS 3/8"-16 X 5" P5 2
123 BFM-51173 Weight Stack Pull Pin 1
183 BFH-50630 FHSCS 3/8"-16 X 3/4" 2
184 BFH-50631 HCS 3/8"-16 X 1/2" P5 4
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Part # Description Qty
6 BFM-51044 Guide Rod Holder 1
9 BFM-50529 Rubber Donut 2
10 BFM-50256 Weight Plate 19
12 BFM-51051 Guide Rod 2
38 BFM-51082 Weight Stack Shroud 2
56 BFH-50146 3/8" Flat Washer (Black) 10
58 BFH-50157 3/8"-16 Nylock (Black) 2
60 BFH-50147 3/8" Lock Washer (Black) 6
