Batca Fusion 2 - Page 30

Batca Fitness Systems 30 Fusion 2 Owner's Manual
Step 20:

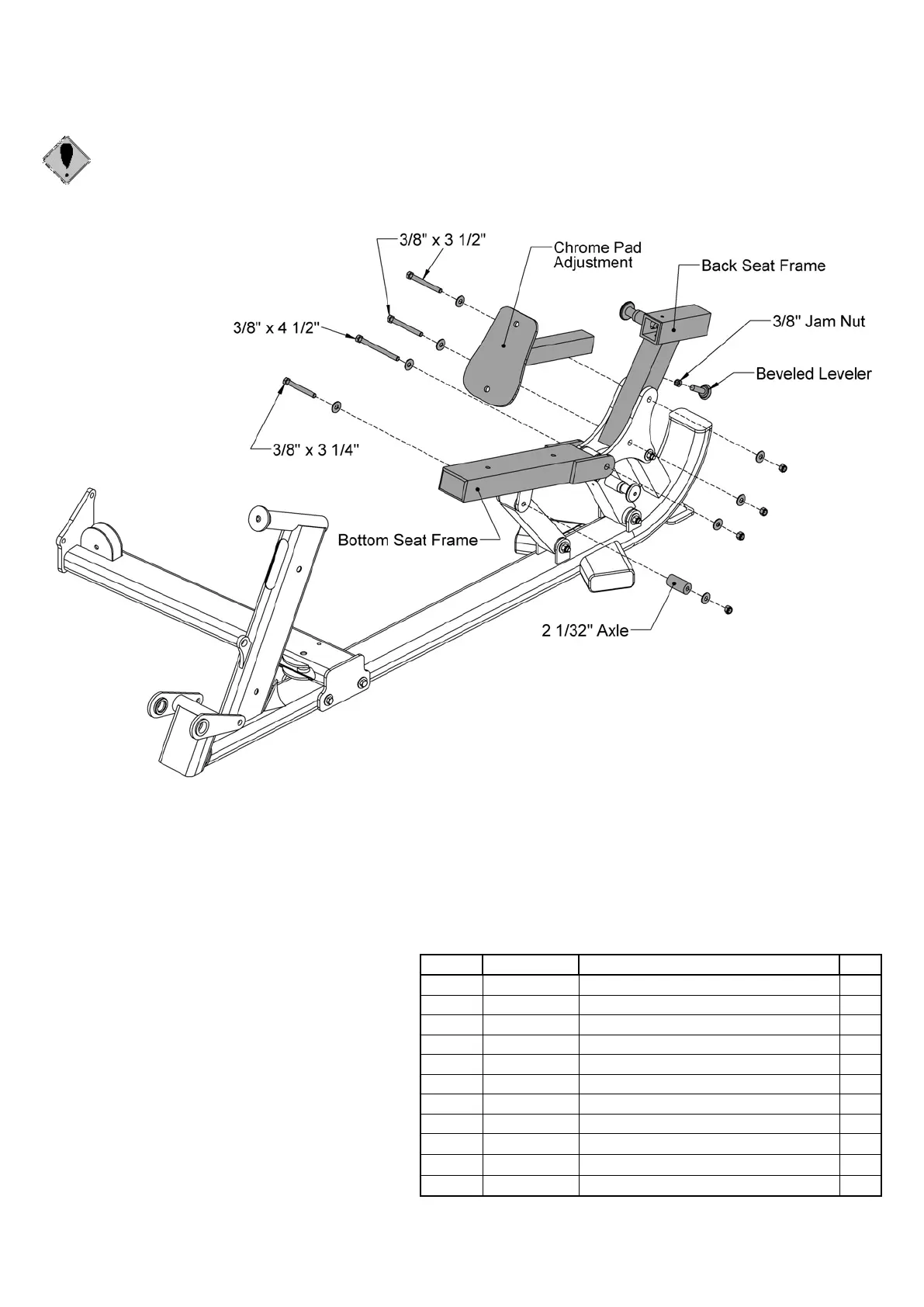

Figure 20
Item # Part # Description Qty
159 BFM-51155 2 1/32" Axle 1
164 BFM-10598 Bottom Seat Frame 1
165 BFM-10106 Chrome Pad Adjustment 1
166 BFM-10597 Back Seat Frame 1
56 BFH-50146 3/8" Flat Washer (Black) 8
82 BFH-50127 HCS 3/8"-16 X 3 1/2" P5 2
84 BFH-50131 HCS 3/8"-16 X 4 1/2" P5 1
69 BFH-50126 HCS 3/8"-16 X 3 1/4" P5 1
99 BFH-50149 3/8"-16 Jam Nut (Zinc) 1
98 BFH-50253 Beveled Leveler 1
58 BFH-50157 3/8"-16 Nylock (Black) 4
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Note: This step may be pre-assembled
