Batca Fusion 2 - Page 31

www.batcafitness.com 31 Fusion 2 Owner’s Manual
Step 21

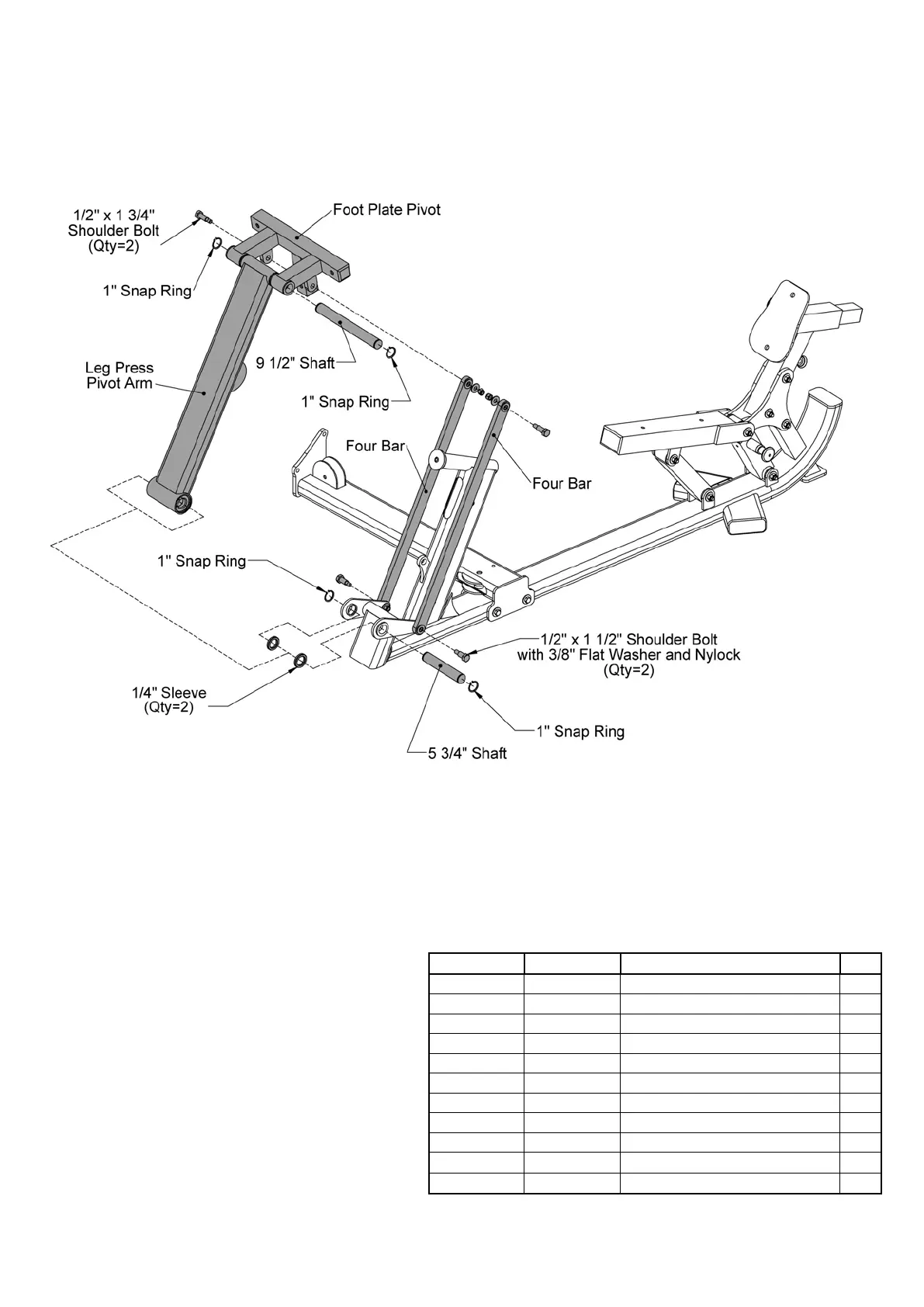

Figure 21
Item # Part # Description Qty
167 BFM-10591 Leg Press Pivot Arm 1
168 BFM-51150 5 3/4" Shaft 1
169 BFM-10590 Foot Plate Pivot 1
170 BFM-50252 Four Bar 2
171 BFM-51149 9 1/2" Shaft 1
188 BFH-50338 1/4” Sleeve 2
56 BFH-50146 3/8" Flat Washer (Black) 4
89 BFH-50610 1/2” x 1 1/2" Shoulder Bolt 2
90 BFH-50249 1/2” x 1 3/4” Shoulder Bolt 2
58 BFH-50157 3/8"-16 Nylock (Black) 4
55 BFH-50165 1" Snap Ring 4
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
