Batca Fusion 2 - Page 33

www.batcafitness.com 33 Fusion 2 Owner’s Manual

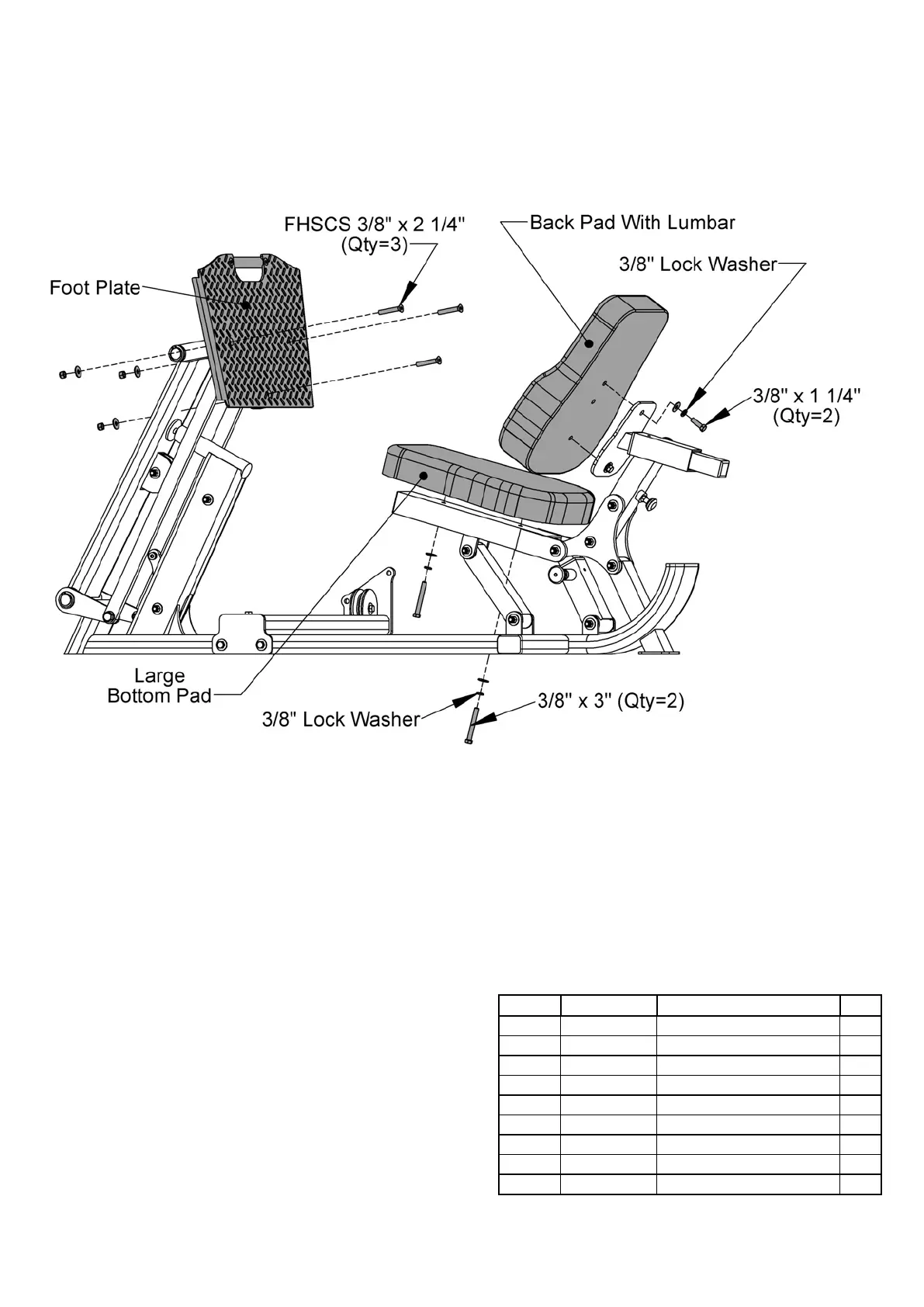

Figure 23
Item # Part # Description Qty
172 BFL-50128 Foot Plate 1
173 BFU-10117 Large Bottom Pad 1
174 BFU-10120 Back Pad With Lumbar 1
56 BFH-50146 3/8" Flat Washer (Black) 4
60 BFH-50147 3/8" Lock Washer (Black) 4
61 BFH-50119 HCS 3/8"-16 X 1 1/4" P5 2
63 BFH-50125 HCS 3/8"-16 X 3" P5 2
85 BFH-50145 FHSCS 3/8"-16 X 2 1/4" 3
58 BFH-50157 3/8"-16 Nylock (Black) 3
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Step 23:
