Batca Fitness Systems 38 Fusion 2 Owner's Manual
Final Assembly and Troubleshooting

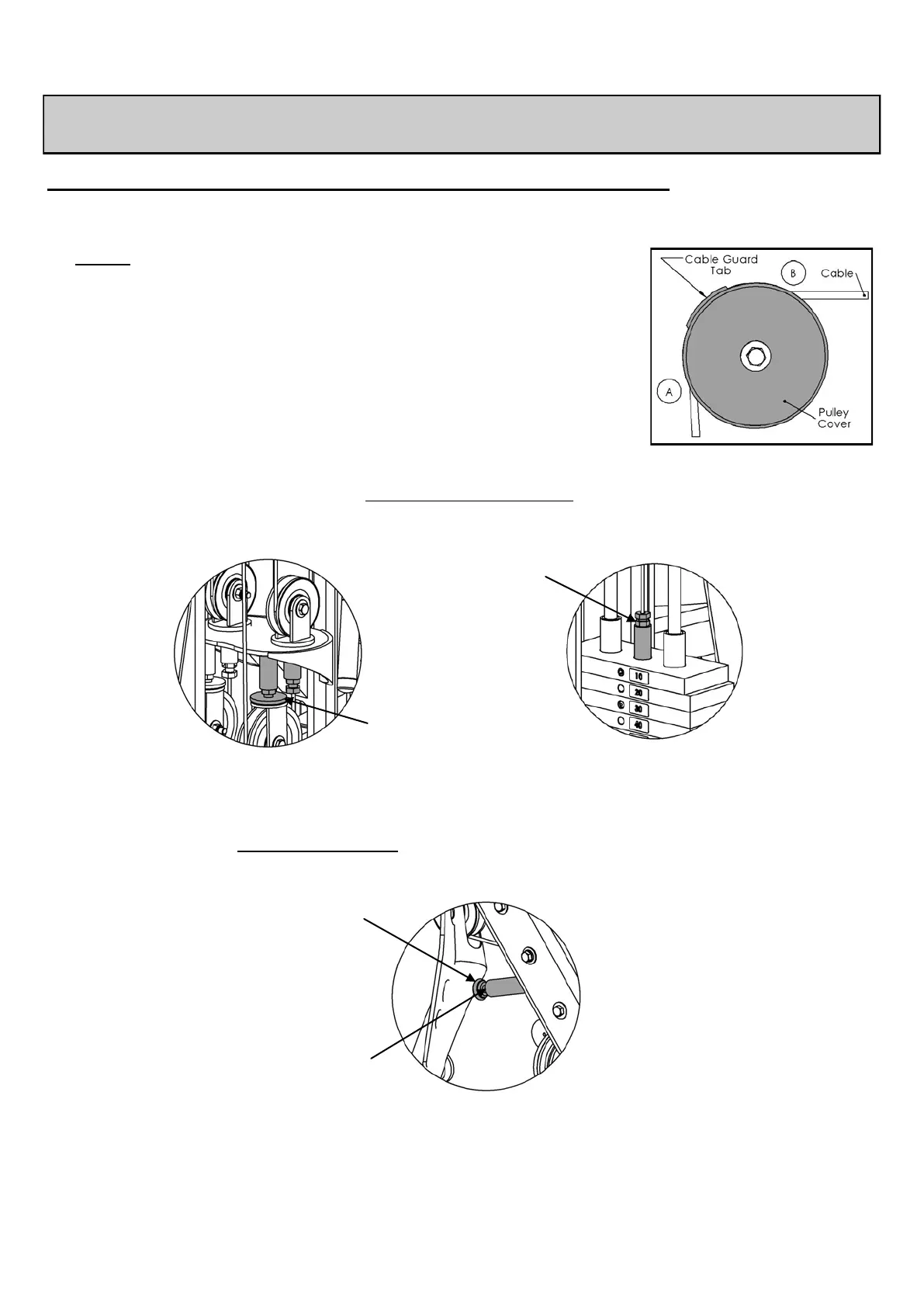

Pulley Cover
BFM-50345
IMPORTANT - Check These Components Before Using Gym:
Position the cable guard tab on the Pulley Cover so that the tab prevents the cable from
coming out of it’s track on the 3 1/2” Pulley. An example of this positioning can be seen in
the figure to the right. The cable guard tab should be positioned so that it is in the middle of
the cable wrap on the 3 1/2” Pulley, between points “A” and “B”. This will allow better
protection and prevent the cable from rubbing the cable guard tab. Refer to Steps 13, 14,
and 15.
Each Cable with a threaded bolt on either end must be threaded at least 1/2” into its attachment, whether it be a Free Floater,
Lockout Free Floater, or the Top Plate of the weight stack. Each must also be secured with a 1/2” Jam Nut to ensure a safe and
proper connection. Refer to Steps 11, 12, 13, and 24. See Figures below.
Each Adjustment Leveler must be threaded 1/2” into its counterpart. Each must be secured with a 3/8” Jam Nut to ensure a
safe proper connection. Refer to Steps 2, 18, and 20. See Figures below.
Top Plate
1/2” Jam Nut
Free Floater w/ Lockout
Large Flat Leveler
Beveled Leveler
3/8” Jam Nut
