www.batcafitness.com 7 LD-4 Owner’s Manual
Make sure the two set
screws in the Guide Rod
Sleeve are facing towards the
front of the weight stack and the
sleeve is pushed up against the
rubber grommet of the Guide Rod
Plate. Once it is in place, tighten
the set screws to keep it in place.
Item # Part # Description Qty
7 BFP-10839 Cable Lockout Plate 1
8 BFP-10827 Guide Rod Plate 1
9 BFP-53259 Guide Rod Sleeve 2
10 BFM-10413 Top Weight Plate 1
11 BFM-50632 Weight Plate 19
12 BFP-51827 Guide Rod 2
13 BFM-50529 Rubber Donut 2
40 BFM-51173 Weight Stack Pin with Lanyard 1
14 BFP-10873 Left Handle 1
15 BFP-10872 Right Handle 1
62 BFP-51760 SHCS 3/8” x 3 1/2” 2
63 BFP-51884 SHCS 3/8” x 4 1/4” 2
64 BFP-51850 SHCS 3/8” x 5” 2
67 BFH-50204 3/8” Curved Washer 6
70 BFH-50146 3/8” Flat Washer 6
71 BFH-50157 3/8” Nylock 6

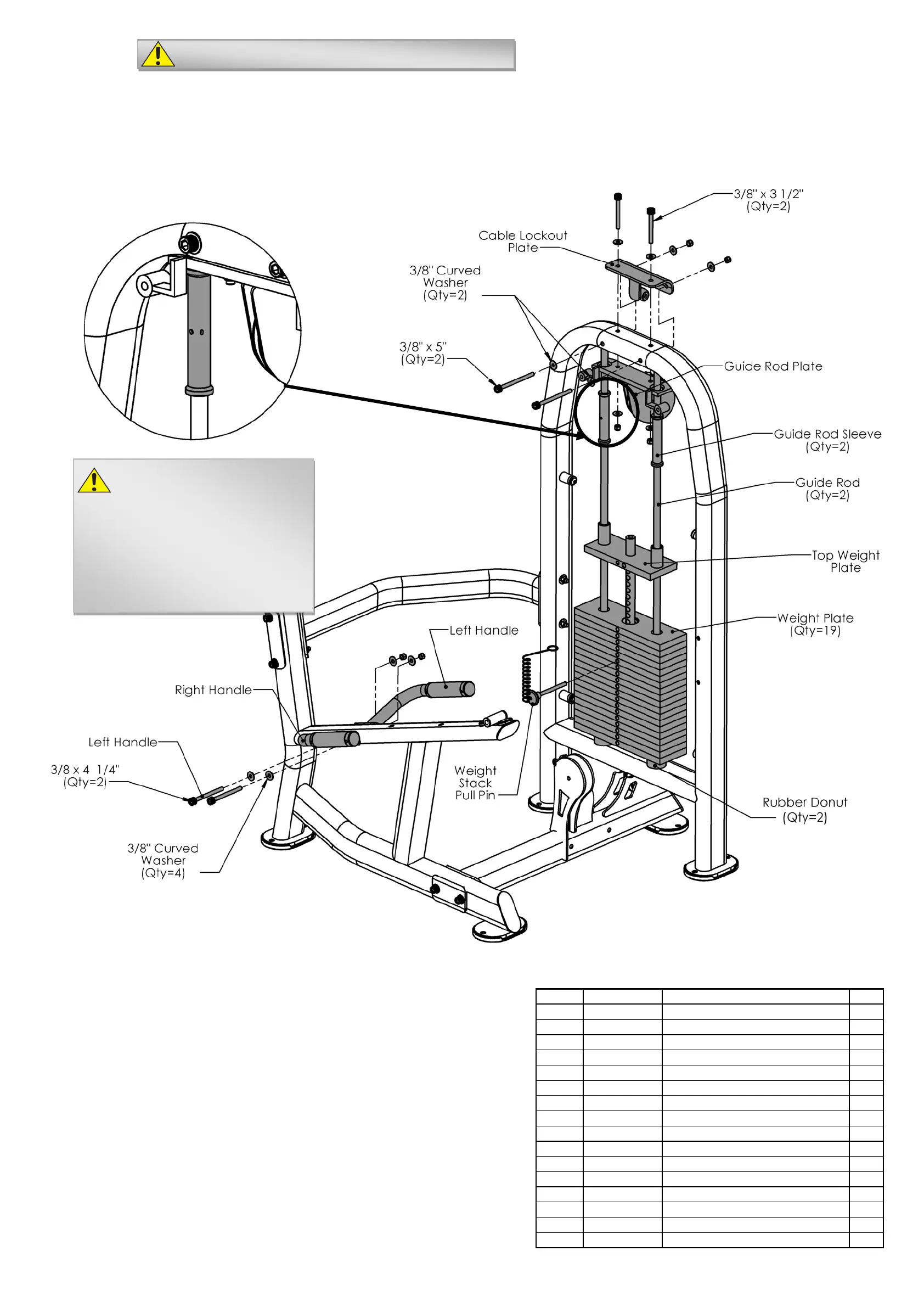

Step 3:
DO NOT TIGHTEN BOLTS UNTIL STEP 4
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Anywhere a washer is against the round side of a tube there is to be
a 3/8” CURVED WASHER instead of a 3/8” FLAT WASHER.
