This document provides instructions for the assembly, adjustment, and removal of DTC drawer runners, specifically for bathroom vanity drawers. It also helps users identify their drawer style to ensure correct application of the instructions.

Function Description:

The DTC drawer runner system is designed to provide smooth and reliable operation for drawers, commonly found in bathroom vanities. It incorporates features for precise adjustment of the drawer's position and a soft-close mechanism for quiet and gentle closing. The system allows for easy removal and reinstallation of drawers for maintenance or access.

Important Technical Specifications (Inferred):

Drawer Style Compatibility: Specifically designed for "DTC Drawers," distinguishing them from "Magic Box" and "Harn Drawers." This implies a unique mechanism or fitting specific to DTC systems.
Adjustment Mechanisms:
- Left/Right Adjustment: Utilizes a front screw for horizontal positioning.
- Up/Down Adjustment: Utilizes a back screw for vertical positioning.
- In/Out Adjustment: Achieved by pushing or pulling a lever located at the bottom sides of the drawer.
Release Mechanism: Involves turning a screw driver to release the drawer front and lifting a release handle to pull out the drawer.
Soft-Close Mechanism: An integrated feature that engages when the drawer is pushed fully in during reinstallation, ensuring a gentle and silent closing action.

Usage Features:

Drawer Style Identification: The manual provides clear visual guidance on how to identify the specific drawer style (Magic Box, Harn Drawers, or DTC Drawers) by uncliping a cover and observing the underlying mechanism. This is crucial for ensuring the correct instructions are followed.
Easy Adjustment: The system offers three distinct adjustment points (left/right, up/down, in/out) allowing users to precisely align their drawer fronts.
- Left/Right Adjustment: To adjust the drawer horizontally, the user turns the front screw clockwise or counter-clockwise until the desired position is achieved. This helps in achieving even gaps between drawer fronts.
- Up/Down Adjustment: For vertical alignment, the back screw is turned clockwise or counter-clockwise. This is particularly useful for ensuring drawer fronts are level with each other or with the vanity top.
- In/Out Adjustment: This feature allows the user to adjust how far the drawer front protrudes or recedes from the cabinet frame. It is performed by pushing or pulling a lever located on both sides at the bottom of the drawer. This helps in achieving a flush look or accommodating specific design preferences.

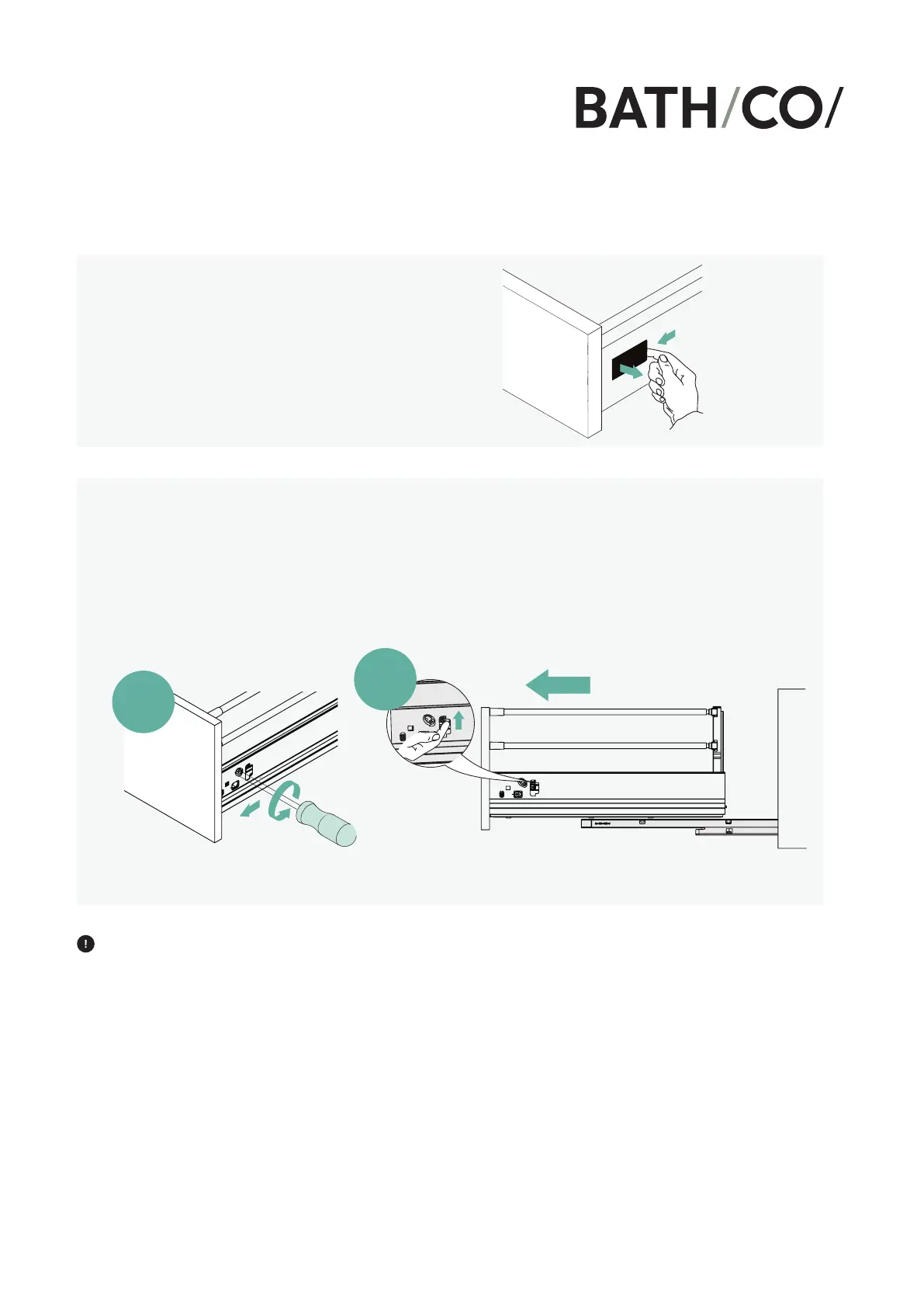

Simple Removal Process: The drawer can be removed in two main steps:
1. Releasing the drawer front by turning a screw with a screwdriver.
2. Lifting a release handle and then pulling the drawer out. This process is designed to be straightforward, enabling users to remove drawers for cleaning, access to the cabinet interior, or maintenance.
Reinstallation with Soft-Close Engagement: Reinstalling the drawer is as simple as pushing it fully in. An important note highlights that pushing the drawer fully in is necessary to engage the soft-close mechanism, ensuring it functions correctly after reinstallation.

Maintenance Features:

Accessible Adjustment Points: The adjustment screws are readily accessible once the cover is unclipped, simplifying the process of fine-tuning drawer alignment.
Removable Covers: Both for identification and adjustment, covers on the sides of the drawer can be unclipped. This design allows for easy access to the underlying mechanisms without requiring specialized tools or complex disassembly.
Drawer Removal for Cleaning/Repair: The ability to easily remove the entire drawer facilitates cleaning of both the drawer and the cabinet interior, as well as potential repairs or access to the drawer runners themselves if needed.
Soft-Close Mechanism Maintenance (Implicit): While not explicitly detailed, the instruction to "push the drawer fully in to engage the soft close mechanism" implies that proper reinstallation is key to maintaining the functionality of this feature. Should the soft-close mechanism not work, checking for full engagement during reinstallation would be a primary troubleshooting step.

In summary, the DTC drawer runner system is designed for user-friendly installation, precise adjustment, and convenient maintenance, making it a practical choice for bathroom vanity applications where smooth operation and aesthetic alignment are important. The clear, step-by-step instructions, complemented by diagrams, ensure that users can effectively manage their DTC drawers.
