8. Plug the new display cable into the wiring harness.
9. Test for correct operation.
10. Gently push the cable back into the frame aperture.
11. Refit plastic shroud ensuring the clip secures the shroud into the
frame aperture.
12. Refit the cable cover/spiral wrap.
13. Ensure that the user is provided with this instruction manual.

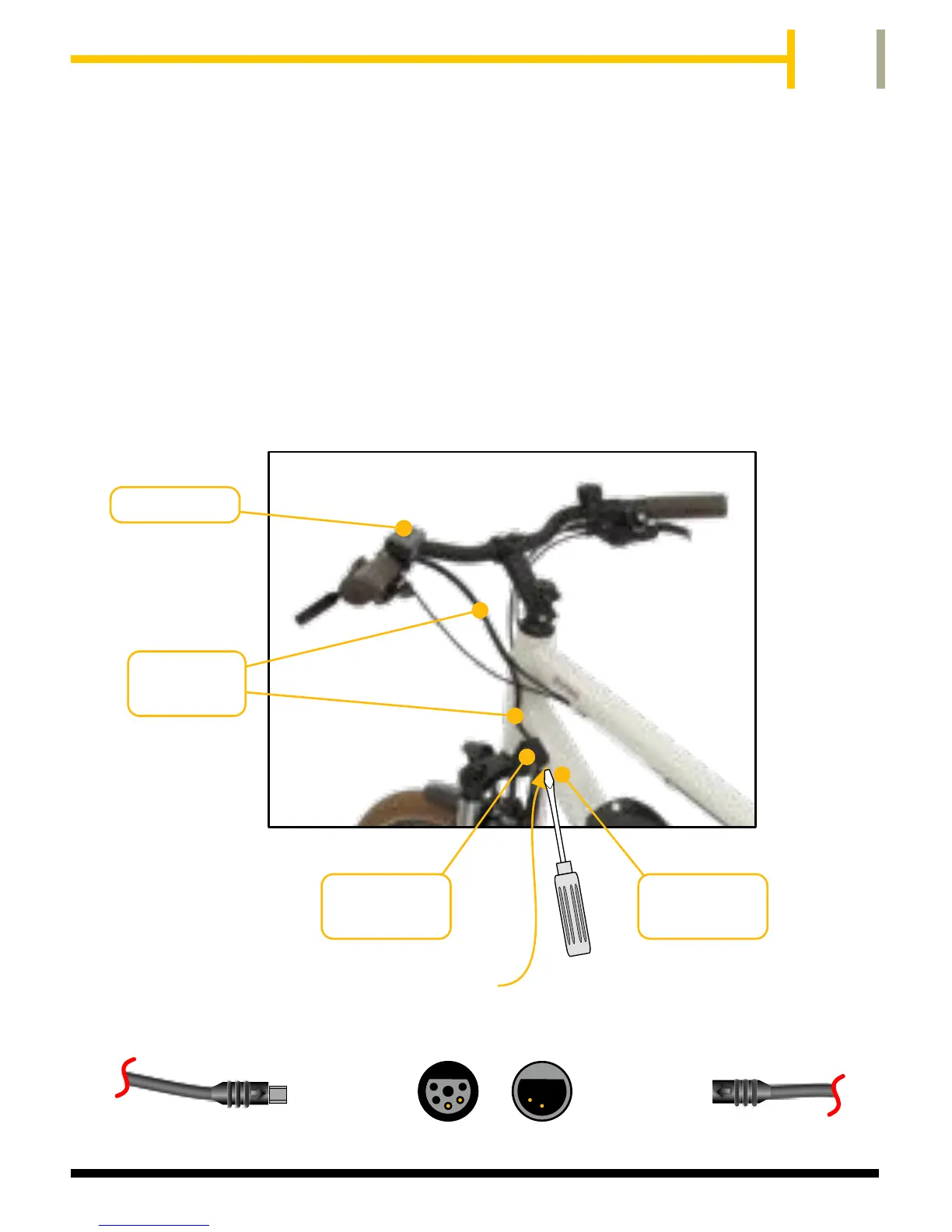

PLUG &
SOCKET
PLASTIC
SHROUD
DISPLAY
SPIRAL
WRAP
AROUND
WIRING
HARNESS
INSIDE
FRAME
APERTURE
EXISTING
GENTLY INSERT
SCREWDRIVER
BLADE HERE
ALPHA MODEL
USED AS
EXAMPLE
OTHER MODELS
SIMILAR
PLUG ON
DISPLAY
CABLE
SOCKET ON
WIRING
HARNESS
