24000CVF/SVF Valves
June 2017
13

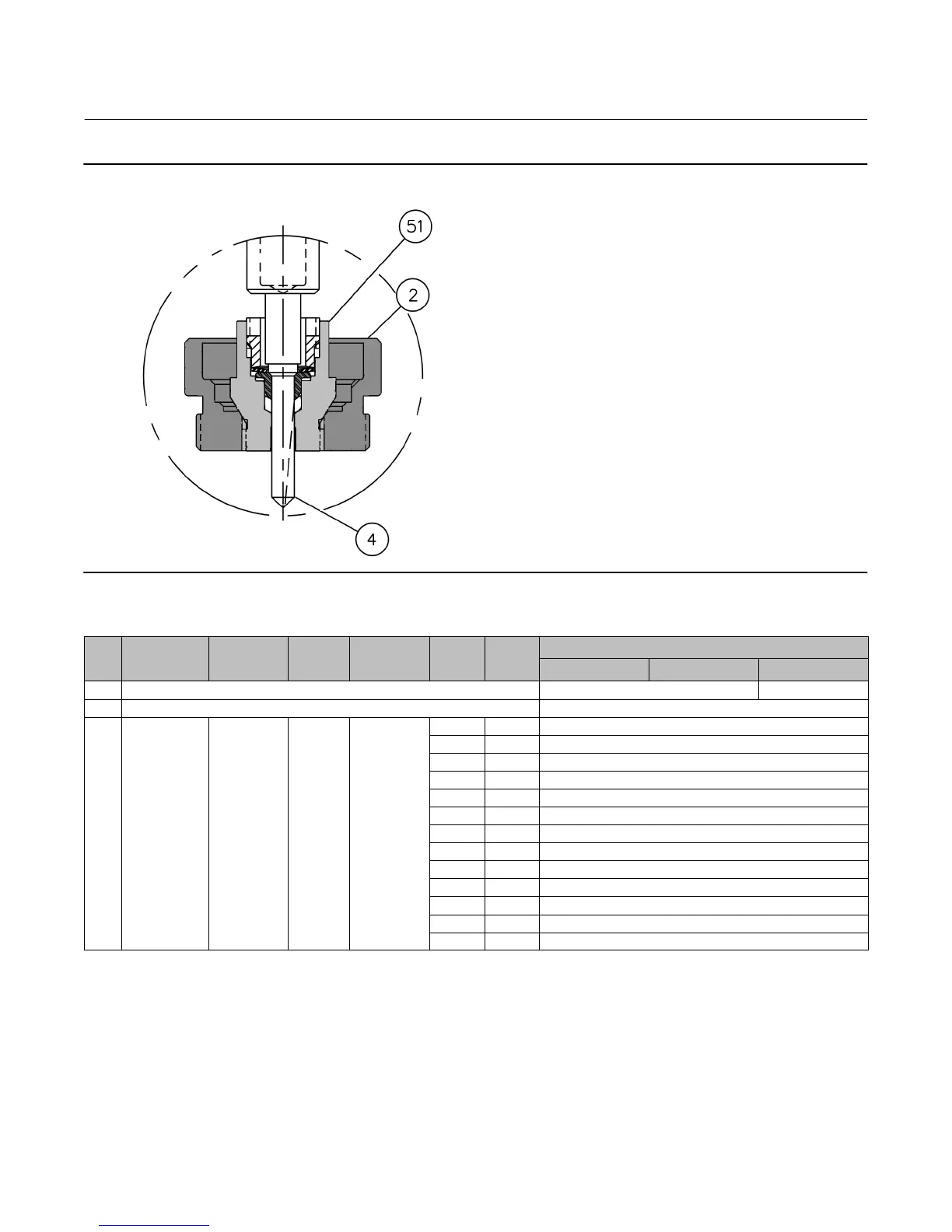

Figure 4. Optional Baumann 151 Low Flow Trim Assembly
E1246
Table 4. Plug and Seat Ring for Baumann 151 Trim
KEY
NO.
DESCRIPTION PLUG TYPE
PLUG
SERIES
ORIFICE
DIAMETER
mm (Inch)
C
v
K
v
VALVE SIZE
DN 15 (NPS 1/2) DN 20 (NPS 3/4) DN 25 (NPS 1)
2* Seat Ring 24000-135 24000-345
51* Seat Sub-Assembly 24151-20
4*
Plug & Stem
Assy
Modified
Equal % Low
Flow
151 3.96 (0.156)
0.00013 0.0001 24151-2-101-151
0.00025 0.0002 24151-3-101-151
0.0005 0.0004 24151-4-101-151
0.001 0.0009 24151-5-101-151
0.002 0.0017 24151-6-101-151
0.004 0.003 24151-7-101-151
0.008 0.007 24151-8-101-151
0.015 0.013 24151-9-101-151
0.03 0.026 24151-10-101-151
0.06 0.052 24151-11-101-151
0.1 0.86 24151-12-101-151
0.2 0.17 24151-24-101-151
0.45 0.39 24151-25-101-151
*Recommended spare parts
