24000CVF/SVF Valves
June 2017
18

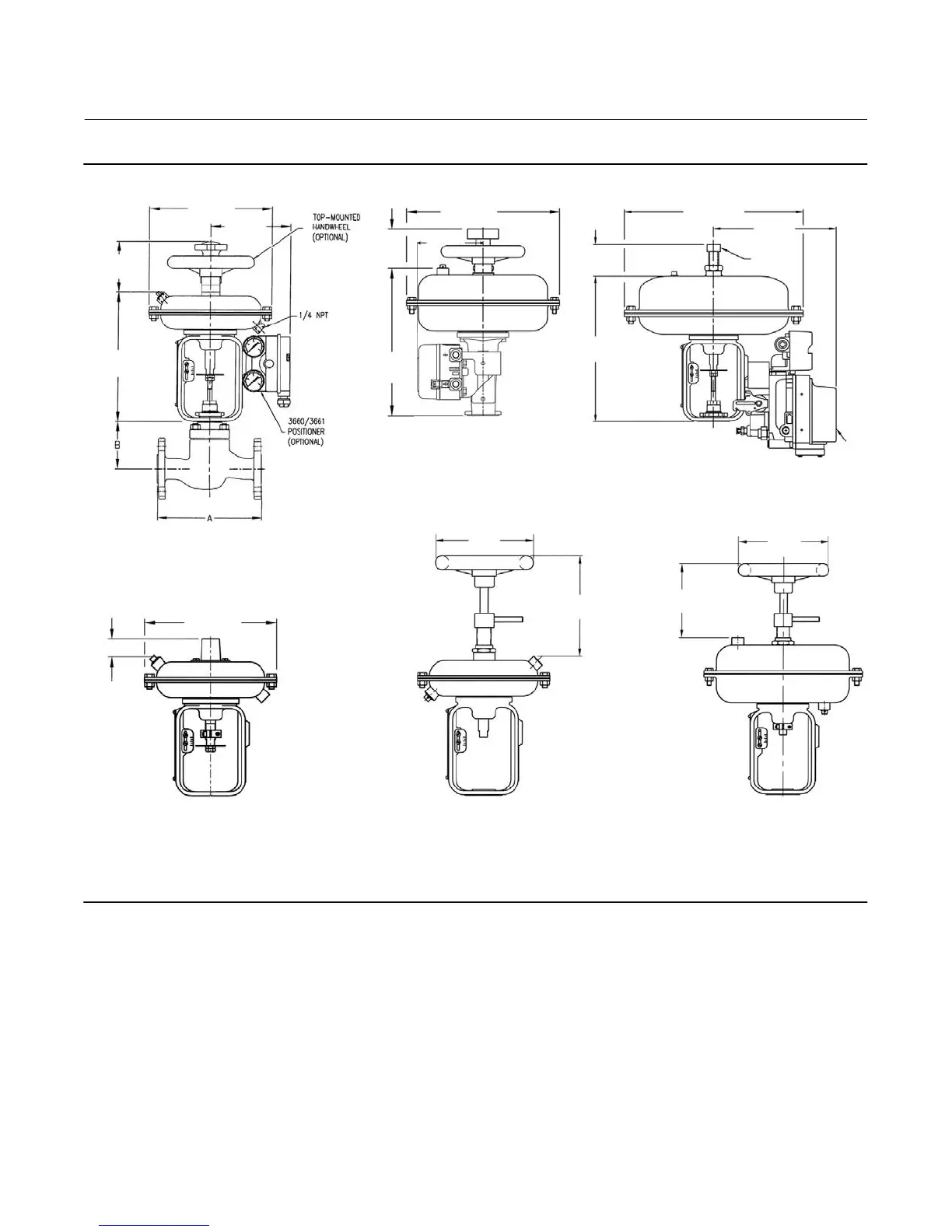

Figure 8. Dimensional Drawings
NOTE: ACTUATOR REMOVAL REQUIRES 115 mm (4.5 INCHES) VERTICAL CLEARANCE.
216
(48.5)
279
(411.0)
333
(413.1)
216
(48.50)
160
(46.3)
160
(46.3)
94
(3.7)
141
(5.5)
127 (5.0)
276
(10.9)
60
(2.4)
271
(10.7)
229
(9.0)
3/4 INCH
SQUARE
31 (1.24)
163 (6.4)
MAX
130
(5.1) MAX
E1257
227
(8.9)
72
(2.8)
24000CVF/SVF FLANGED
WITH BAUMANN 32 ATO
ACTUATOR WITH HANDWHEEL
BAUMANN 54 ATO ACTUATOR
WITH HANDWHEEL AND
DVC2000
BAUMANN 70 ATO ACTUATOR
WITH OPTIONAL FIELDVUE
DIGITAL VALVE CONTROLLER
BAUMANN 32 ACTUATOR WITH
ADJUSTABLE
OPEN / CLOSE DUAL TRAVEL STOPS
BAUMANN 32 ATC / FAIL OPEN
ACTUATOR WITH HANDWHEEL
BAUMANN 54 ATC / FAIL OPEN
ACTUATOR WITH HANDWHEEL
mm
(inch)
