Instruction Manual
D103360X012
24000CVF/SVF Valves
June 2017
16

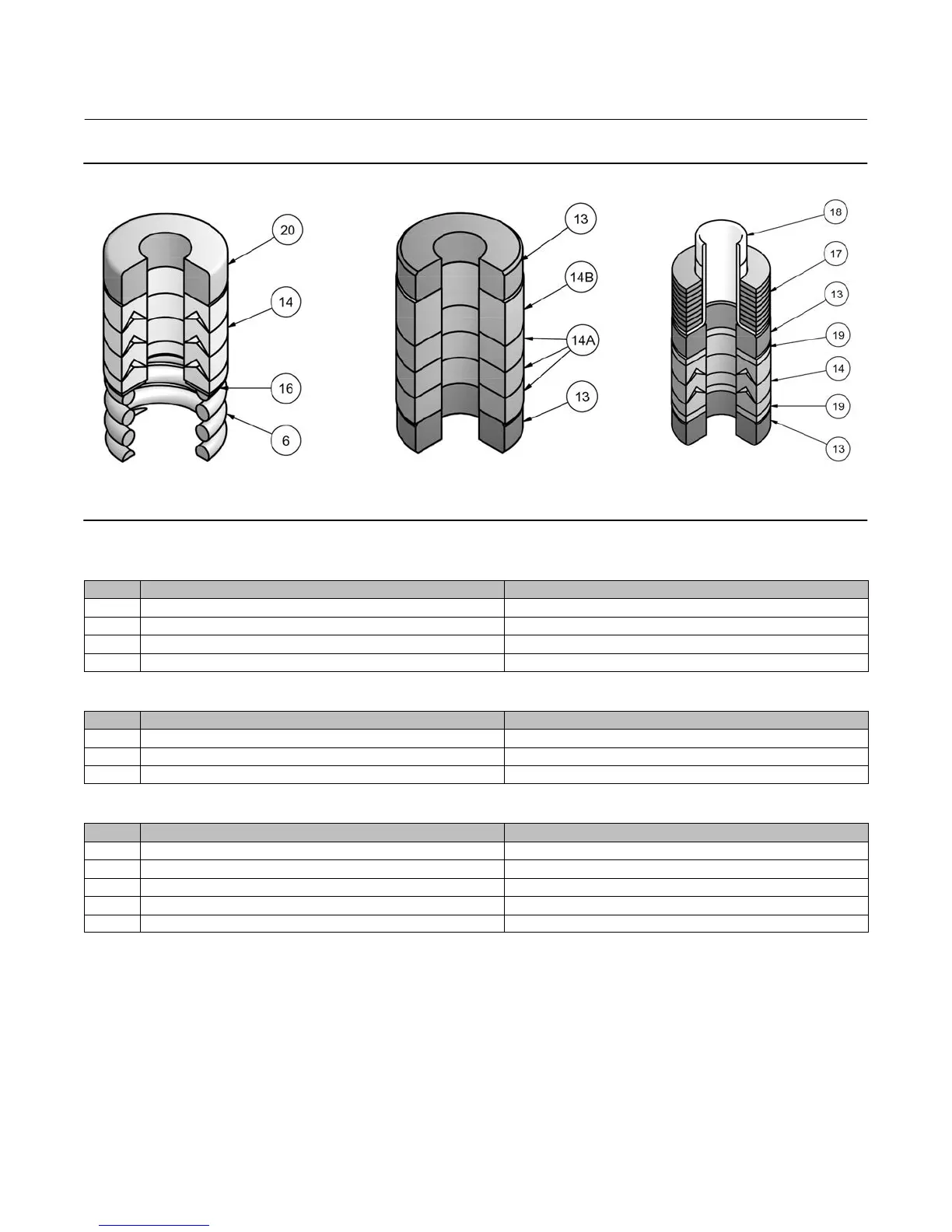

Figure 7. Packing Kits
E1240
Spring-Loaded PTFE
V-Ring Packing Kit
P/N 24494T001
E1241
Molded Graphite (Flexible
Graphite) Packing Kit
P/N 24492T001
E1248
ENVIRO-SEAL
Packing Kit
P/N 24490T001
Table 8. Spring-Loaded PTFE V-Ring Packing Kit P/N 24494T001
Key No. Description Material
6 Spring ASTM A313 S30200
14 Packing Set PTFE / carbon-filled PTFE
16 Washer ASTM A240 S31600
20 Spacer J-2000 (filled PTFE)
Table 9. Molded Graphite (Flexible Graphite) Packing Kit P/N 24492T001
Key No. Description Material
13 Bushing, qty 2 Carbon - Graphite
14A Packing Ring, qty 2 Graphite
14B Packing Ring Graphite
Table 10. ENVIRO-SEAL Packing Kit P/N 24490T001
Key No. Description Material
13 Bushing, qty 2 Carbon Graphite
14 Packing Set PTFE / carbon-filled PTFE
17 Belleville Spring ASTM B637 N07718
18 Bushing PEEK
19 Washer, qty 2 Modified PTFE
