o Take off the top hinge cover on the fridge cabinet.
o Unscrew the fixing bar on the top of the fridge cabinet.
o Remove the top hinge of the fridge door.
o Slide the fixing bar over to the other side of the cabinet and
secure it in this position. Make sure that these screws are fully
tightened.
o Remove the fridge door and gently place it on a cushioned
surface, so that it does not get damaged.
o Take out the two white, plastic blanking caps that are on the
central section of the cabinet, between the fridge and freezer
door.
o Remove the lower hinge of the fridge door.
o Remove the upper hinge of the freezer door.

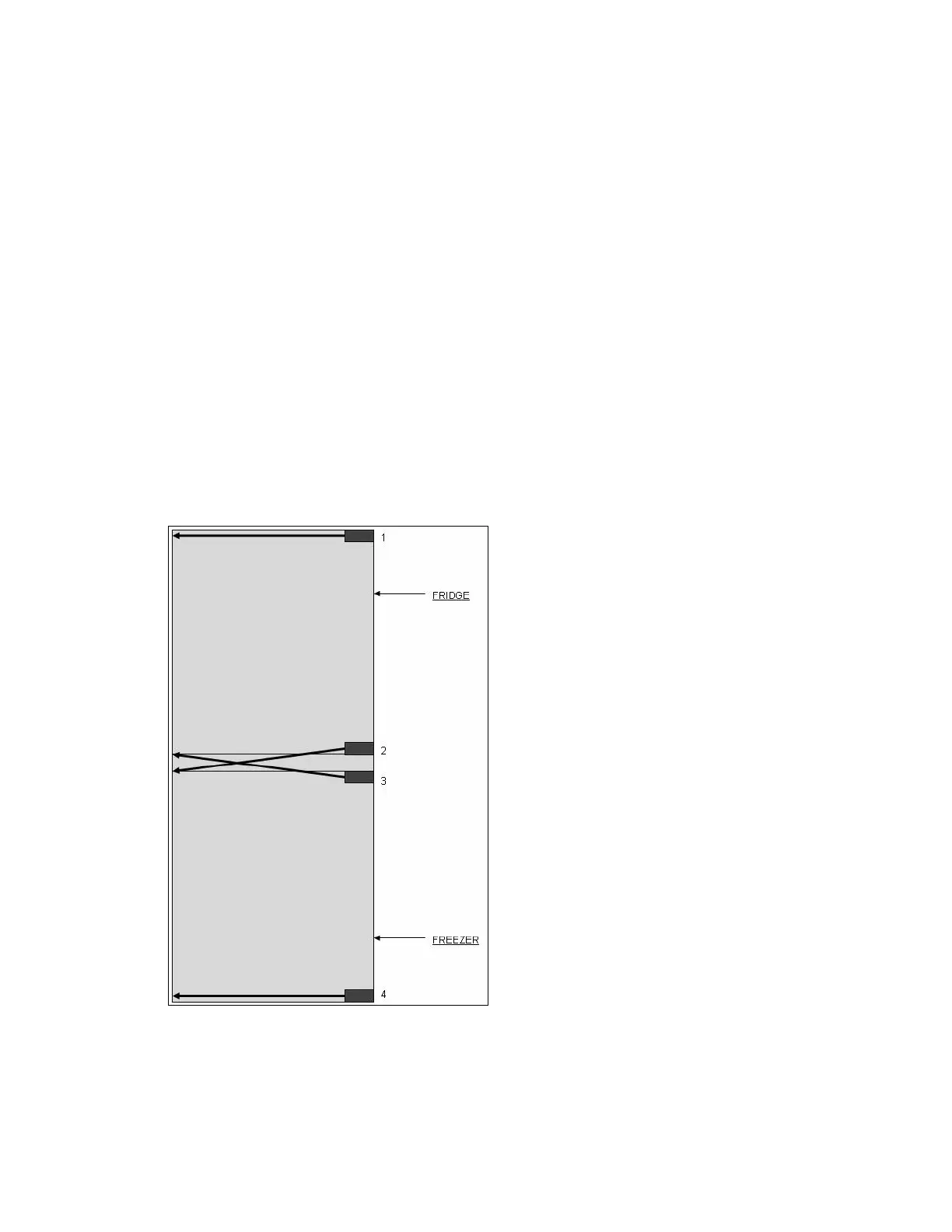

o Swap over the position of
the middle two hinges, as
shown in the diagram
opposite.
o Each hinge will need to be
turned upside down
(turned 180 degrees) from
its original position, before
being secured back on the
cabinet.
o Remove the freezer door and gently place it on a cushioned
surface, so that it does not get damaged.
