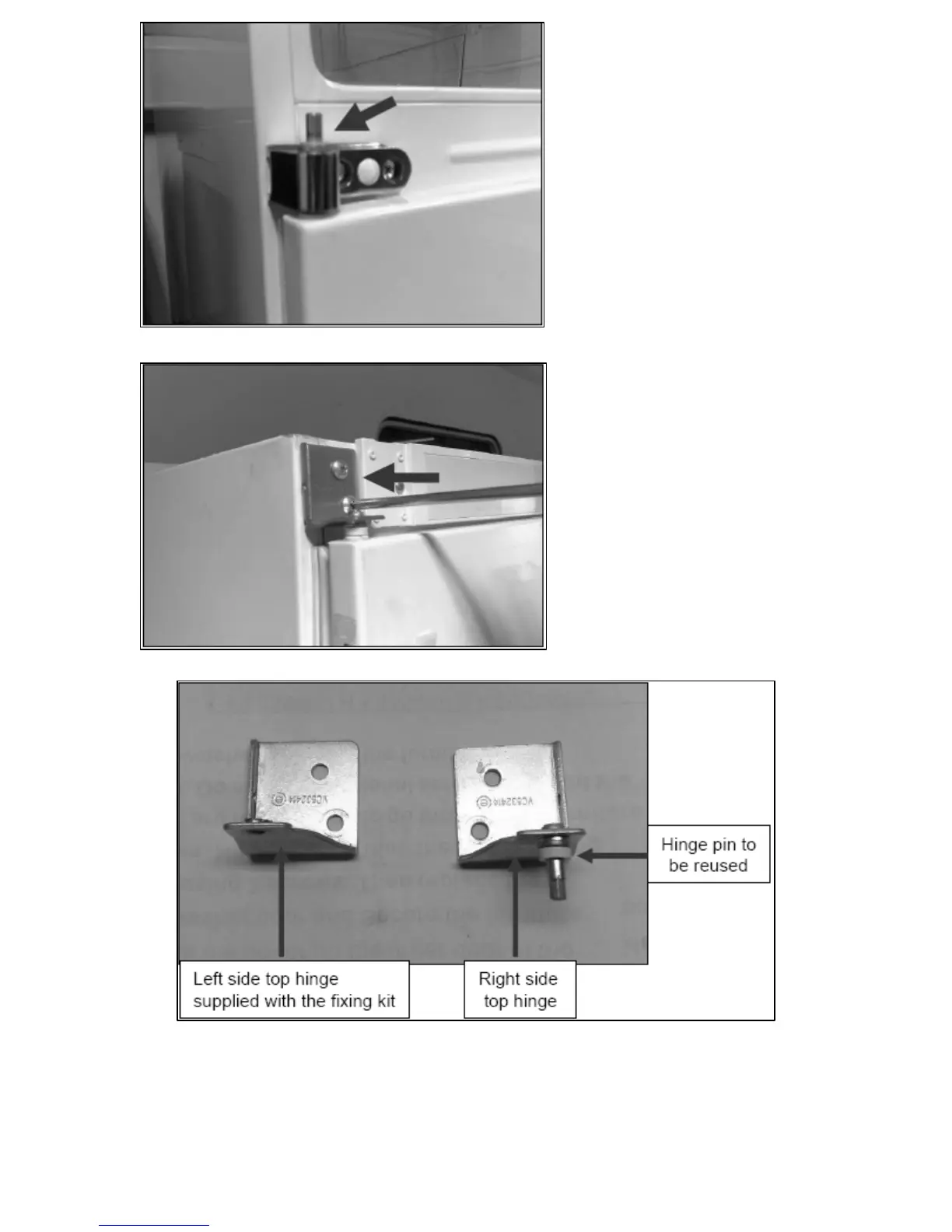

k) Refit the freezer door.
o Reinstall the middle
door hinge on the
opposite side from
its original position.
o IMPORTANT: The
hinge pin should be
fixed in the position
shown in the
photograph
opposite.
l) Refit the refrigerator
door and install the new
door hinge bracket (part
of the fixing kit).
o The above photograph shows the new left side top hinge that is
part of the fixing kit.
o The hinge pin from the original hinge bracket should be utilised.
