o Slacken the retaining screws (1) on the appliance and then
carefully remove the appliance door.
o Place the appliance door on a cushioned surface, so that damage
does not occur to it.
o Lever off the cover caps (3).
o Insert the retaining screws (1) into the opposite side of the
appliance from their original position. These screws should be
partially tightened but not fully tightened.

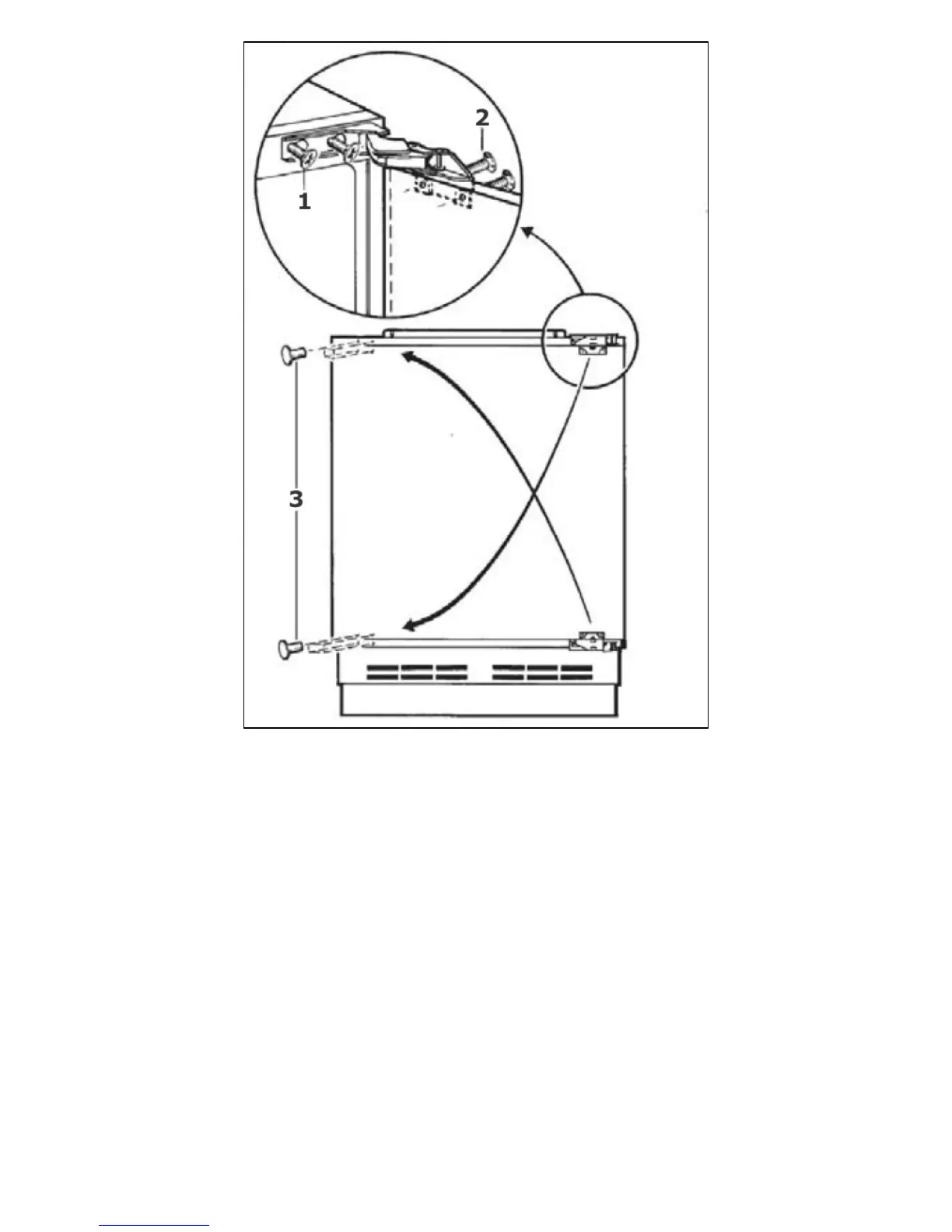

o Remove the door retaining screws (2) and then reverse the
position of the top and bottom hinge (as shown in the above
diagram).
18
