Connecting to external ducting

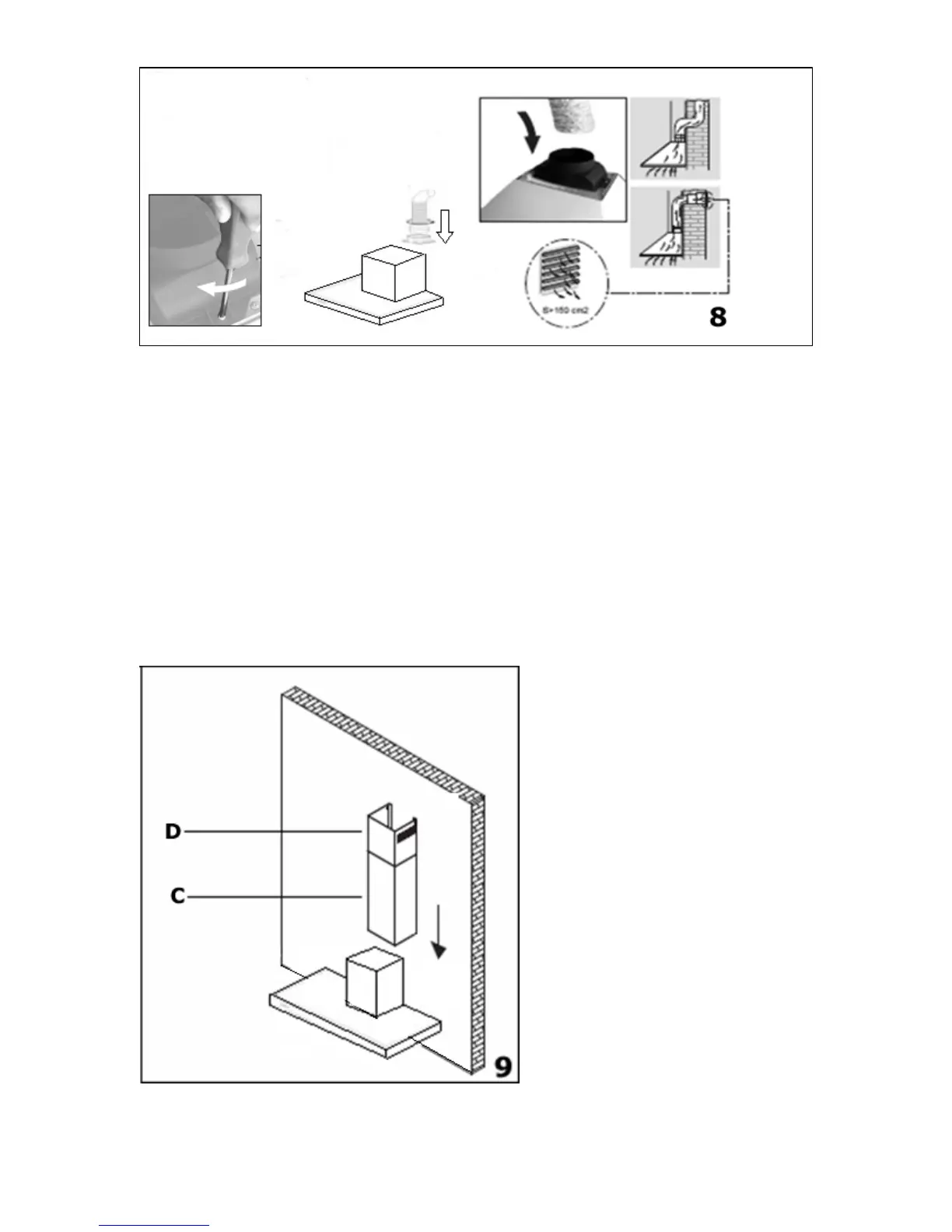

8) Connect the coupling to the top of the cooker hood, and then
connect a 125 mm ducting hose to the coupling (please note that
the ducting hose is not supplied with the appliance).
o The other end of the ducting hose should be connected to a
discharge outlet that is suitable for cooking vapours. It should
have a cross section of at least 150 cm².
o The maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend.
Fitting the chimney
9) Take the two chimney
sections (C and D).
o Rest the bottom of
chimney section C on the
top of the hood. You
should take care to
position the tabs on the
chimney section into the
rear of the hood.
o Mark the side
measurement of both
sides of chimney section C
on the wall with a pencil.
