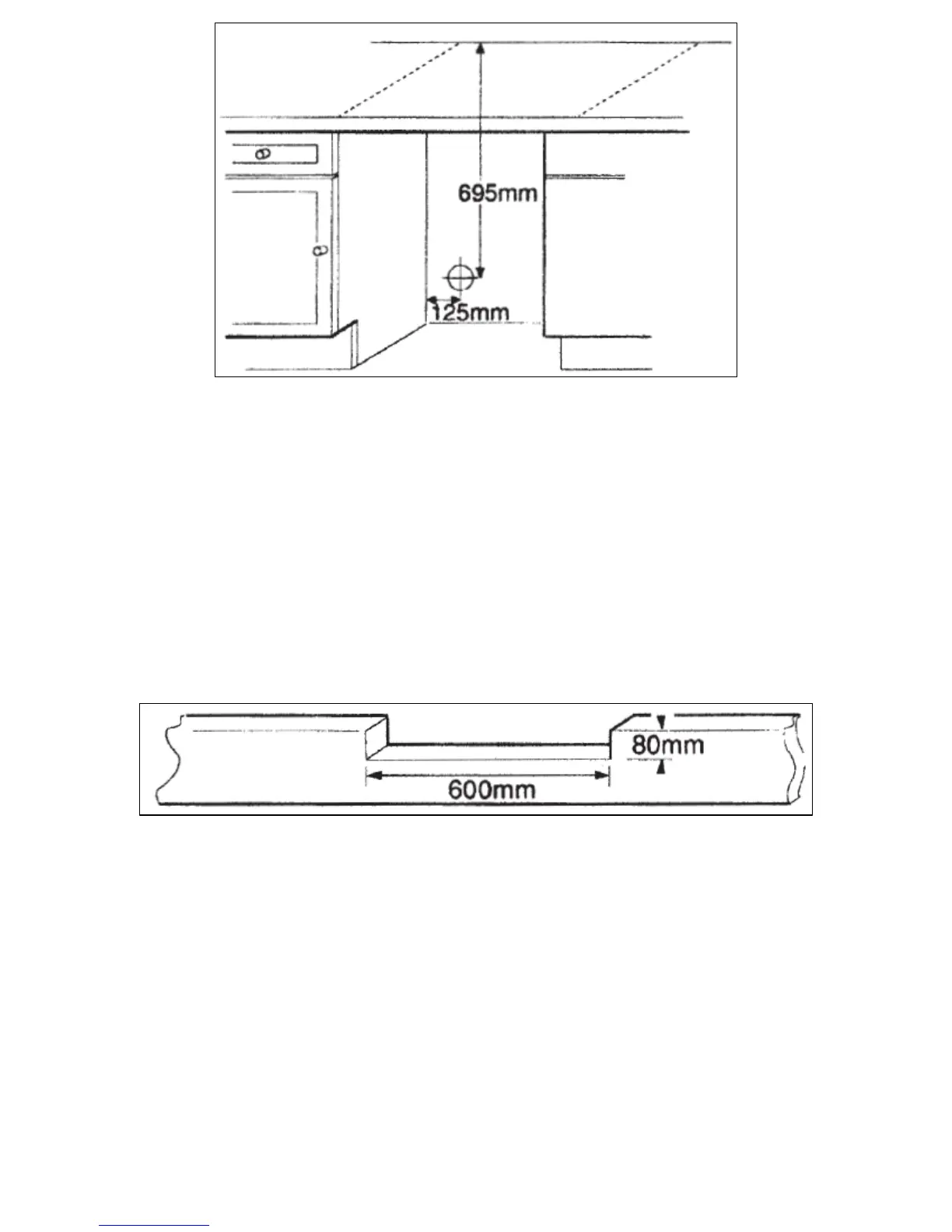

o The vent hole should be positioned 125 mm in from the left
adjacent kitchen unit and 695 mm below the work surface
above.
o If the vent through the wall is to be positioned anywhere else
other than behind the dryer, the vent hose should be located at
floor level and through an adjacent side panel to a suitable
position.
o The plinth must be cut-out to accommodate the air vent grill at
the bottom front of the tumble dryer. The cut-out size required is
shown in the diagram below.
o IMPORTANT: The air vent at the front of the appliance
must never be covered or blocked in any way as this will
cause the dryer to overheat.
