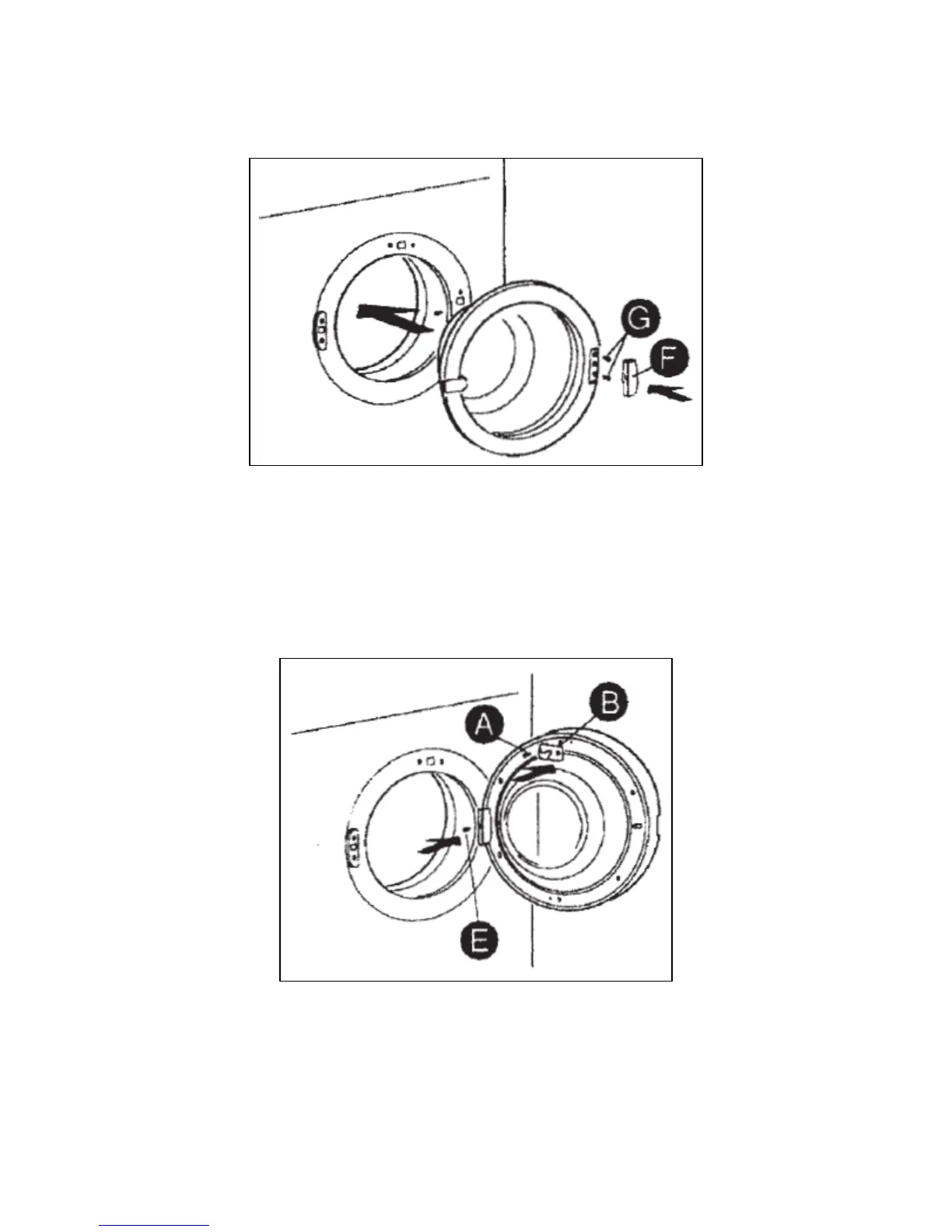

o Pull the hinge cover (F) forwards to remove it.
o Remove the two outer screws (G). Remove the door.
o Fit the latch plate (D) with screws (C).
o Reverse the door and place against the dryer’s doorway so that
it is in the closed position.
o Refit the screws (G) and hinge cover (F).
o Open the door.
o Fit screw (E) to secure the hinge cover.
o Remove the screw (A) at the top of the door and refit strike (B)
as shown in the above drawing.
18
