o Slide the appliance over to the far left of the aperture, unless
you have reversed the door. In which case you should slide
the appliance over to the far right of the aperture.

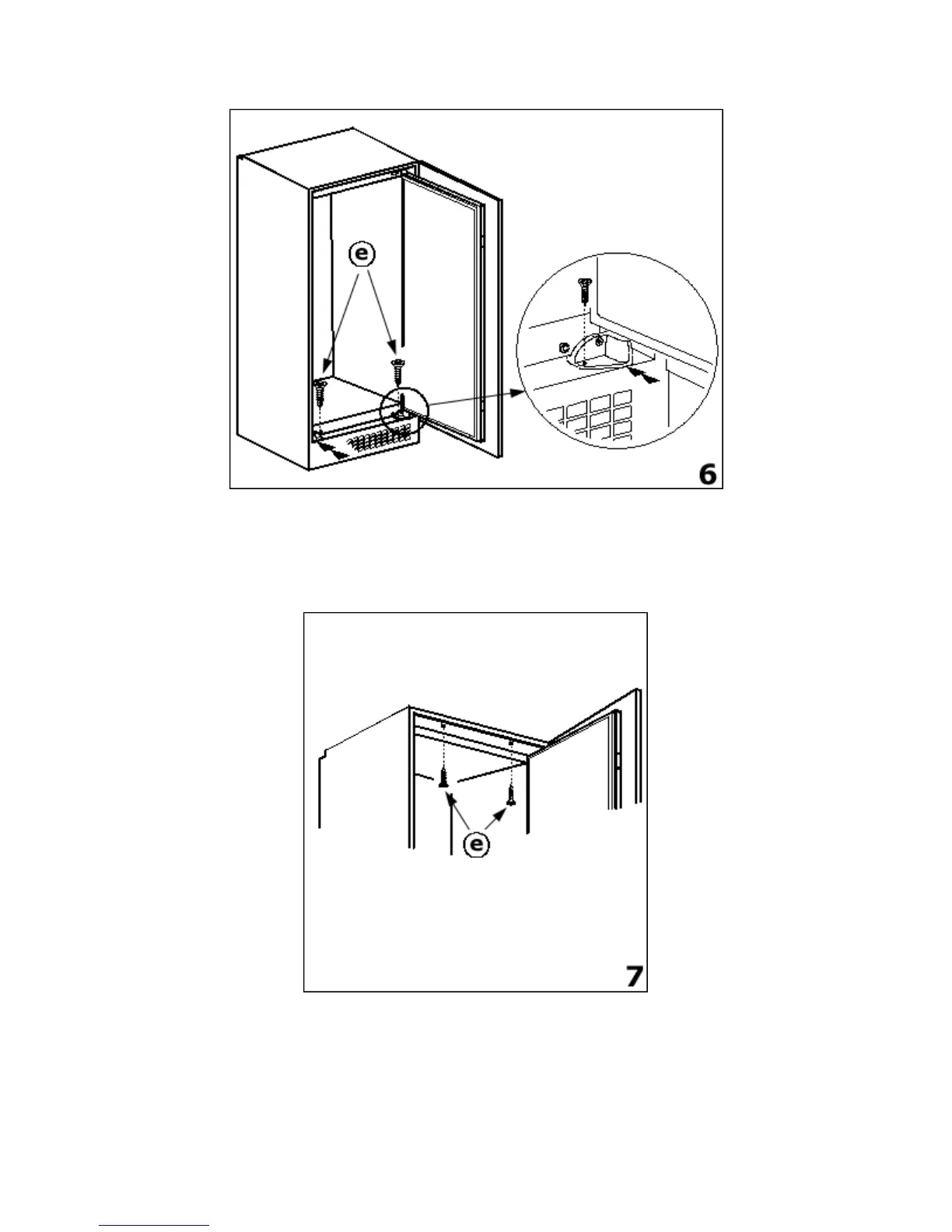

6) Align the front feet of the appliance, with the front edge of the
kitchen unit.
Fix the front feet into position using the Ø4 x 17 fixing screws (e).
7) Screw the top fixing bar to the underneath of the kitchen unit using
the Ø4 x 17 fixing screws (e).
