Baumer LFFS User Manual

Seite 3 Design und Spezifikationen können ohne Ankündigung geändert werden
Installationsanleitung 5850-020www.baumer.com/process

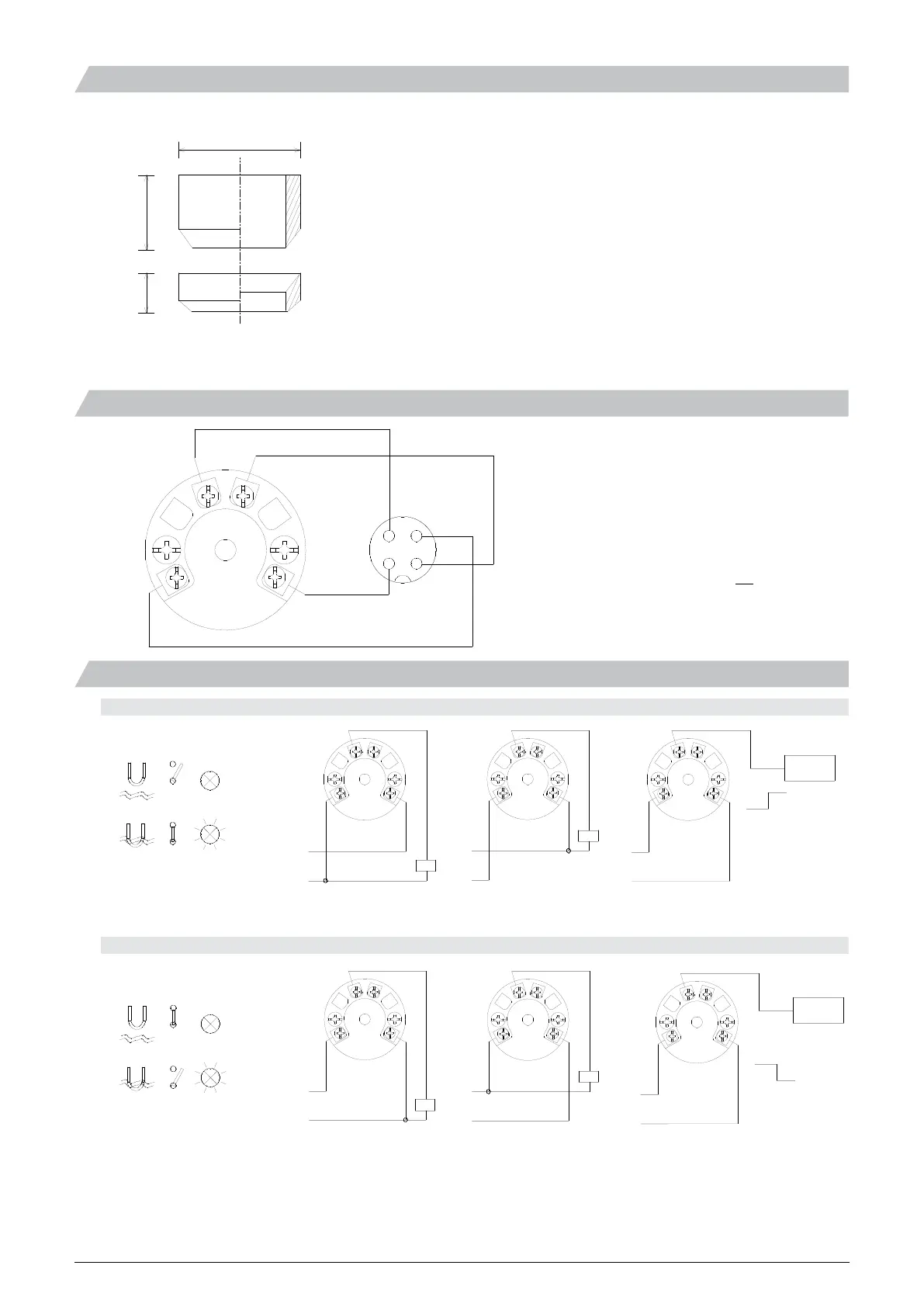

Electrical Installation
12.5...36 VDC
LED
LED
+
-
0 mA
0 mA
50 mA
50 mA
PNP Output
50 mA max.
12.5...36 VDC
+
-
12.5...36 VDC
+
-
12.5...36 VDC
+
-
Active High
PLC
NPN Output
50 mA max.
NPN Output
50 mA max.
12.5...36 VDC
+
-
PNP Output
50 mA max.
Normally Open
Normally Closed
12.5...36 VDC
-
+
Active Low
PLC
Digital Output
50 mA max.
Digital Output
50 mA max.
Electrical Connection
2
- or (+)
1
6
5
3
4
12...36 VDC
+ or (-)
Sensor
Output
Teach-in
Case
M12plug
1
4
2
3
M12 plug: 1: Brown
2: White*
3: Blue
4: Black
*To avoid unintended Teach-In, be aware not to
connect the Teach-In pin or expose it to any electrical
noise during normal operation.
Washer Ring Kit for the Sliding Connection
Mounting instructions:
1) Clean the sliding shaft.
2) Mount the smallest ring against the media as indicated.
3) Tighten the G1/2 Hygienic sliding nipple at 25...30 Nm.
4) Replace the Washer ring kit when one or both parts are perma-
nently deformed or stick to the shaft of the sliding connection.
dia. 19
19
8.7
CAUTION: This end towards the mounting
accessory and the media.
Washer ring kit for sliding connection, Type no. 4401 8001
