2. 12 volt panel
The switches on the 12v panel are numbered. The following list corresponds
with the numbers on the panel and tells you what each switch does.
1. Masthead light
2. Steaming light
3. Sailing navigation lights
4. Deck floodlight
5. Cabin lights and fans
6. Cabin lights and fans
7. Instrument light
8. Navigation instruments
9. Stereo
10. Anchor windlass
11. Bilge pump (leave off; pump is on an automatic float switch). Note that
that the bilge drain also doubles as the fridge drain; see section on
fridges for further information.
12. Fresh water pump
13. Shower drain (fore and aft
14. Holding tanks
15. Secondary bilge pump
16. Fridge
17. 12v outlets and cockpit light
18. GPS and VHF
19. Not in use
20. LPG solenoid

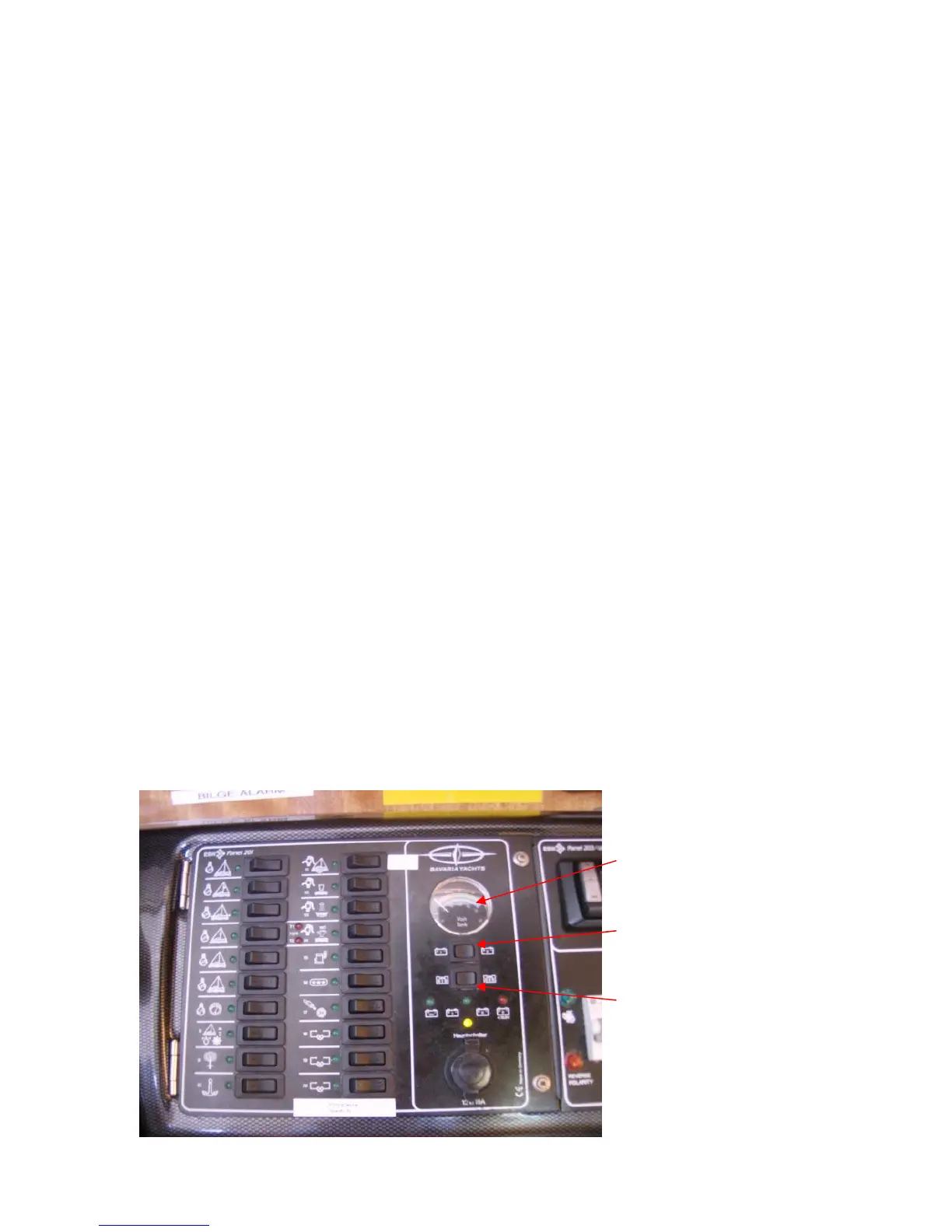

On the right side of the panel there is a gauge with two toggle buttons
beneath it. The top button will give a readout for the engine and domestic
batteries, the bottom switch for the water tank.
Battery and water gauge
oggle switch for battery levels
oggle switch for water tank levels
