2. 12 volt panel
The switches on the 12v panel are numbered. The following list corresponds
with the numbers on the panel and tells you what each switch does.
1. Masthead light
2. Steaming light
3. Sailing navigation lights
4. Deck floodlight
5. Cabin lights and fans
6. Cabin lights and fans
7. Instrument light
8. Navigation instruments
9. Stereo
10. Anchor windlass
11. Bilge pump (leave off, pump is on an automatic float switch)
12. Fresh water pump
13. Shower drain (fore and aft)
14. Holding tanks
15. Secondary bilge pump and fridge drain
16. Fridge
17. 12v outlets and cockpit light
18. GPS and VHF
19. Not in use
20. LPG solenoid
On the right side of the panel there is a gauge with two toggle buttons
beneath it. The top button will give a readout for the engine and domestic
batteries, the bottom switch for the fore and aft water tanks. A more
accurate reading for the batteries is provided on the inverter panel, see next
page for further information.

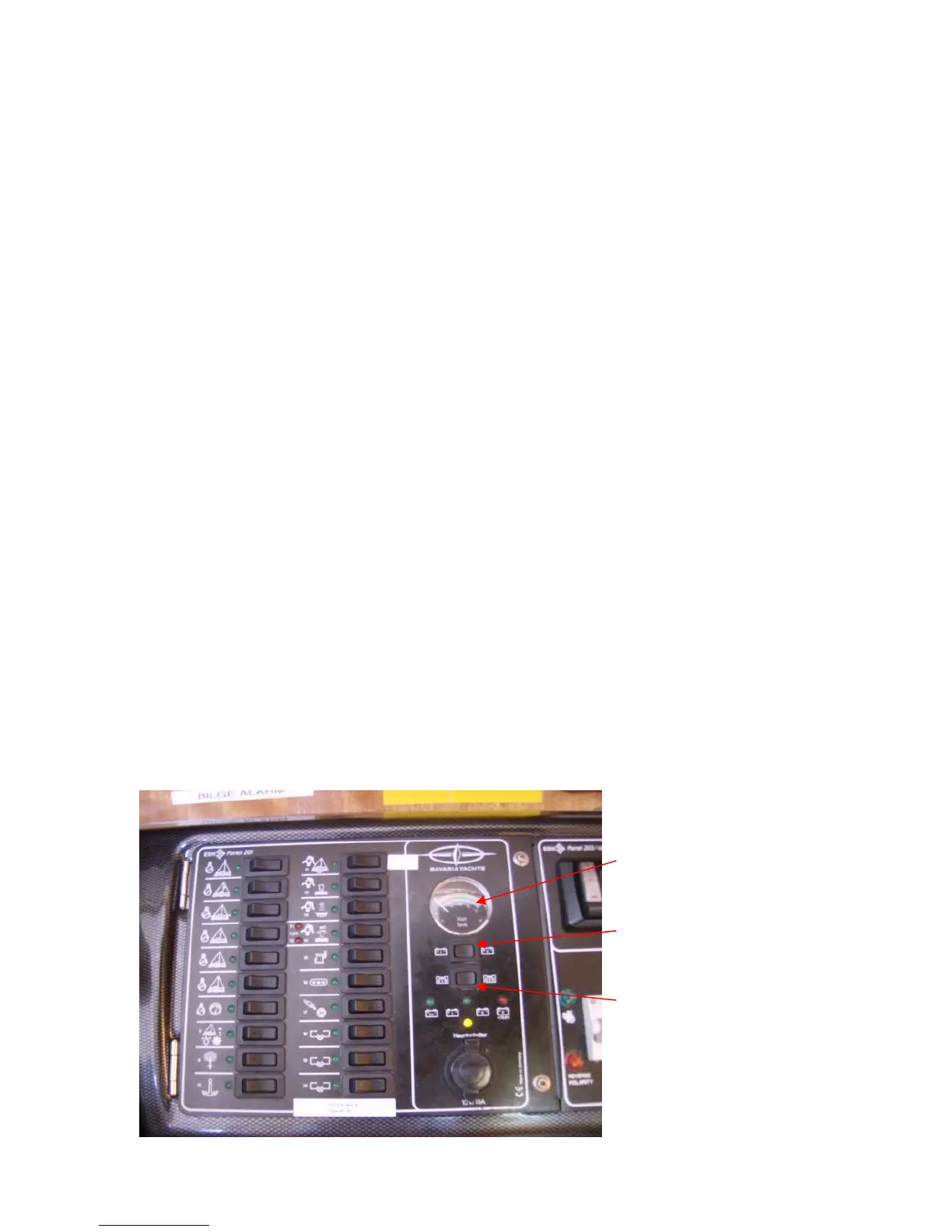

Battery and water gauge
oggle switch for battery levels
oggle switch for water tank levels
