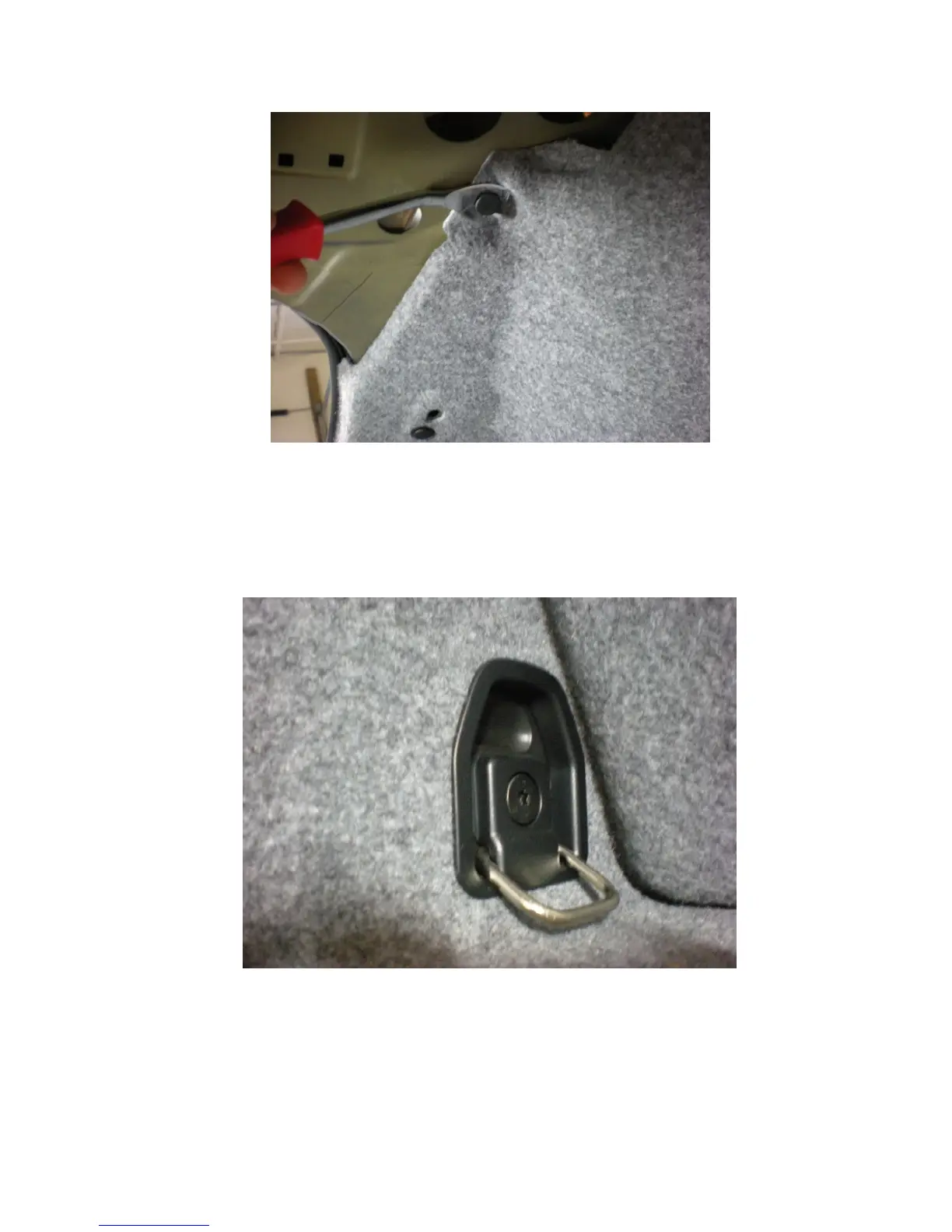

3. With the fasteners removed and placed to the side, we now need to remove the
metal tie down that is located toward the rear of the trunk, closest to the back
seat. It is attached to the chassis using a Torx T40 bolt. This needs to be
removed as well as the plastic housing that surrounds the bolt.
4. With the tie-down removed, we now need to look to the center plastic piece
that sits along the edge of the trunk. It is attached by two (2) Philips head screws
on the top portion, and four (4) plastic fasteners along its bottom rear-facing
panel.
