We’re going to proceed as follows:
1. Disassembling the trunk – locating factory amplifier
2. Deciding on mounting location for the new amplifier
3. Making appropriate wiring connections for audio inputs
4. Power/ground wire connections
5. Installing the subwoofer enclosure
6. Tuning/testing the system
Disassembling the Trunk Panels:
We are only removing the driver side of the carpeted paneling in the trunk. Lift the
floor panel out of the trunk, exposing the bottom edge of the passenger side panel.
There is no need for further disassembly.

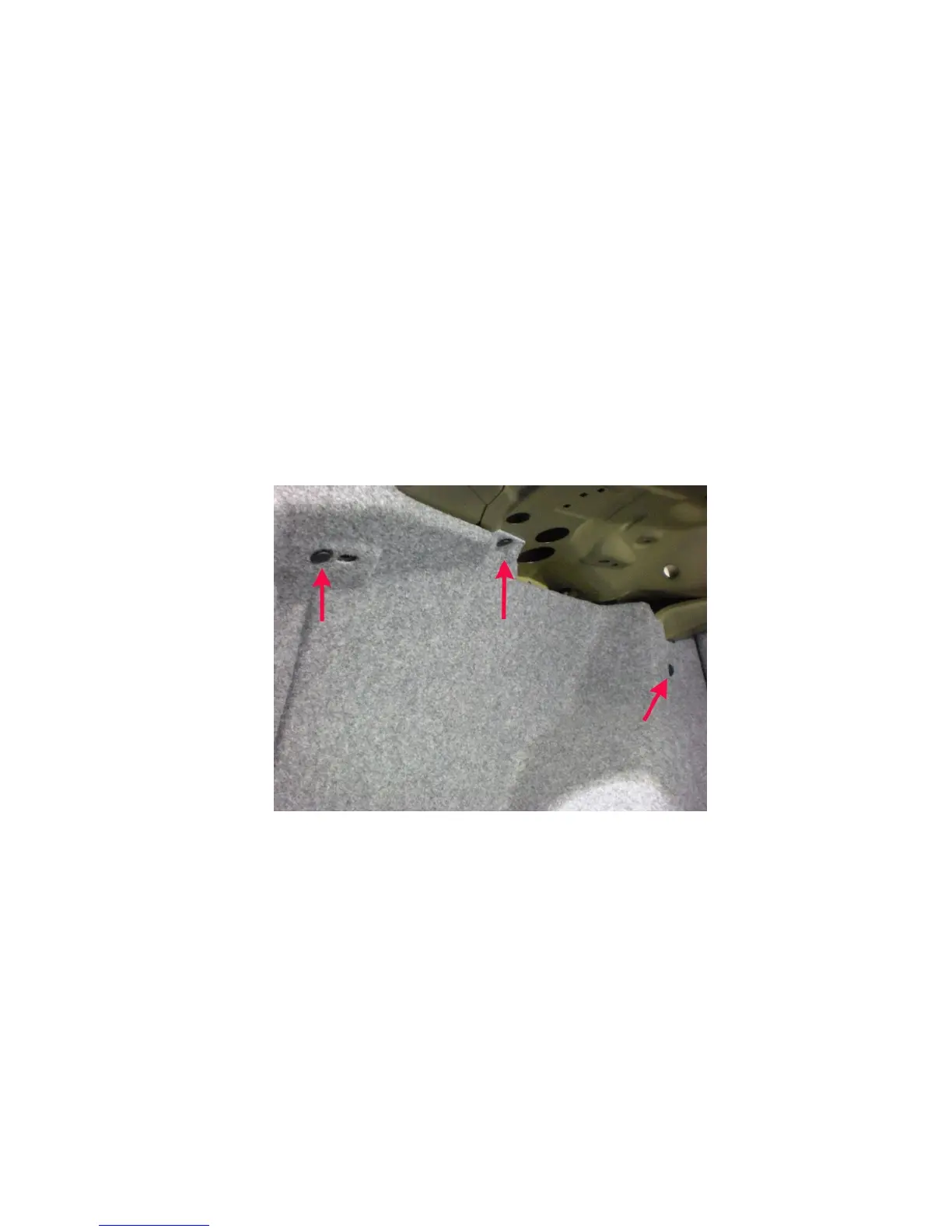

1. Locate the three (3) fasteners that secure the driver side carpeted panel to the
frame of the vehicle.
2. Using your Bavsound Metal panel removal tool, slide the fork of the tool
between the smaller head of the plastic fastener and the larger base, carefully
prying outward to slide the center fastener out of its outer casing. Repeat this
process on all three (3) fasteners.
